Two polarizing sheets have their transmission axes crossed so that no light is transmitted. A third...
Two polarizing sheets have their transmission axes crossed so
that no light is transmitted. A third sheet is inserted so that its
transmission axis makes an angle
with the transmission axis of the first sheet.

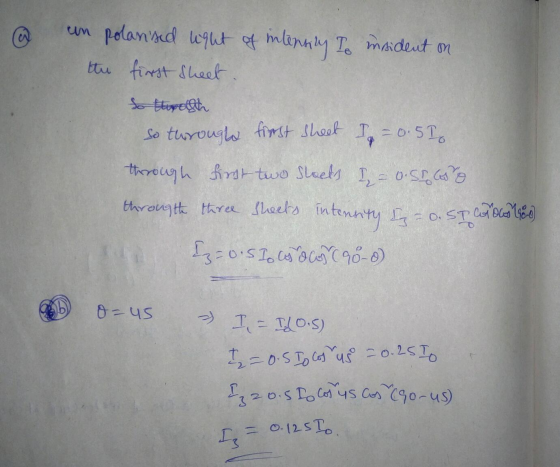

(a)Derive an expression for the intensity of the transmitted
light as a functioin of
.
(b)Show that the intensity transmitted through all three sheets
is maximum when
.
Homework Answers
Add Answer to:
Two polarizing sheets have their transmission axes crossed so
that no light is transmitted. A third...
Two polarizing sheets have their transmission axes crossed so that no light gets through. A third...
Two polarizing sheets have their transmission axes crossed so that no light gets through. A third sheet is inserted between the first two such that its transmission axis makes an angle ? with that of the first sheet. Unpolarized light of intensity I0 is incident on the first sheet. Find the intensity of the light transmitted through all three sheets for the following values of ?. (a) ? = 12° through first sheet ___ I0 through first two sheets ___...
Two polarizing sheets have their transmission axes crossed so that no light gets through. A third...
Two polarizing sheets have their transmission axes crossed so that no light gets through. A third sheet is inserted between the first two so that its transmission axis makes an angle θ with the transmission axis of the first sheet. Unpolarized light of intensity I0 is incident on the first sheet. Suppose that the middle sheet is replaced by two polarizing sheets. The angles between the transmission axes of the second, third and fourth sheets in the stack make angles...
Easy problem 3. Two polarizing sheets have their transmission axes cross so no light can pass...
Easy problem
3. Two polarizing sheets have their transmission axes cross so no light can pass through. I place a third sheet in with it axes at an angle θ with respect to the first sheet. (a) Derive an expression for the intensity of transmitted light through all three sheets as a function of θ. (b) Find the angle for which the transmitted intensity is maximized? 4. Consider four polarizing sheets. The second, third and forth sheets make angles of...
Two polarizing sheets are placed together with their transmission axes at an angle of 68.0° to...
Two polarizing sheets are placed together with their transmission axes at an angle of 68.0° to each other. A third sheet is inserted between them with its transmission axis at an angle of 34.0° with respect to each of the other axes. Find the fraction of incident unpolarized light intensity transmitted by the three-sheet combination. (Assume each polarizing sheet is ideal.)
Three perfectly polarizing sheets are spaced 2 cm apart and in parallel planes. The transmission axis...
Three perfectly polarizing sheets are spaced 2 cm apart and in parallel planes. The transmission axis of the second sheet is 30 degrees relative to the first one. The transmission axis of the third sheet is 90 degrees relative to the first one. Unpolarized light impinges on the first polarizing sheet. What percent of this light is transmitted out through the third polarizer?
Three polarizing sheets are placed together such that the transmission axis of the second sheet is...
Three polarizing sheets are placed together such that the transmission axis of the second sheet is oriented at 25 deg to the axis of the first, whereas the transmission axis of the third sheet is oriented at 60 deg (in the same sense) to the axis of the first. What fraction of the intensity of an incident unpolarized beam is transmitted by the combination? Fraction of the intensity of an incident unpolarized beam transmitted =
Three perfectly polarizing sheets are spaced 2 cmcm apart and in parallel planes. The transmission axis...
Three perfectly polarizing sheets are spaced 2 cmcm apart and in parallel planes. The transmission axis of the second sheet is 26 ∘∘ relative to the first one. The transmission axis of the third sheet is 90∘∘ relative to the first one. Unpolarized light impinges on the first polarizing sheet. Part A What percent of this light is transmitted out through the third polarizer? Express your answer using two significant figures.
Question 9 10 pts Unpolarized light passes through two Polaroid sheets. The transmission axis of the...
Question 9 10 pts Unpolarized light passes through two Polaroid sheets. The transmission axis of the second polarizing filter makes an angle of 43° with the axis of the first polarizer. What fraction of the original unpolarized light is transmitted through the second polarizing filter? Your answer should be a number with three decimal places. Polarizing filter * than st Axis Polarizing filter 0.267 Question 10 10 pts If you have completely polarized light of 199 W/m², what will its...
Two polaroid sheets are inserted between two other polaroid sheets which have their transmission directions crossed...
Two polaroid sheets are inserted between two other polaroid sheets which have their transmission directions crossed so that the angle between each successive pair of sheets is 30 degrees. Find the transmitted intensity if the original light is unpolarized with intensity Io=40.0 W/m^2 a.15 b. 20 c. 8.44 d. 6.33 e. 11.3
Unpolarized light of intensity 900 W/m2 is incident on two ideal polarizing sheets that are placed...
Unpolarized light of intensity 900 W/m2 is incident on two ideal polarizing sheets that are placed with their transmission axes perpendicular to each other. An additional polarizing sheet is then placed between the two, with its transmission axis oriented at 30° to that of the first. 1) What is the intensity of the light passing through the stack of polarizing sheets? (Express your answer to two significant figures.) W/m2 Submit You currently have 0 submissions for this question. Only 10...
Easy problem
3. Two polarizing sheets have their transmission axes cross so no light can pass through. I place a third sheet in with it axes at an angle θ with respect to the first sheet. (a) Derive an expression for the intensity of transmitted light through all three sheets as a function of θ. (b) Find the angle for which the transmitted intensity is maximized? 4. Consider four polarizing sheets. The second, third and forth sheets make angles of...
Three polarizing sheets are placed together such that the transmission axis of the second sheet is oriented at 25 deg to the axis of the first, whereas the transmission axis of the third sheet is oriented at 60 deg (in the same sense) to the axis of the first. What fraction of the intensity of an incident unpolarized beam is transmitted by the combination? Fraction of the intensity of an incident unpolarized beam transmitted =
Question 9 10 pts Unpolarized light passes through two Polaroid sheets. The transmission axis of the second polarizing filter makes an angle of 43° with the axis of the first polarizer. What fraction of the original unpolarized light is transmitted through the second polarizing filter? Your answer should be a number with three decimal places. Polarizing filter * than st Axis Polarizing filter 0.267 Question 10 10 pts If you have completely polarized light of 199 W/m², what will its...
Unpolarized light of intensity 900 W/m2 is incident on two ideal polarizing sheets that are placed with their transmission axes perpendicular to each other. An additional polarizing sheet is then placed between the two, with its transmission axis oriented at 30° to that of the first. 1) What is the intensity of the light passing through the stack of polarizing sheets? (Express your answer to two significant figures.) W/m2 Submit You currently have 0 submissions for this question. Only 10...
