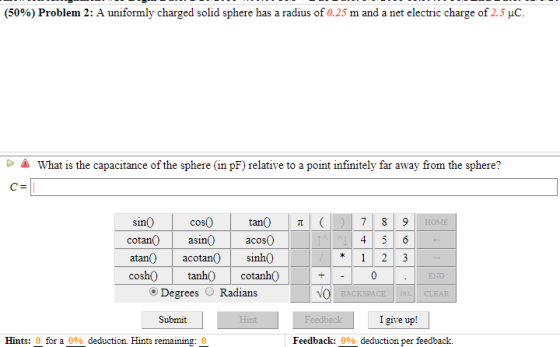

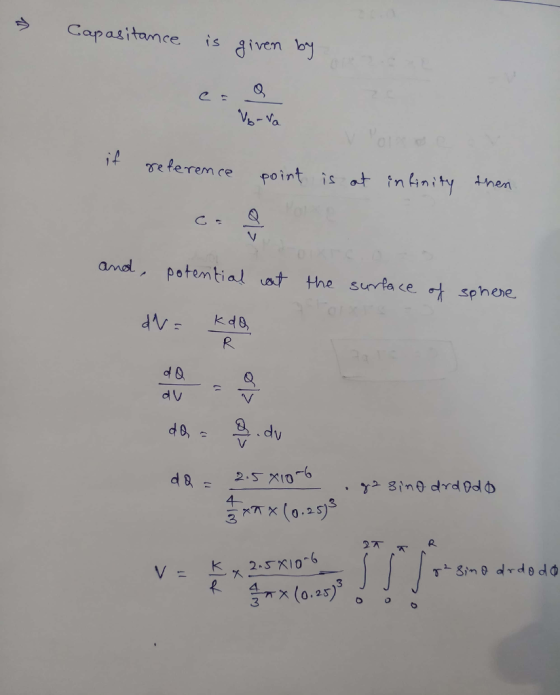

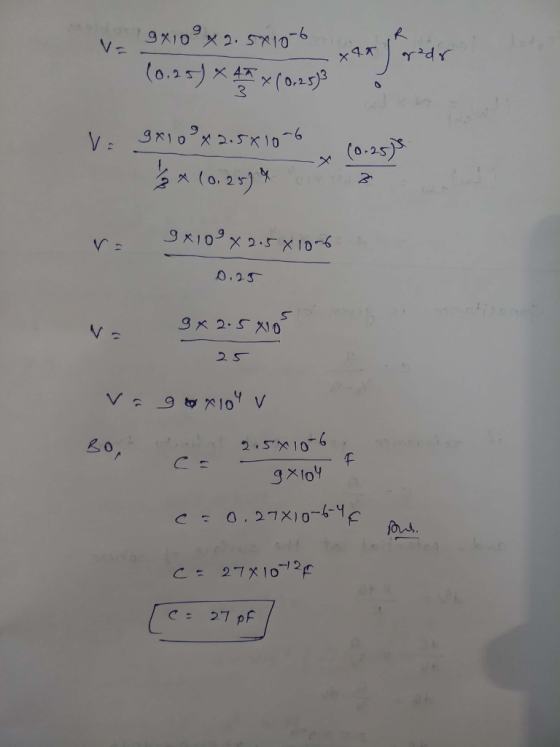

A uniformly charged solid sphere has a radius of 0.25 m and a
net electric charge of 2.5 μC.What is the capacitance of the sphere
(in pF) relative to a point infinitely far away from the
sphere?
