P3. Using the circuit below to design the inverting amplifier having a gain of -10 and input resistance of 100 kΩ. Give the values of R1. 2 do

engineering   Electrical-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

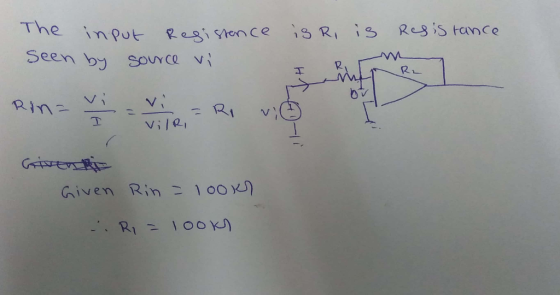

The in Seen by soco v 2. Given Rin 100 )d)

0 0
Add a comment
Know the answer?
Add Answer to:
P3. Using the circuit below to design the inverting amplifier having a gain of -10 and...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • Assuming an ideal op-amp, design an inverting amplifier with a gain of 26 dB

    Assuming an ideal op-amp, design an inverting amplifier with a gain of 26 dB having the largest possible R1 value under the constraint of having to use resistors no larger than 1 MΩ. If the input voltage source of this amplifier has an internal resistance r0 = 50 kΩ, how will this affect the gain? Design a solution that will eliminate the effect of the internal source resistance without having to change the values of R1 and R2.

  • 2, Design a variable gain amplifier using an inverting circuit and a 10 ΚΩ potentiometer. It...

    2, Design a variable gain amplifier using an inverting circuit and a 10 ΚΩ potentiometer. It is desired to control the gain within the limits of-10 and -50.

  •                                           &nb

                                                                                        Please solve all for me Q1. An inverting amplifier circuit design has an input resistance R1 = 10 kΩ, and feedback resistance R2 = 25 kΩ and an input voltage source VS = 0.5V. Sketch the circuit diagram and find the voltage gain Av in dB, output voltage vo, input source current is, feedback current i2, and output current io of the amplifier circuit. What is the operating bandwidth of this amplifier circuit? Q2. Design an inverting amplifier circuit...

  • 5.8 a) Design an inverting amplifier with a gain of 4. Use an ideal op amp,...

    5.8 a) Design an inverting amplifier with a gain of 4. Use an ideal op amp, a resistor in the feedback path, and 12 V power supplies. b) Using your design from part (a), determine the range of input voltages that will keep the op amp in its linear operating region. c) Suppose you wish to amplify a 2 V signal, using your design from part (a) with a variable feedback resistor. What is the largest value of feedback resistance...

  • 2. Design a non-inverting op-amp circuit with two resistors under the following conditions: a. The gain of the ampl...

    2. Design a non-inverting op-amp circuit with two resistors under the following conditions: a. The gain of the amplifier must be +10 b. The input range is ± 2V c. The total power consumed by the resistors must be less than 100 mW Show all the calculations required to design the amplifier circuit with the shown specifications.in details Use MULTISIM to create the op-amp circuit and print a fully labelled diagram of the circuits with the voltmeters displays showing both...

  • A. Design one circuit: Including power supply values and connections. 1-Design a non-inverting am...

    A. Design one circuit: Including power supply values and connections. 1-Design a non-inverting amplifier with a gain of +11 V/V (+/- 10%) with an input of 0.5 V sin(2pi 200t). 2-Design an inverting amplifier with a gain of -22 V/V (+/- 10%) with an input of 0.12 V sin(2pi500t) 3-Design a 555 time astable with a 1 Hz output to an LED load 4-Design a single stage low-pass filter with a cutoff frequency of 300 Hz.

  • 15. Design an inverting amplifier to have a gain of 20 using the MCP6021 and a...

    15. Design an inverting amplifier to have a gain of 20 using the MCP6021 and a single +5 V supply. What will be the typical 3-dB bandwidth of the amplifier?

  • Sketch the circuit diagram for an inverting amplifier, and give component values that will produce a...

    Sketch the circuit diagram for an inverting amplifier, and give component values that will produce a gain of 500. The op-amp has a supply voltage of ± 15 V. What is the input signal range that will avoid saturation? Show how the inverting amplifier circuit can be modified to provide gain to only the difference in voltage between two inputs signals, and give component values to make this differential gain equal to 500. If the common-mode rejection ratio (CMRR) for...

  • Sketch the circuit diagram for an inverting amplifier, and give component values that will produce a...

    Sketch the circuit diagram for an inverting amplifier, and give component values that will produce a gain of 500. The op-amp has a supply voltage of ± 15 V. What is the input signal range that will avoid saturation? Show how the inverting amplifier circuit can be modified to provide gain to only the difference in voltage between two inputs signals, and give component values to make this differential gain equal to 500. If the common-mode rejection ratio (CMRR) for...

  • Design an inverting amplifier to have a gain of 20 using the LMV358 and a single...

    Design an inverting amplifier to have a gain of 20 using the LMV358 and a single +5 V supply. What will be the typical 3-dB bandwidth of the amplifier? AND Compare the typical (a) gain bandwidth product and (b) slew rate of the LMV358 and the LM358?
