1. [15] Consider the schematic below. a) [5] What Boolean function does the circuit implement? b)...

Question

Question

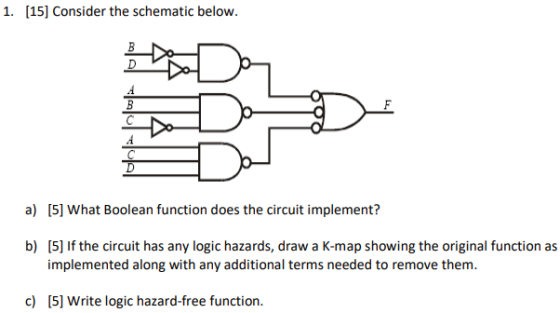

1. [15] Consider the schematic below. a) [5] What Boolean function does the circuit implement? b) (5) If the circuit has any

engineering Electrical-Engineering

Add a comment Improve this question Transcribed image text

Answer 1

Answer #1

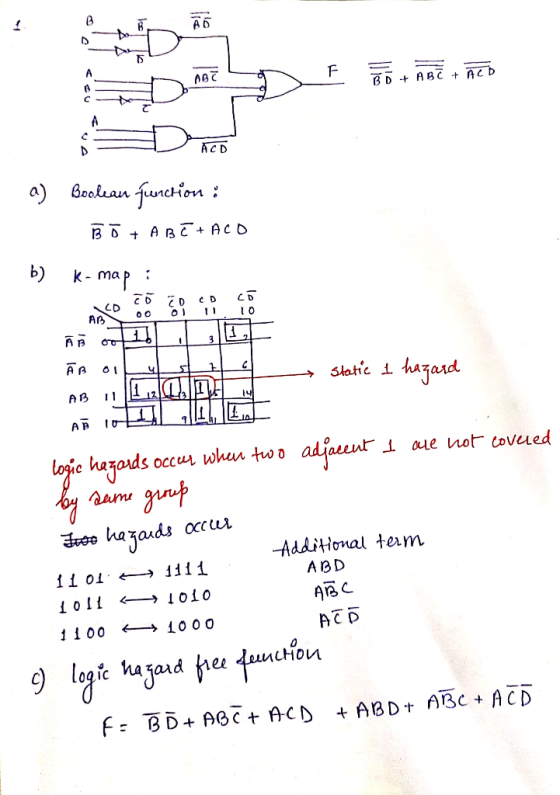

Dona D F To + norē + mo a) Boolean Junction : BO + A B C + ACO b) K-map : static I hazard ão olhat Añ 11 ICE AB logic hazards

Add a comment

Answer 2

Similar Homework Help Questions

3. Consider the following Boolean function. F(A, B, C, D)-(0, 1, 6, 7, 12, 13) a....

3. Consider the following Boolean function. F(A, B, C, D)-(0, 1, 6, 7, 12, 13) a. Using K-map, simplify F in S.O.P. form b. What is the gate input count in (a)? c. Draw the logic circu in (a) d. Simply F using K-map in P.O.S. form. c. What is the gate input count in (d)? f. What should be your choice in terms of gate input count? 4. In our class, we implemented a BCD-to-Segment Decoder a. Draw Truth...
Multiplexer Example Implement the following Boolean function using a 4x1 Mux;

Multiplexer Example Implement the following Boolean function using a 4x1 Mux; F(x,y,z) = Σ (1,2,6,7) Decoder Example Implement the following functions for a full adder using decoder; S(x,y,z) = Σ (1,2,4,7) C(x,y,z) = Σ (3,5,6,7) Implement the following Boolean function; F(x,y,z) = Σ (0,2,3,7): Using; 1. Two 2x4 decoders and logic gates 2. One 4x1 multiplexer Decoder . Draw the truth table for the function to be implemented. . Pick the terms for output. . Derive appropriate logic to combine terms. . Use two 2x4 decoders to make one3x8 decoder. . Pay attention to fact...
There are two multiplexers in the following circuit. The three ports A, B, C are inputs,...

There are two multiplexers in the following circuit. The three ports A, B, C are inputs, and s) uput(1) Write a truth table for the logic function Y F(A, B, C) of the following cirouit (2) ne inimized Boolean equation for the logic function. B C 01 10 ground P. (5 pts). Use a decoder to implement the following Boolean logic function: Y= AB+AC. Draw schematic of your circuit.

Implement the Boolean function F(w,x,y,z) = Σm(3, 4, 5, 1 1, 12, 13, 14, 15) using a minimum number of NAND gates only.

Implement the Boolean function F(w,x,y,z) = Σm(3, 4, 5, 1 1, 12, 13, 14, 15) using a minimum number of NAND gates only. Write the minimal logic expression (no need to draw the circuit).
Consider the following logic: F = ΣW,X,Y,Z (0x1, 0x5, 0x8, 0xA, 0xB, 0xC, 0xE, 0xF). And...

Consider the following logic: F = ΣW,X,Y,Z (0x1, 0x5, 0x8, 0xA, 0xB, 0xC, 0xE, 0xF). And 0x2, 0x4 and 0x6 are “don't care” cases. a) Draw a K-map and write a minimized SOP expression for this circuit. Include grouping circles for a minimized SOP expression. b) Draw the minimized SOP circuit using only NAND gates. c) Are there any static hazards? If so, write the Boolean expression to resolve any static hazards?
Please answer every part 1) Six Transistor CMOS Logic Circuit, Z-output; A, B, C are the inputs. 15 pts The three P-devices are connected as follows: Q2S-5V; Q2D-Q4S Q6S; Q4D-Q6D-Z. The three N-devic...

Please answer every part 1) Six Transistor CMOS Logic Circuit, Z-output; A, B, C are the inputs. 15 pts The three P-devices are connected as follows: Q2S-5V; Q2D-Q4S Q6S; Q4D-Q6D-Z. The three N-devices are connected as follows: QiS-GND Q3D-Q5S Q3S GNDQID-Q5D-Z The three inputs are connected as follows: A-QIG-Q2G; B-Q3G-Q4G; C Q5G Q6G. a) Draw the CMOS circuit. 3 pts b) Draw the function table for the three inputs, the six transistors and the output, Ζ. Use 0 for an...

digital logic & design questions 1. Find the output function of this circuit, X. B C...

digital logic & design questions 1. Find the output function of this circuit, X. B C 2. Use k-map to simplify the function X to its minimum Sum Of Product (SOP Draw the logic circuit of the simplified function X using the 74LS54 And Or Invert (AOD chip. 3. 74LSS4 Problem#4: The logic circuit in (a) is implemented using a 7400 IC chip. The conections on is not working properly! the problem is in the IC connections or in the...
Please answer every part 1) Six Transistor CMOS Logic Circuit, Z-output; A, B, C are the...

Please answer every part 1) Six Transistor CMOS Logic Circuit, Z-output; A, B, C are the inputs. 15 pts The three P-devices are connected as follows: Q2S-5V; Q2D-Q4S Q6S; Q4D-Q6D-Z. The three N-devices are connected as follows: QiS-GND Q3D-Q5S Q3S GNDQID-Q5D-Z The three inputs are connected as follows: A-QIG-Q2G; B-Q3G-Q4G; C Q5G Q6G. a) Draw the CMOS circuit. 3 pts b) Draw the function table for the three inputs, the six transistors and the output, Ζ. Use 0 for an...
A combination circuit is specified by the following Boolean functions listed below. h(a, b, c) = b,c' + a'c Implement the circuit with a 3x8 decoder. Provide truth table and drawing the l...

A combination circuit is specified by the following Boolean functions listed below. h(a, b, c) = b,c' + a'c Implement the circuit with a 3x8 decoder. Provide truth table and drawing the logic/circuit diagram. Use the block diagram for the decoder provided in Figure A4 in supplements. Please label the inputs and outputs clearly. Note: use single 3x8 decoder Question 2 (15 points] A priority encoder is an encoder circuit that includes the Truth Table of a priority function. The...

Question 2: Combinational Logic (15 points) Implement the following Boolean function Z(A,B,C,D) = {(1,2,5,7,8,10,11,13,15) 2.1 (5...

Question 2: Combinational Logic (15 points) Implement the following Boolean function Z(A,B,C,D) = {(1,2,5,7,8,10,11,13,15) 2.1 (5 points) Write the truth table for Z. 2.2 (5 points) Implement Z using a single 16:1 multiplexer. Make sure that you mark all inputs and outputs clearly. 2.3 (5 points) Implement Z using an 8:1 multiplexer and all necessary gates. Make sure that you mark all inputs and outputs clearly.
