Question

1. Make a Process flow Diagram from the image.

2. Make a Block Diagram from the image.

3. Explain / Discuss the process in paragraph form.

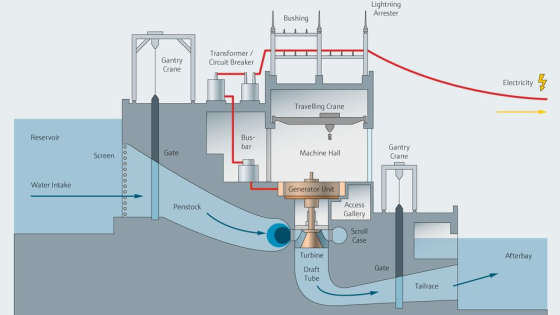

FROM WATER TO ELECTRICITY.

Lightning Arrester Bushing Transformer / Circuit Breaker Gantry Crane Electricity Travelling Crane Bus Gantry Crane Reservoir Machine Hall Gate Screen Generator Unit Water Intake 0 Access Gallery Penstock Scroll Case Afterbay Turbine Gate Draft Tube Tailrace

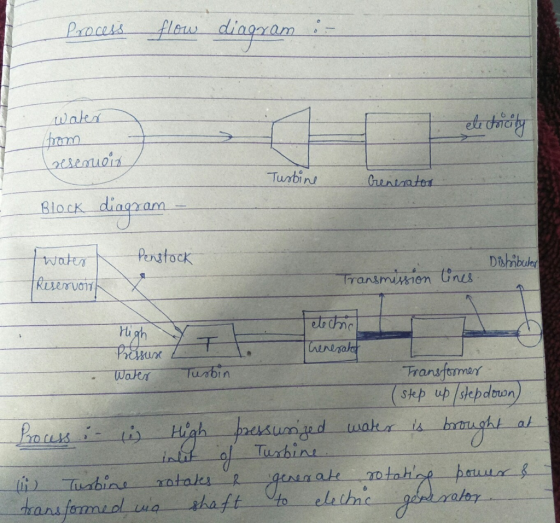

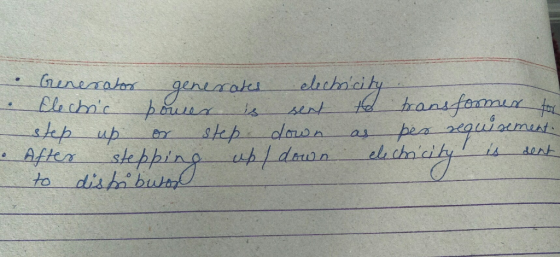

Answer 1
