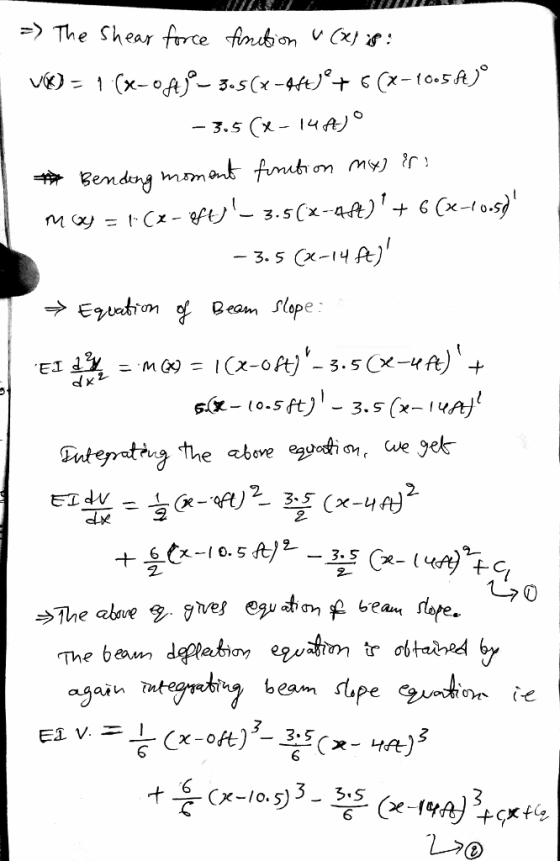

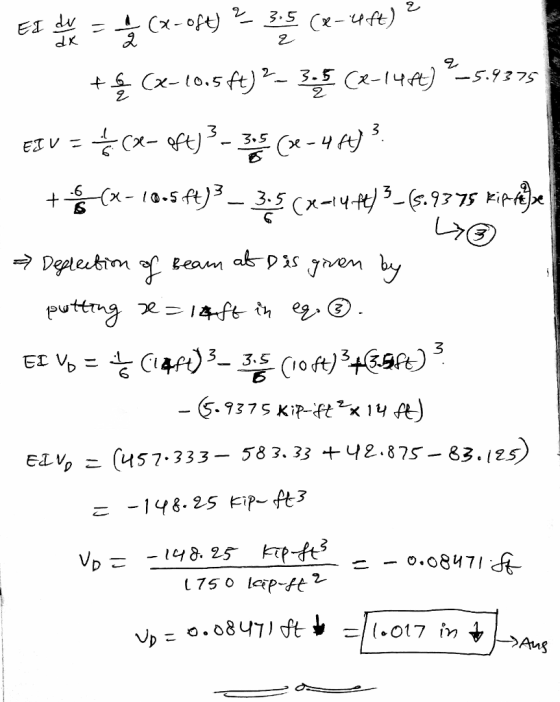

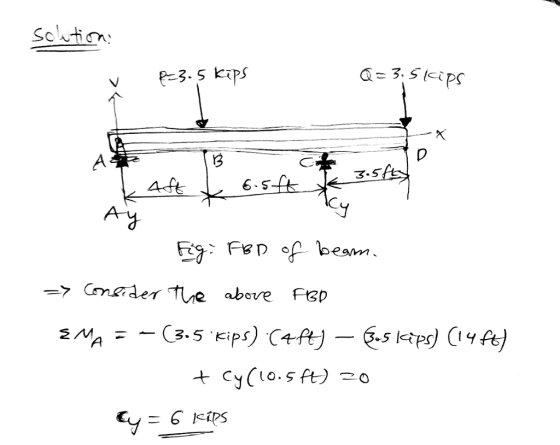

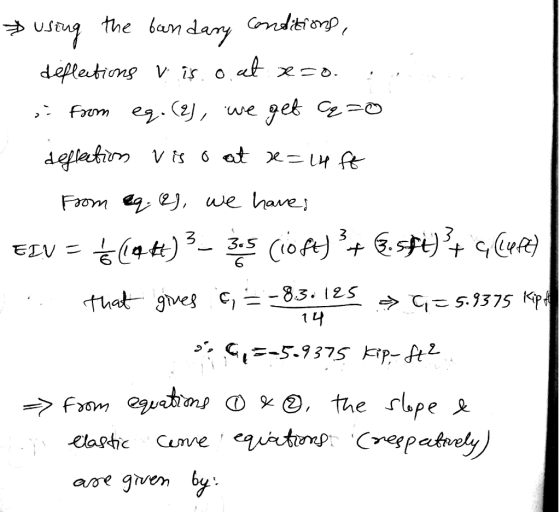

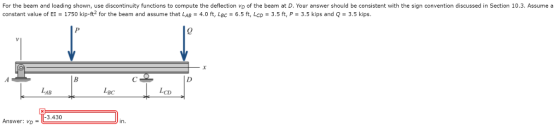

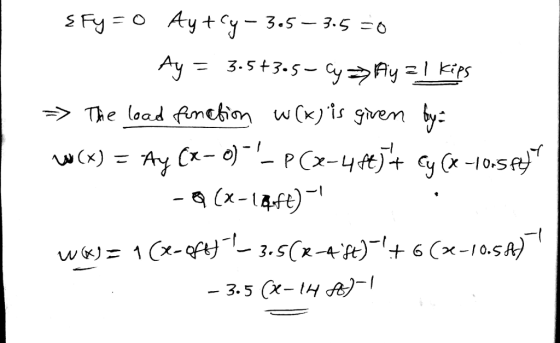

For the beam and loading shown, use discontinuity functions to compute the deflection vo of the...
Part 1 For the beam shown, assume that EI = 80 ,000 kip-ft2, P = 90...
Part 1
For the beam shown, assume that EI = 80 ,000
kip-ft2, P = 90 kips, and w = 7.5
kips/ft. Use discontinuity functions to determine
(a) the reactions at A, C, and D.
(b) the beam deflection at B.
Assume LAB = LBC = 9.5 ft,
LCD = 19.0 ft.
Part 1 (a; tha reactians at 4, c, and 0. LMB LBC LCD
For the beam shown, assume that ET-130 ,000 kip-ft2, P = 80 kips, and w = 4.5 kips/ft. Use discontinuity functions to determine (a) the reactions at A, C, and D (b) the beam deflection at B Assume LA...
For the beam shown, assume that ET-130 ,000 kip-ft2, P = 80 kips, and w = 4.5 kips/ft. Use discontinuity functions to determine (a) the reactions at A, C, and D (b) the beam deflection at B Assume LAB = LBC = 9.0 ft, LCD = 18.0 ft. AB CD Sum the forces in the y direction to find an expression that includes the reaction forces Ay, Cy, and Dy acting on the beam. Positive values for the reactions are...
For the beam and loading shown, use discontinuity functions to compute: (a) the slope Os of...
For the beam and loading shown, use discontinuity functions to compute: (a) the slope Os of the beam at B, and (b) the deflection VA of the beam at A. Assume a constant value of ET = 68000 kN m2 for the beam; WA = 15 kN/m, wg - 41 kN/m, LAB 2.9 m, Lac = 1.9 m,
P10.035 (Multistep) For the beam and loading shown, use discontinuity functions to compute (a) th...
P10.035 (Multistep) For the beam and loading shown, use discontinuity functions to compute (a) the deflection of the beam at A and (b) the deflection of the beam at C. Assume a constant value of EI 26000 kN m for the beam. Also, assume P-31 kN, W 23 kN/m, wc -62 kN/m, a -2.1 m, b-3.7 m, and c1.3m WB *Part 1 Calculate the reaction forces B, and D acting on the beam. Positive values for the reactions are indicated...
A propped cantilever beam is loaded as shown. Assume that EI = 250,000 kN-m2, and use...
A propped cantilever beam is loaded as shown. Assume that
EI = 250,000 kN-m2, and use discontinuity
functions to determine
(a) the reactions at A and B.
(b) the beam deflection at C.
The reaction forces are positive if up and negative if down. The
reaction moment is positive if counterclockwise and negative if
clockwise.
Assume LAB = 5.4 m, LBC =
2.9 m, MC = 700 kN-m.
V Mc X A B LAB LBC Answers: (a) Ay = KN...
Q1. deflection at point C For the beam and loading shown, determine (a) the reaction at point A, (b) the Use E-29*106 p...
Q1. deflection at point C For the beam and loading shown, determine (a) the reaction at point A, (b) the Use E-29*106 psi and I=156 in2 9 kips/ft A C w12 x 22 -6 ft 6 ft
Q1. deflection at point C For the beam and loading shown, determine (a) the reaction at point A, (b) the Use E-29*106 psi and I=156 in2 9 kips/ft A C w12 x 22 -6 ft 6 ft
P10.037 (GO Tutorial) For the beams and loadings shown, determine the beam deflection at point H....
P10.037 (GO Tutorial) For the beams and loadings shown, determine the beam deflection at point H. Assume that EI = 9.0 × 10-a kN-m2 is constant for each beam (a) Beam 1 Assume LHA = 2.75 m, LAB 7.00 m, LBC = 2.00 m, MC 200 kN·m. HA AB Answer: VH = (b) Beam 2 Assume IHA = 1.50 m, LAD = 4.75 m, w = 8 kN/m. AB Answer: VH - (c) Beam 3 Assume LAH = 48-lge* 3.50...
Use the graphical method to construct the shear-force and bending-moment diagrams for the beam shown. Let...
Use the graphical method to construct the shear-force and bending-moment diagrams for the beam shown. Let a=4.0 ft, b=9.0 ft, c=5.0 ft, d=4.0 ft, w = 8 kips/ft and P = 75 kips. Construct the shear-force and bending-moment diagrams on paper and use the results to answer the questions in the subsequent parts of this GO exercise. W X A B C D E a b с For this loading, calculate the reaction forces Ay and Ey acting on the...
Use the graphical method to construct the shear-force and bending moment diagrams for the beam shown....
Use the graphical method to construct the shear-force and bending moment diagrams for the beam shown. Let a=4.0 ft, b=5.0 ft, c=5.0 ft,d=3.0 ft. w = 7.5 kips/ft and P = 30 kips. Construct the shear-force and bending-moment diagrams on paper and use the results to answer the questions in the subsequent parts of this GO exercise. с D E b For this loading, calculate the reaction forces A, and E, acting on the beam. Positive values for the reactions...
The two-span continuos beam (ABC) shown in the sketch below carries a uniformly distributed load, w,...
The two-span continuos beam (ABC) shown in the sketch
below carries a uniformly distributed load, w, in the left side
span AB. Assume that EI is constant. Use the method of virtual
work, together with the principle of relative displacements, to
determine the following quantities in terms of E,I,L and
w:
The two-span continuous beam (ABC) shown in the sketch below carries a uniformly distributed load, w, in the left side span AB. Assume that El of the beam is...
Part 1
For the beam shown, assume that EI = 80 ,000
kip-ft2, P = 90 kips, and w = 7.5
kips/ft. Use discontinuity functions to determine
(a) the reactions at A, C, and D.
(b) the beam deflection at B.
Assume LAB = LBC = 9.5 ft,
LCD = 19.0 ft.
Part 1 (a; tha reactians at 4, c, and 0. LMB LBC LCD
For the beam shown, assume that ET-130 ,000 kip-ft2, P = 80 kips, and w = 4.5 kips/ft. Use discontinuity functions to determine (a) the reactions at A, C, and D (b) the beam deflection at B Assume LAB = LBC = 9.0 ft, LCD = 18.0 ft. AB CD Sum the forces in the y direction to find an expression that includes the reaction forces Ay, Cy, and Dy acting on the beam. Positive values for the reactions are...
For the beam and loading shown, use discontinuity functions to compute: (a) the slope Os of the beam at B, and (b) the deflection VA of the beam at A. Assume a constant value of ET = 68000 kN m2 for the beam; WA = 15 kN/m, wg - 41 kN/m, LAB 2.9 m, Lac = 1.9 m,
P10.035 (Multistep) For the beam and loading shown, use discontinuity functions to compute (a) the deflection of the beam at A and (b) the deflection of the beam at C. Assume a constant value of EI 26000 kN m for the beam. Also, assume P-31 kN, W 23 kN/m, wc -62 kN/m, a -2.1 m, b-3.7 m, and c1.3m WB *Part 1 Calculate the reaction forces B, and D acting on the beam. Positive values for the reactions are indicated...
A propped cantilever beam is loaded as shown. Assume that
EI = 250,000 kN-m2, and use discontinuity
functions to determine
(a) the reactions at A and B.
(b) the beam deflection at C.
The reaction forces are positive if up and negative if down. The
reaction moment is positive if counterclockwise and negative if
clockwise.
Assume LAB = 5.4 m, LBC =
2.9 m, MC = 700 kN-m.
V Mc X A B LAB LBC Answers: (a) Ay = KN...
Q1. deflection at point C For the beam and loading shown, determine (a) the reaction at point A, (b) the Use E-29*106 psi and I=156 in2 9 kips/ft A C w12 x 22 -6 ft 6 ft
Q1. deflection at point C For the beam and loading shown, determine (a) the reaction at point A, (b) the Use E-29*106 psi and I=156 in2 9 kips/ft A C w12 x 22 -6 ft 6 ft
P10.037 (GO Tutorial) For the beams and loadings shown, determine the beam deflection at point H. Assume that EI = 9.0 × 10-a kN-m2 is constant for each beam (a) Beam 1 Assume LHA = 2.75 m, LAB 7.00 m, LBC = 2.00 m, MC 200 kN·m. HA AB Answer: VH = (b) Beam 2 Assume IHA = 1.50 m, LAD = 4.75 m, w = 8 kN/m. AB Answer: VH - (c) Beam 3 Assume LAH = 48-lge* 3.50...
Use the graphical method to construct the shear-force and bending-moment diagrams for the beam shown. Let a=4.0 ft, b=9.0 ft, c=5.0 ft, d=4.0 ft, w = 8 kips/ft and P = 75 kips. Construct the shear-force and bending-moment diagrams on paper and use the results to answer the questions in the subsequent parts of this GO exercise. W X A B C D E a b с For this loading, calculate the reaction forces Ay and Ey acting on the...
Use the graphical method to construct the shear-force and bending moment diagrams for the beam shown. Let a=4.0 ft, b=5.0 ft, c=5.0 ft,d=3.0 ft. w = 7.5 kips/ft and P = 30 kips. Construct the shear-force and bending-moment diagrams on paper and use the results to answer the questions in the subsequent parts of this GO exercise. с D E b For this loading, calculate the reaction forces A, and E, acting on the beam. Positive values for the reactions...
The two-span continuos beam (ABC) shown in the sketch
below carries a uniformly distributed load, w, in the left side
span AB. Assume that EI is constant. Use the method of virtual
work, together with the principle of relative displacements, to
determine the following quantities in terms of E,I,L and
w:
The two-span continuous beam (ABC) shown in the sketch below carries a uniformly distributed load, w, in the left side span AB. Assume that El of the beam is...
