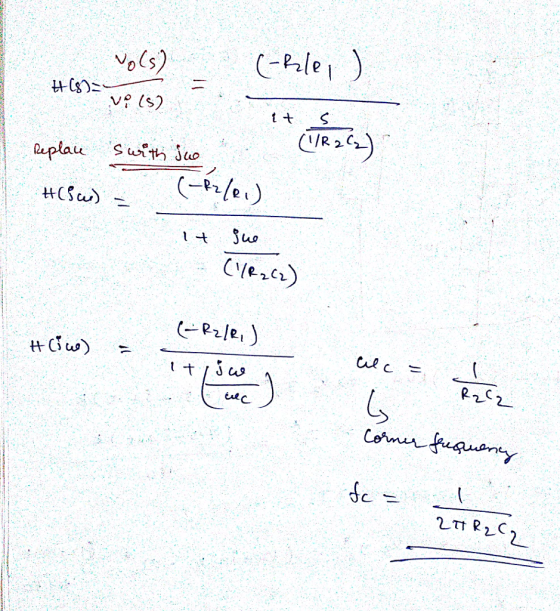

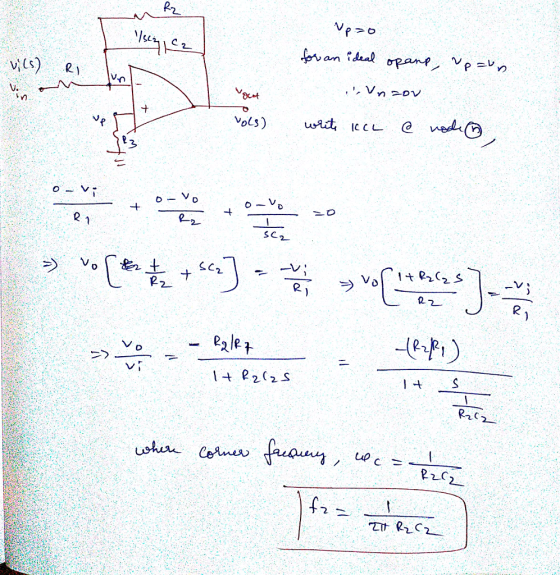

Calculate the trandfer function Vout/Vi as the functionof frequency and get the corner frequencies in terms of R1 R2 R3 AND C2

Calculate the trandfer function Vout/Vi as the functionof frequency and get the corner frequencies in terms...
Given the circuit below: R3 C1 Vout C2 R1 R3 Vin R2 ts 1 a) derive the transfer function between the input and the output in terms of R1,C1,R2,C2 b) For this and all other parts below, assume Izl<Ipl, i..e that D(s) is a lead-type compensator. The transfer function is written in the following format ts 1 Express quantities K, z, p using R1,C1,R2,C2 Also, express Κα, α, τ using K,z, p c) Observe the values of s-jw on the...
R1 2. R2 C2 Vout t) The switch is closed at t-0. (a) In terms the component values R1, R2, and C2, what is Vout(t) at t0+ (b) What is is Vout(t) as t- (c) Derive the time dependence for Vout(t)
R1 2. R2 C2 Vout t) The switch is closed at t-0. (a) In terms the component values R1, R2, and C2, what is Vout(t) at t0+ (b) What is is Vout(t) as t- (c) Derive the time dependence...
Derive the transfer function, vo/vi(s), in terms of G1, G2, G3, G4, G5 where Gį = 1/Zį. Z2 N Via Z1 Z3 ο νο a. Derive the transfer function, vo/vi(s), if Z1 = R1, Z2 = R2,23 = R3 (i.e., resistors) and 24 = 1/sC1,25 = 1/sC2 (i.e., capacitors). b. Using Excel/Matlab/Python, etc., to draw the Bode plot of the magnitude using the following design values: R1=180k22, R2=180k12, R3=100522, C1=100nF, C2=25nF. c. What are the values of w, and Q?
1) calculate Av from Figure 1
2) Compare the simulated bode plot vs the measured corner
frequencies
XSC1 ExtT R5 3.9k R1 C2 C1 V1 15V Q1 2N3904 R3 750? V3 R2 20m Vpk 10kHz R4 22? C3
R1 R2 R3 1k2 5.00k2 3.00k 2 R3 1 467 22 R3 V1 5V Vout -1.61 3.10 AllTned is Caiculatans (C iveuits Calculate (show formulae) Measu Mult Vout (at the edges of R3)= Vout = ST VI 3.1 NOU YA HT I out (flowing through R3) E HORFEOFEE Iout R21-0312) 14 2 HH
transfer function ? leave in terms of R and C
ues given for the resistors and capacitors. R3 Vin 10kg R4 Vout 1.5kg C1 R1 HAW 1nF 1kg R2 1kg Rz
- Vin R W Vout For the active low-pass filter above, calculate the break frequency in Hz and the low- frequency gain in dB if R1 = 47 k22, R2 = 820 k22 and C = 100 pF.
Find The values, C1, C2, L1, L2, R1, R2, R3. The tweeter speaker can reproduce frequencies greater than 6kHz, and the woofer can reproduce frequencies less than 200Hz. For proper sound, the midrange should reproduce all frequencies not produced by the subwoofer or tweeter. C2 C1 L2 V1 L1 R1 R3 R2 Midrange Tweeter Woofer Fig. 2. Equivalent model. The values of Ri, R2, R3, L1, L2, G. and C, are selected so that the filters have the same cutoff...
Calculate Vout and Power
Out
R3 Your V = 15VDC R1 = 1K2 R2 = 3.9K22 R3 = 90022 S R3 s 2.4K 12. in 5012 steps
Design an amplifier that meets the following conditions. Determine the R3 value to get the maximum voltage gain A. Find the W / L of VG, VS, VD and MOS. B. Find RD, R1, R2, R3. C. If the input frequency is 20 Hz. obtain the conditions and values that determine the Cl and C2 values V20=2.4IV].Pc =2.5m),4 = = 4\uA] 4C-100.A/,,0.SV), A= 0,e = 0,7 V ON - 51v/v)},R = 50[Q] R, >> 1/g.m Vi C=F]
