A structural steel wide-flange section is reinforced with two steel plates attached to the web of...
2. A structural steel wide-flange section is reinforced with two steel plates attached to the web...

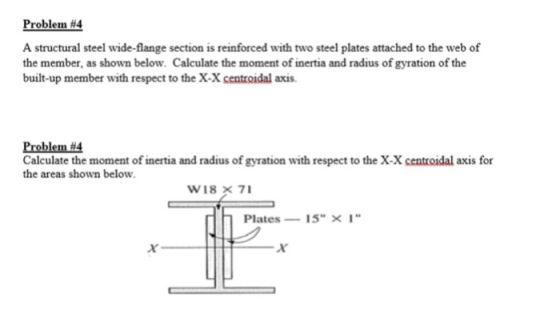

2. A structural steel wide-flange section is reinforced with two steel plates attached to the web of the member, as shown. Calculate the moment of inertia of the built-up member with respect to the X-X centroidal axis. W18 × 71 Plates-15" × 1"
PROBLEM 8.2 of in- small of in- le the . ncen- nined 8.3 A structural steel...
PROBLEM 8.2 of in- small of in- le the . ncen- nined 8.3 A structural steel wide-flange section is reinforced with two steel plates attached to the web of the member, as shown. Calculate the moment of inertia of the built-up member with respect to the X-X centroidal axis. W18 X 71 (8.3) Plates - 15" X 1" -ונוSu deter- Х (8.4) quan PROBLEM 8.3
A built-up steel member is composed of a W18 x71 wide-flange section with a 12-ir by %-in plate w...
A built-up steel member is composed of a W18 x71 wide-flange section with a 12-ir by %-in plate welded to its top flange, as shown below. Locate the XX centroidal axis. A W18 x 71 wide-flange section has an area of 14.7 in2 and a height of 18 in (Hints: (1) let A- 14.7 (the area of the flange), (2) find A2 (the area of the cover plate); (3) find yi and уг; (4) find y-bar to find the X-X...
Two chanes and syration of the combined section with respect to the centroidal axes shown. two pl...
Two chanes and syration of the combined section with respect to the centroidal axes shown. two plates are used to form the column section shown Determine the moments of inertia and the radii of Display Channel Properties 1x = 1046 mm14 ly H 10 6 mm4 C200 X 27.9 13 mm 190 mm _ 340 mm erian Standard Channels r d Value 27.9 3550 203 12.4 64.3 9.91 14.4 0 18.3 71.6 0.82 15.2 Units kg/m mm 2 Mass per...
FLANGE. 44" THICK Problem 6. THIS IS A STEEL WIDE FLANGE SECTION W 16 X 31....
FLANGE. 44" THICK Problem 6. THIS IS A STEEL WIDE FLANGE SECTION W 16 X 31. THIS BEAM SPANS 20 FEET AND CARRIES A LOAD OF 3 KIPS PER FOOT ALONG ITS LENGTH. CALCULATE THE MAXIMUM BENDING STRESS AND THE MAXIMUM SHEAR STRESS GENERATED IN THIS BEAM. E NEUTRAL AXIS WEB 275" THICK
Section 8.5 Radius of Gyration 8.16 Compute the radii of gyration about both centroidal axes for ...
Section 8.5 Radius of Gyration 8.16 Compute the radii of gyration about both centroidal axes for the following structural steel shapes and compare your results with tabulated values: (a) W10 X 54 (b) C10 X 15.3 o TABLE 3 Properties of areas Polar S Moment of Inertia |Moment of Inertiaの|Radius of Gyration Area (A) Shape 4°、12 12 CG 12 13 CG 18 36 A- 12 Triangle CG e 64 0.7854d : 0.7854R Circle Shape Area (A) Moment of Lnertia Radius...
Two L4X4 in angles are welded to a steel plate as shown in the figure, where...
Two L4X4 in angles are welded to a steel plate as shown in the figure, where h = 16 in. Determine the moments of inertia of the combined section with respect to centroidal axes, parallel and perpendicular to the plate. in. in The moment of inertia of the combined section with respect to centroidal axis parallel to the plate is The moment of inertia of the combined section with respect to centroidal axis perpendicular to the plate is in4
A reinforced concrete beam of T-section is cast from N32 concrete. The beam has a flange...
A reinforced concrete beam of T-section is cast from N32
concrete. The beam has a flange width of 805mm, flange thickness
90mm, web width of 300mm and overall depth of 650mm. Two, N32
tensile rods with an effective cover of 46mm are located in web
area, and four, N20 compressive rods with an effective cover of
25mm are located in the flange area. The center-to-center distance
between the compressive rods is 225mm. The bending moment applied
to the section is...
Determine the Moment of Inertia Ix and Iy of the composite cross section about the centroidal x and y axes. Parallel Axis Theorem I = I + Ad2
Determine the Moment of Inertia Ix and Iy of the composite cross section about the centroidal x and y axes. Parallel Axis Theorem I = I + Ad2 HINT: 1st find the composite centroidal x and y axes, 2nd find the distance from the centroids of each section to the new composite centroidal axis, 3rd calculate the centroidal Ix and ly and areas using formulas for common shapes, 4th use the parallel axis theorem to calculate the moment of inertia. Also find...
2. The frame shown consists of a very stiff steel beam with a wide-flange beam (W33 X 200), welde...
2. The frame shown consists of a very stiff steel beam with a wide-flange beam (W33 X 200), welded rigidly to two vertical channels (C8 X11.5). Assume that the mass of the channels is small compared to the mass of the beam. The area moment of inertia of each channel about its centroidal bending axis is 1.3 in. An eccentric exciter weighting 50 lb is attached to the beam, which weighs 2,000 lb, and is used to excite the frame....
2. A structural steel wide-flange section is reinforced with two steel plates attached to the web of the member, as shown. Calculate the moment of inertia of the built-up member with respect to the X-X centroidal axis. W18 × 71 Plates-15" × 1"
PROBLEM 8.2 of in- small of in- le the . ncen- nined 8.3 A structural steel wide-flange section is reinforced with two steel plates attached to the web of the member, as shown. Calculate the moment of inertia of the built-up member with respect to the X-X centroidal axis. W18 X 71 (8.3) Plates - 15" X 1" -ונוSu deter- Х (8.4) quan PROBLEM 8.3
A built-up steel member is composed of a W18 x71 wide-flange section with a 12-ir by %-in plate welded to its top flange, as shown below. Locate the XX centroidal axis. A W18 x 71 wide-flange section has an area of 14.7 in2 and a height of 18 in (Hints: (1) let A- 14.7 (the area of the flange), (2) find A2 (the area of the cover plate); (3) find yi and уг; (4) find y-bar to find the X-X...
Two chanes and syration of the combined section with respect to the centroidal axes shown. two plates are used to form the column section shown Determine the moments of inertia and the radii of Display Channel Properties 1x = 1046 mm14 ly H 10 6 mm4 C200 X 27.9 13 mm 190 mm _ 340 mm erian Standard Channels r d Value 27.9 3550 203 12.4 64.3 9.91 14.4 0 18.3 71.6 0.82 15.2 Units kg/m mm 2 Mass per...
FLANGE. 44" THICK Problem 6. THIS IS A STEEL WIDE FLANGE SECTION W 16 X 31. THIS BEAM SPANS 20 FEET AND CARRIES A LOAD OF 3 KIPS PER FOOT ALONG ITS LENGTH. CALCULATE THE MAXIMUM BENDING STRESS AND THE MAXIMUM SHEAR STRESS GENERATED IN THIS BEAM. E NEUTRAL AXIS WEB 275" THICK
Section 8.5 Radius of Gyration 8.16 Compute the radii of gyration about both centroidal axes for the following structural steel shapes and compare your results with tabulated values: (a) W10 X 54 (b) C10 X 15.3 o TABLE 3 Properties of areas Polar S Moment of Inertia |Moment of Inertiaの|Radius of Gyration Area (A) Shape 4°、12 12 CG 12 13 CG 18 36 A- 12 Triangle CG e 64 0.7854d : 0.7854R Circle Shape Area (A) Moment of Lnertia Radius...
Two L4X4 in angles are welded to a steel plate as shown in the figure, where h = 16 in. Determine the moments of inertia of the combined section with respect to centroidal axes, parallel and perpendicular to the plate. in. in The moment of inertia of the combined section with respect to centroidal axis parallel to the plate is The moment of inertia of the combined section with respect to centroidal axis perpendicular to the plate is in4
A reinforced concrete beam of T-section is cast from N32
concrete. The beam has a flange width of 805mm, flange thickness
90mm, web width of 300mm and overall depth of 650mm. Two, N32
tensile rods with an effective cover of 46mm are located in web
area, and four, N20 compressive rods with an effective cover of
25mm are located in the flange area. The center-to-center distance
between the compressive rods is 225mm. The bending moment applied
to the section is...
2. The frame shown consists of a very stiff steel beam with a wide-flange beam (W33 X 200), welded rigidly to two vertical channels (C8 X11.5). Assume that the mass of the channels is small compared to the mass of the beam. The area moment of inertia of each channel about its centroidal bending axis is 1.3 in. An eccentric exciter weighting 50 lb is attached to the beam, which weighs 2,000 lb, and is used to excite the frame....
