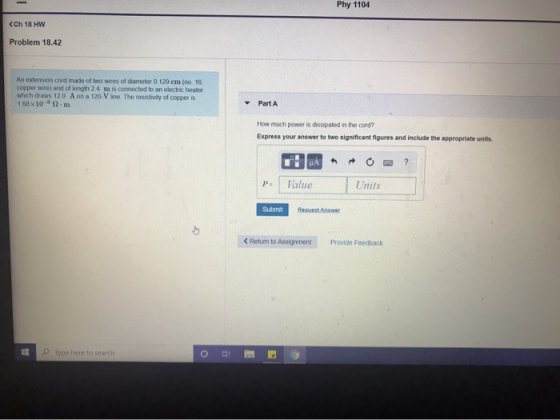

Phy 1104 <Ch 18 HW Problem 18.42 An extension cord made of two wees of diameter...

Question

Question

science physics

Answer 1

Answer #1

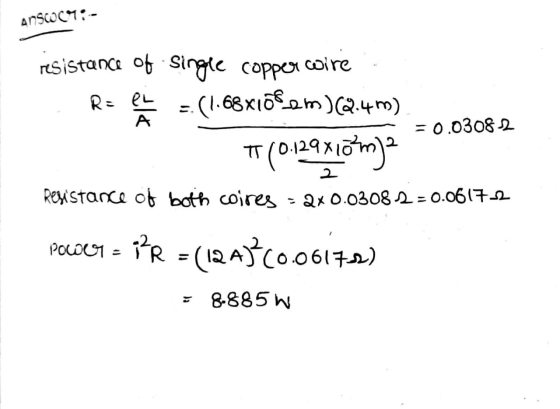

AnS001:- = 0.03082 resistance of single copper wire REPL = (1.68x10fem) 2.4m). *(0.129x10 m² Resistance of both coires = 2x0.

Answer 2

Similar Homework Help Questions

An extension cord made of two wires of diameter 0.129 cm (no. 16 copper wire) and...

An extension cord made of two wires of diameter 0.129 cm (no. 16 copper wire) and of length 2.7 m is connected to an electric heater which draws 11.0 A on a 120-V line. The resistivity of copper is 1.68×10−8Ω⋅m. How much power is dissipated in the cord? Express your answer to two significant figures and include the appropriate units.
An extension cord made of two wires of diameter 0.129 cm (no. 16 copper wire) and...

An extension cord made of two wires of diameter 0.129 cm (no. 16 copper wire) and of length 2.3 m is connected to an electric heater which draws 16.5 A on a 120-V line. The resistivity of copper is 1.68×10−8Ω⋅m. Part A How much power is dissipated in the cord? Express your answer to two significant figures and include the appropriate units. P P = nothingnothing SubmitRequest Answer
An extension cord made of two wires of diameter 0.129 cm (no. 16 copper wire with...

An extension cord made of two wires of diameter 0.129 cm (no. 16 copper wire with r = 1.68x10-8) and of length 2.7 m (9 ft) is connected to an electric heater which draws 15.0 A on a 120-V line. How much power is dissipated in the cord? Please no hand written answers
