Determine mesh currents (13) $50 + 8V

Question

Question

Determine mesh currents

(13) $50 + 8V

engineering Electrical-Engineering

Answer 1

Answer #1

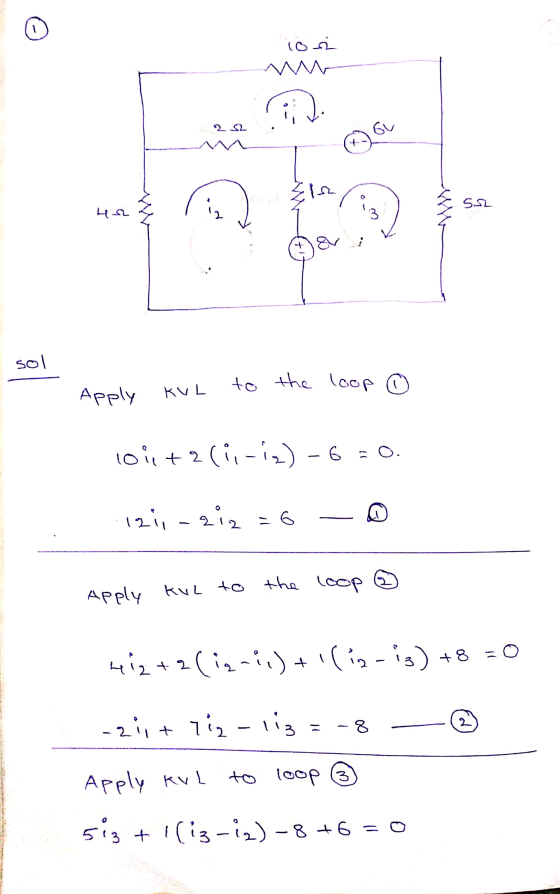

I think you have basic knowledge to calculate KVL. I explained how to calculate mesh currents in the below pictures.

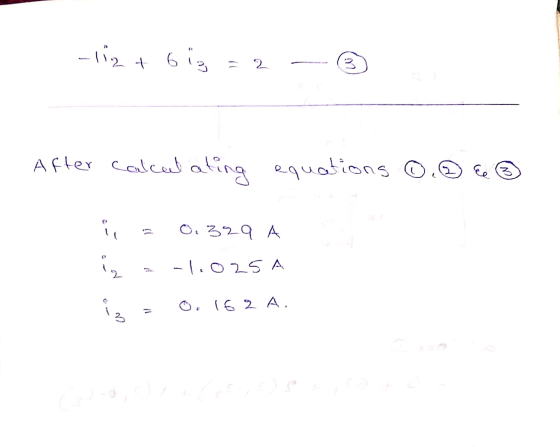

SOLUTION :

I hope you understand. If you have any doubts or if you want any modifications please comment.

Thankyou. UPVOTE ME.

Add a comment
