what is the dynamic range for an instrument? how is it related to a calibration curve?
what is the dynamic range for an instrument? how is it related to a calibration curve?
Homework Answers
Dynamic range: In the dynamic range the response changes when the analyte concentration is changed but the relationship may be non-linear. If the response is linear it can be specified as a dynamic linear range.
Calibration curve: The calibration curve is a plot of how the instrumental response, the so-called analytical signal, changes with the concentration of the analyte (the substance to be measured). The operator prepares a series of standards across a range of concentrations near the expected concentration of analyte in the unknown.

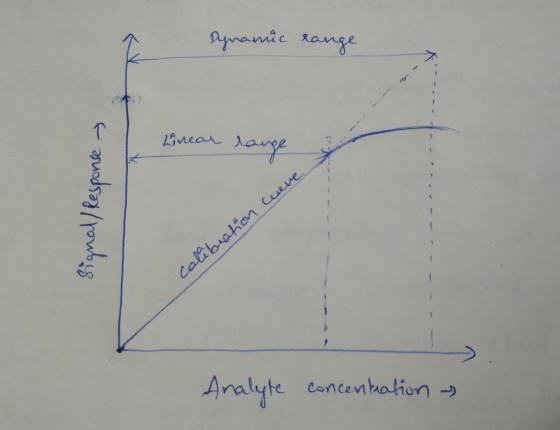

The relation between dynamic range and calibration curve is shown in below figure.
