PERT networks use a simple statistical method to determine the most likely task completion times. Describe...

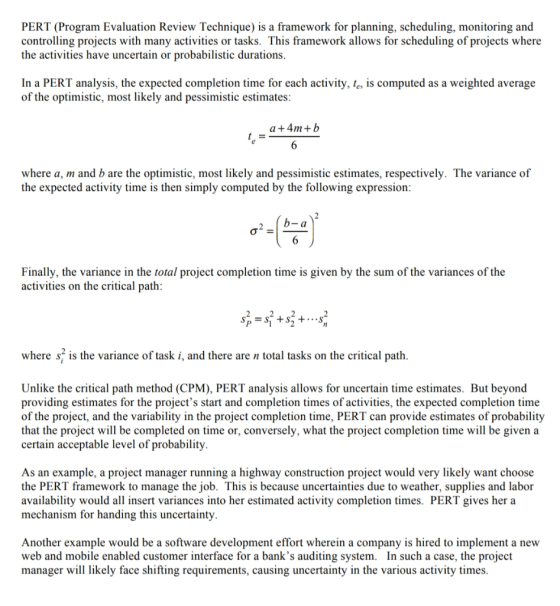

PERT networks use a simple statistical method to determine the most likely task completion times. Describe how expected activity times and variances can be computed in a PERT network. Describe a situation in which a project manager would choose PERT for her project.
Homework Answers
Add Answer to:
PERT networks use a simple statistical method to
determine the most likely task completion times. Describe...
Pert project method Activity Predecessors A group 5 optimistic Most likely Pessimistic Expected Variance a m...
Pert project method Activity Predecessors A group 5 optimistic Most likely Pessimistic Expected Variance a m b Time (t) o 2 3 2 1 B с D NWN mlm A 1 A,B 2 4 1 6 7 9 F 1 с с DE F,G 4 2 5 3 G 4 12 H 2 4 From the table above find the flowing answers. 1. Construct the project Network 2. Find the expected duration and Variance of each activity 3. Find the...
PERT Analysis: The following represents a project with four activities. All times are in weeks. Activity Immediate Predecessor Optimistic Time Most Likely Time Pessimistic Time A -...
PERT Analysis: The following represents a project with four activities. All times are in weeks. Activity Immediate Predecessor Optimistic Time Most Likely Time Pessimistic Time A - 3 8 14 B - 8 8 8 C A 6 9 18 D B 6 11 17 According to the data in the above Table: What is the critical path? What is the minimum expected completion time for the project? According to the above Table, there are four activities in the project....
Must use AOA PERT/CPM Manual Calculations and show Networks. 10. A farm owner is going to...
Must use AOA PERT/CPM
Manual Calculations and show Networks.
10. A farm owner is going to erect a maintenance building with a connecting electrical generator and water tank. The activities, activity descriptions, and estimated durations are given in the following table: Activity Activity Activity Activity Description Predecessor Time Excavate Erect building Install generator Install tank Install maintenance equipment Connect generator and tank to building b.c,d Paint finish Η Check out facility Construct the network for this project and calculate the...
Given all the information in the table, use PERT/CPM to help Mr. Hawthorne address to the...
Given all the information in the table, use PERT/CPM to help Mr.
Hawthorne address to the following questions.
A. Create the network diagram representing the problem.
B. What is the total time expected to be required to complete
the project if no delays occur?
C. What are the earliest and latest start and finish times for
the individual activities required to meet the expected project
completion time provided in question B (show your method for
determining this)?
D. Which are...
Activity Predecessor Optimistic time Most likely time Pessimistic time A - 3 5 8 B -...
Activity Predecessor Optimistic time Most likely time Pessimistic time A - 3 5 8 B - 4 6 10 C A,B 2 5 8 D B 3 5 9 E A,C 3 6 9 F C,E 1 3 5 G C,D 3 4 9 H D 4 6 10 I F,G 3 4 9 J H 2 4 6 A).Draw the project network b).what is the expected completion time of the project. c) after your calculation, if you find one...
Choose an event or significant task and prepare an activities list following a format similar to...
Choose an event or significant task and prepare an activities
list following a format similar to that used in the text, Table
9.3, Chapter 9, page 391. Be sure to include the immediate
predecessors.
Then, create a project network similar to that shown in Figure
9.7, Chapter 9, page 392.
Do NOT include times for the activities and do NOT attempt to
determine the critical path.
Examples of events you might consider (there are many
others):
formal dinner for 5...
Consider the following network for a small maintenance project (all times are in days). [7 Marks]...
Consider the following network for a small maintenance project (all times are in days). [7 Marks] Activity Immediate Predecessor [s] Optimistic Time Most Likely Time Pessimistic Time A - 2 3 4 B - 5 6 7 C - 5 6 7 D A 3 4 5 E A 2 3 4 F C 3 4 5 G C 8 10 16 H B, E, F 5 6 7 I B, E, F 7 11 15 J B, E,...
1. The activities needed for a new project your company is undertaking are listed in the...
1. The activities needed for a new project your company is undertaking are listed in the following table. ACTIVITY IMMEDIATE PREDECESSOR(S) A ---- B ---- C A D A, B E B F C, D, E G D, E H F I F, G J G The activity times were determined for the project, and were as below. ACTIVITY ACTIVITY TIME (days) A 11 B 9 C 7 D 12 E 8 F 9 G 10 H 6 I 7...
question 3.12 Chapter 3 Project Management 91 Table for 3.8 Time Activity Immediate Code Description in...
question 3.12
Chapter 3 Project Management 91 Table for 3.8 Time Activity Immediate Code Description in hours) Predecesur Planning Find location determine resource requirements Purchasing Requisition of lumber and sand Excavation Planning Dig and grade Sawing Planning Saw lumber inte appropriate sizes Placement Purchasing Position lumber in comect locations Sawing. c om Assembly Nail lamber together Placement Tafill Put sand in and under the equipment Ambly Outfill Put dirt a nd the equipment Assembly Decoration Put grass all over the...
al Industries are likely to use 4 At Webster University, where you work as a project...
al Industries are likely to use 4 At Webster University, where you work as a project manager, you have been asked to conduct user training sessions for a new information system. You must develop a specific schedule for the tasks (the estimated task duration for each is shown in parentheses): . First, confirm arrangements for the training facility you plan to use (2 days). • After you have confirmed the training facility, two tasks can begin at the same time:...
Pert project method Activity Predecessors A group 5 optimistic Most likely Pessimistic Expected Variance a m b Time (t) o 2 3 2 1 B с D NWN mlm A 1 A,B 2 4 1 6 7 9 F 1 с с DE F,G 4 2 5 3 G 4 12 H 2 4 From the table above find the flowing answers. 1. Construct the project Network 2. Find the expected duration and Variance of each activity 3. Find the...
Must use AOA PERT/CPM
Manual Calculations and show Networks.
10. A farm owner is going to erect a maintenance building with a connecting electrical generator and water tank. The activities, activity descriptions, and estimated durations are given in the following table: Activity Activity Activity Activity Description Predecessor Time Excavate Erect building Install generator Install tank Install maintenance equipment Connect generator and tank to building b.c,d Paint finish Η Check out facility Construct the network for this project and calculate the...
Given all the information in the table, use PERT/CPM to help Mr.
Hawthorne address to the following questions.
A. Create the network diagram representing the problem.
B. What is the total time expected to be required to complete
the project if no delays occur?
C. What are the earliest and latest start and finish times for
the individual activities required to meet the expected project
completion time provided in question B (show your method for
determining this)?
D. Which are...
Choose an event or significant task and prepare an activities
list following a format similar to that used in the text, Table
9.3, Chapter 9, page 391. Be sure to include the immediate
predecessors.
Then, create a project network similar to that shown in Figure
9.7, Chapter 9, page 392.
Do NOT include times for the activities and do NOT attempt to
determine the critical path.
Examples of events you might consider (there are many
others):
formal dinner for 5...
question 3.12
Chapter 3 Project Management 91 Table for 3.8 Time Activity Immediate Code Description in hours) Predecesur Planning Find location determine resource requirements Purchasing Requisition of lumber and sand Excavation Planning Dig and grade Sawing Planning Saw lumber inte appropriate sizes Placement Purchasing Position lumber in comect locations Sawing. c om Assembly Nail lamber together Placement Tafill Put sand in and under the equipment Ambly Outfill Put dirt a nd the equipment Assembly Decoration Put grass all over the...
al Industries are likely to use 4 At Webster University, where you work as a project manager, you have been asked to conduct user training sessions for a new information system. You must develop a specific schedule for the tasks (the estimated task duration for each is shown in parentheses): . First, confirm arrangements for the training facility you plan to use (2 days). • After you have confirmed the training facility, two tasks can begin at the same time:...
