Give Hex code for the MIPS instruction add $t1, $t2, $t3

Question

Question

engineering Computer-Science

Answer 1

Answer #1

Hex: 0x014B4820
Binary: 00000001010010110100100000100000

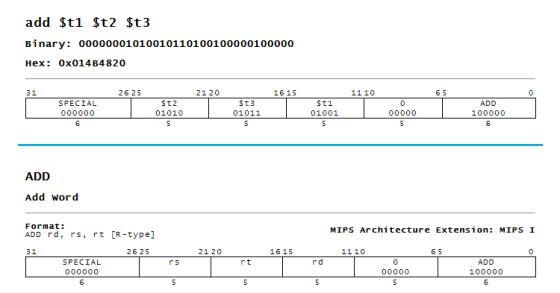

Explanation:

Answer 2
