Consider a banked road bend with a banking angle ?? (measured form the horizontal). If the...

Consider a banked road bend with a banking angle ?? (measured form the horizontal). If the static friction coefficient of the road is ????, derive an algebraic expression for the maximum velocity ?? one can safely drive a car of mass M through this bend.

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

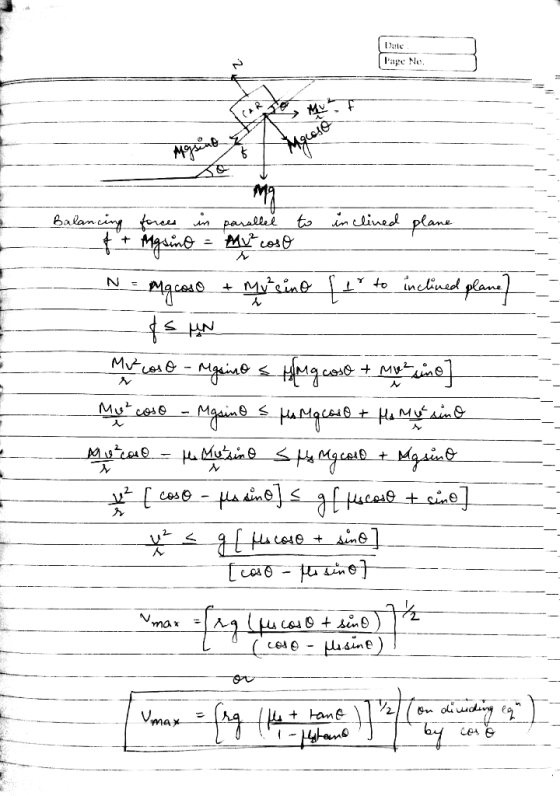

Answer #1

0 0
Add a comment
Know the answer?
Add Answer to:
Consider a banked road bend with a banking angle ?? (measured form the horizontal). If the...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • Consider again the problem of a car traveling along a banked turn. Sometimes roads have a...

    Consider again the problem of a car traveling along a banked turn. Sometimes roads have a "reversed" banking angle. That is, the road is tilted "away" from the center of curvature of the road. If the coefficient of static friction between the tires and the road is μs = 0.4, the radius of curvature is 25 m, and the banking angle is 14°, what is the maximum speed at which a car can safely navigate such a turn?

  • A car travels around a horizontal bend of radius 177 m at a constant speed. (a)...

    A car travels around a horizontal bend of radius 177 m at a constant speed. (a) If the coefficient of the static friction between the road and car tyres is us = 0.6 then what is the maximum speed that the car can negotiate the bend without sliding from the road? m/s Fil (b) What is the magnitude of car's acceleration at the speed calculated in (a)? m/s2 (c) Later, the road at the bend was modified so that the...

  • A car rounds a curve that is banked inward. The radius of curvature of the road...

    A car rounds a curve that is banked inward. The radius of curvature of the road is R = 140 m, the banking angle is θ = 26°, and the coefficient of static friction is μs = 0.39. Find the minimum speed that the car can have without slipping. A car rounds a curve that is banked inward. The radius of curvature of the road is R 140 m, the banking angle is 26e, and the coefficient of static minimum...

  • A car is driving around a banked curve, with the road surface at an angle of...

    A car is driving around a banked curve, with the road surface at an angle of 10.0º. If the radius of curvature of the road is 30.0 m and the coefficient of static friction between the tires of the car and the road is 0.65, what is the maximum speed (in km/hr) the car can go without skidding?

  • A car rounds a curve that is banked inward. The radius of curvature of the road...

    A car rounds a curve that is banked inward. The radius of curvature of the road is R = 152 m, the banking angle is θ = 32°, and the coefficient of static friction is μs = 0.23. Find the minimum speed that the car can have without slipping.

  • A car rounds a curve that is banked inward. The radius of curvature of the road...

    A car rounds a curve that is banked inward. The radius of curvature of the road is R = 142 m, the banking angle is θ = 30°, and the coefficient of static friction is μs = 0.32. Find the minimum speed that the car can have without slipping. I got 36.5196 m/s, which isn't correct.

  • 110 points] A concrete highway curve of radíus R s banked at an angle . A...

    110 points] A concrete highway curve of radíus R s banked at an angle . A rubber-tired car of mass m can take the curve with some maximum speed Umar without sliding he coefficient of static friction between the tires and the road is ue and the coefficient of kinetic friction between the tires and the road is the (a) Sketch the free body diagram of the car in the space below. Label all forces accord- ingly, including the correct...

  • Consider the motion of a car around a banked curve. The angle of the bank with...

    Consider the motion of a car around a banked curve. The angle of the bank with respect to the horizontal is 15.0 degrees, the speed of the car is 20.0 m/s, the radius of curvature for the curve is 30.0 m, and the coefficient of static friction is 0.500. The mass of the car is 1000 kg. a) What is the frictional force? b) Is there a speed at which the frictional force would be zero? If so, what is...

  • Banked curves are designed so that the radial component of the normal force on the car rounding

    Banked curves are designed so that the radial component of the normal force on the car rounding the curve provides the centripetal force required to execute uniform clrcular motion and safely negotlate the curve. A car rounds a banked curve with banking angle θ-27.1° and radius of curvature 157 m. (a) It the coefficient of static friction between the car's tires and the road is -0.316, what is the range ot speeds for which the car can safely negotiate the turn...

  • Consider a wet banked racetrack, where there is a coefficient of static friction of 0.28 and...

    Consider a wet banked racetrack, where there is a coefficient of static friction of 0.28 and a coefficient of kinetic friction of 0.23 between the tires and the surface of the racetrack. The radius of the curve is 59.0  m . A) If the banking angle is 31.0  degrees , what is the maximum speed the automobile can have before sliding up the banking? = 24.7 m/s B) For the situation in Part (A), how big is the normal force on the...
