Show the solution for the following problem

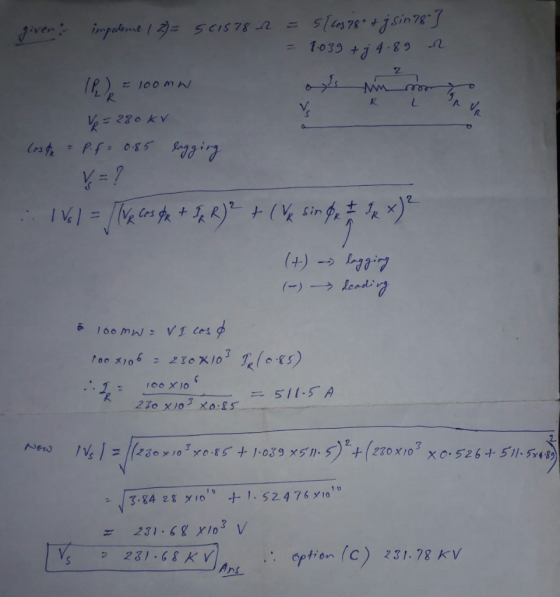

1. A short, 230 kV transmission line has an impedance of 5 cis 78
ohms. The load at the receiving
end is 100 MW at 230 kV, 85% lagging power factor. What is the voltage at the sending end?
a. 235.43 kV b. 226.3 kV c. 231.78 kV d. 238.21 kV

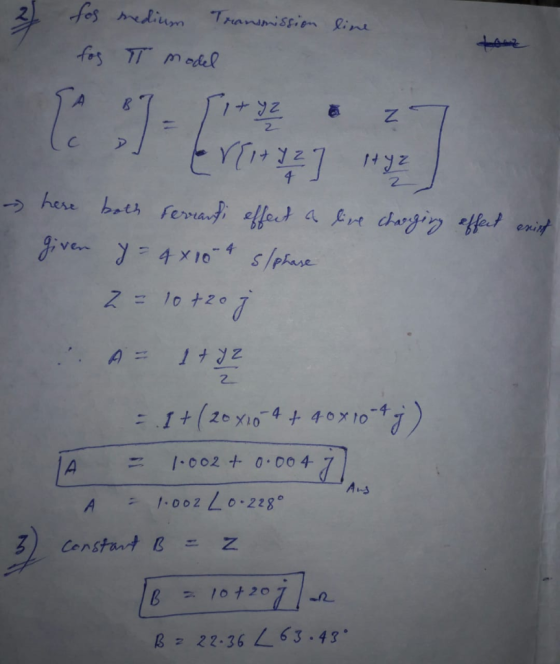

2. A 66 kv medium length transmission line delivers a load of 10
MW at 66 kv and 80% lagging P.F. the line impedance is 10+20j per
phase and its shunt admittance is 4x10^-4 S/phase to neutral. Using
the nominal pi method, determine the constant A of the transmission
line.
3. What is the constant B of problem # 2?
Homework Answers
