Two fluids have the same contact angle with glass. The density of fluid 1 is larger...

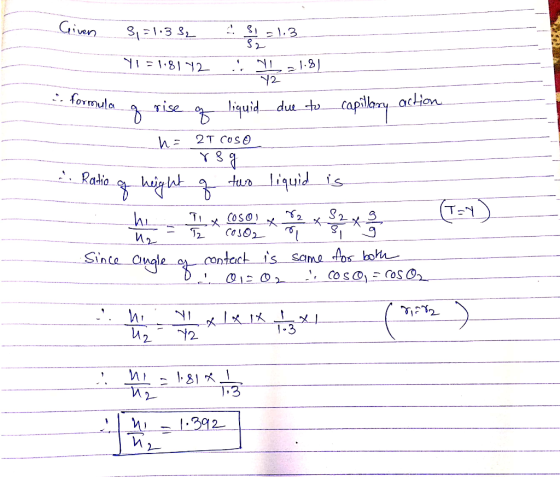

Two fluids have the same contact angle with glass. The density of fluid 1 is larger than the density of fluid 2 . (ρ1 = 1.3 ρ2) The surface tension of fluid 1 is larger than that of fluid 2. (γ1 = 1.81 γ2) Find the ratio h1/h2 of the heights to which a liquid will rise through capillary action in the same capillary tube.
Homework Answers
