Five different experiments are carried out. In each experiment, a block is attached to a horizontal...

Five different experiments are carried out. In each experiment, a block is attached to a horizontal spring. The block is pulled back a certain distance and released. The block oscillates back and forth on a frictionless surface. Rank the amplitude of oscillation for each of the following situations. (Rank the smallest amplitude as 1).

A block of mass M is attached to a spring with a spring constant 2k, pulled back a distance d, and released.

A block of mass 2M is attached to a spring with a spring constant k, pulled back a distance d, and released.

A block of mass M is attached to a spring with a spring constant k, pulled back a distance d, and released.

A block of mass M is attached to a spring with a spring constant k, pulled back a distance (1/2)d, and released.

A block of mass M is attached to a spring with a spring constant (1/2)k, pulled back a distance (1/2)d, and released.

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

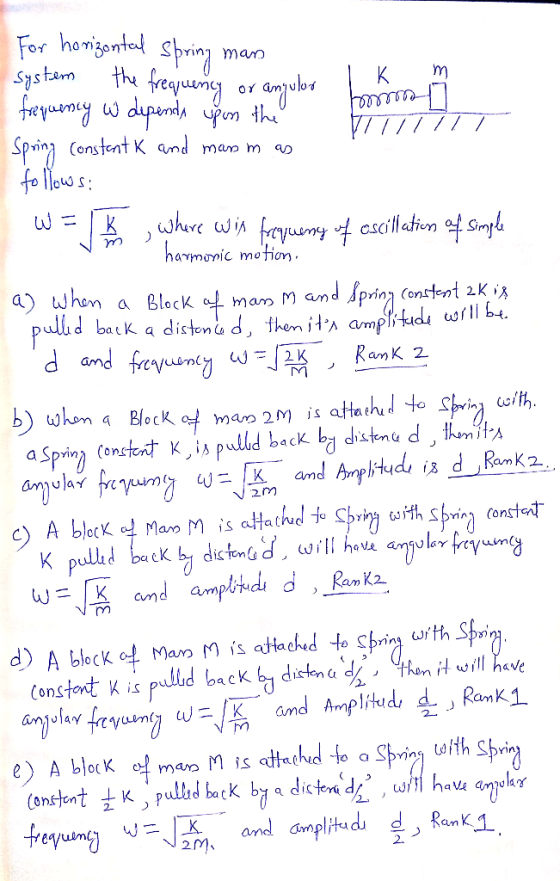

Answer #1

0 0
Add a comment
