A copper wire has a square cross section 3.37 mmmm on a side. The wire is...

A copper wire has a square cross section 3.37 mmmm on a side. The wire is 5.08 mm long and carries a current of 3.79 AA . The density of free electrons is 8.5×1028m−38.5×1028m−3. a) Find the magnitude of the current density in the wire. b) Find the magnitude of the electric field in the wire. c) How much time is required for an electron to travel the length of the wire? d) What is the resistance of this wire?

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

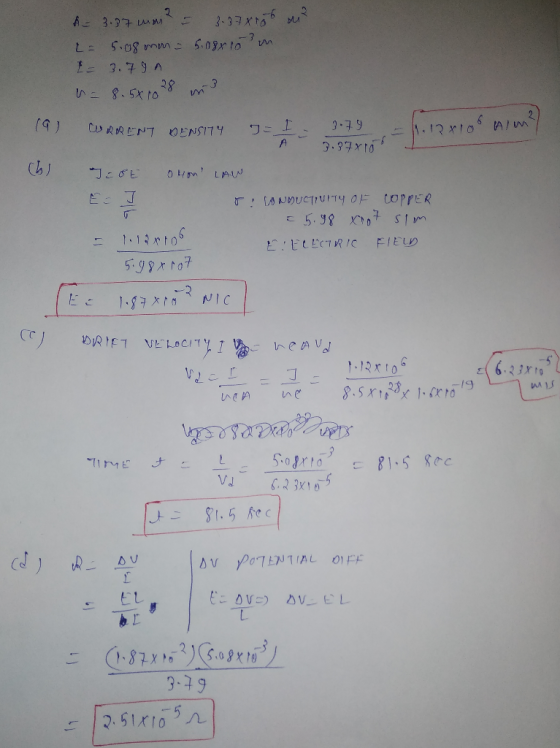

Answer #1

I will be glad to see your comment if you have any query and thumb up if you are satisfied. Thanks !

0 0
Add a comment
Know the answer?
Add Answer to:
A copper wire has a square cross section 3.37 mmmm on a side. The wire is...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • A copper wire has a square cross section 3.0 mm on a side. The wire is...

    A copper wire has a square cross section 3.0 mm on a side. The wire is 4.4 m long and carries a current of 3.1 A . The density of free electrons is 8.5×1028m−3. Part A Find the magnitude of the current density in the wire. Express your answer using two significant figures. Part B Find the magnitude of the electric field in the wire. Express your answer using two significant figures. Part C How much time is required for...

  • A copper wire has a square cross section 2.1 mm on a side. The wire is...

    A copper wire has a square cross section 2.1 mm on a side. The wire is 3.5 m long and carries a current of 3.6 A . The density of free electrons is 8.5×1028m−3

  • A copper wire has a square cross section 2.68 mm on a side. The wire is...

    A copper wire has a square cross section 2.68 mm on a side. The wire is 5.41 m long and carries a current of 3.72 A . The density of free electrons is 8.5×10^28m−3. Part A)Find the magnitude of the current density in the wire. J = 5.18×10^5 A/m2 Part B)Find the magnitude of the electric field in the wire. E = 8.91×10^−3 V/m PartC) How much time is required for an electron to travel the length of the wire?...

  • A copper wire has a square cross section 2.66 mm on a side. The wire is...

    A copper wire has a square cross section 2.66 mm on a side. The wire is 5.33 m long and carries a current of 3.53 A . The density of free electrons is 8.5×1028m−3. If J = 4.99×105  A/m2 , E = 8.58×10−3 V/m, what is the resistance of the wire, R?

  • 2. (20 points) A copper wire with a square cross-section (side length 5 of 3.00 A. The two wires are parallel over a region of 20.0 cm, where they are 1.60 cm apa produces a magnetic field on the...

    2. (20 points) A copper wire with a square cross-section (side length 5 of 3.00 A. The two wires are parallel over a region of 20.0 cm, where they are 1.60 cm apa produces a magnetic field on the copper wire. The copper wire is conn current directed rightward. Data of copper: resistivity = 1.68 x 10-8 Ωm; free electron number density-8.50 x 1028/㎡ a. What is the magnetic field the iron wire exert on the copper wire? (For this...

  • A copper wire has a circular cross section with a radius of 2.51 mm. (a) If...

    A copper wire has a circular cross section with a radius of 2.51 mm. (a) If the wire carries a current of 3.93 A, find the drift speed (in m/s) of electrons in the wire. (Take the density of mobile charge carriers in copper to be n = 1.10 ✕ 10^29 electrons/m^3.) m/s (b) For the same wire size and current, find the drift speed (in m/s) of electrons if the wire is made of aluminum with n = 2.11...

  • A copper wire has a circular cross section with a radius of 1.36 mm. HINT (a)...

    A copper wire has a circular cross section with a radius of 1.36 mm. HINT (a) If the wire carries a current of 3.13 A, find the drift speed (in m/s) of electrons in the wire. (Take the density of mobile charge carriers in copper to be n = 1.10 ✕ 1029 electrons/m3.) m/s (b) For the same wire size and current, find the drift speed (in m/s) of electrons if the wire is made of aluminum with n =...

  • I just need help with Part D, thank you in advance. A copper wire has a...

    I just need help with Part D, thank you in advance. A copper wire has a square cross section 2.02 mm on a side. The wire is 4.81 m long and carries a current of 4. 34 A The density of free electrons is 8.5 x 1028 m3 Part A Find the magnitude of the current density in the wire. Express your answer using three significant figures. J= 1.06x106 A/m2 Previous Answers Submit Correct Part B Find the magnitude of...

  • Conductivity of copper is5.8e7. A copper wire with a square cross-section has a width of 2mm....

    Conductivity of copper is5.8e7. A copper wire with a square cross-section has a width of 2mm. The AC resistance of this wire is measured as 40.853 ohms at 2 GHz. Find the length of this wire.

  • A piece of copper wire has a cross section of 4.0 mm2 and a length of...

    A piece of copper wire has a cross section of 4.0 mm2 and a length of (o What is the electric resistance of the wire at 20 °C? (b) What is the poten- fterence across the wire when it carries a current of 10 A?
