HomeworkLib
Question

A resistor connected in parallel with an inductor draws 50mA from the supply. Calculate the phase...

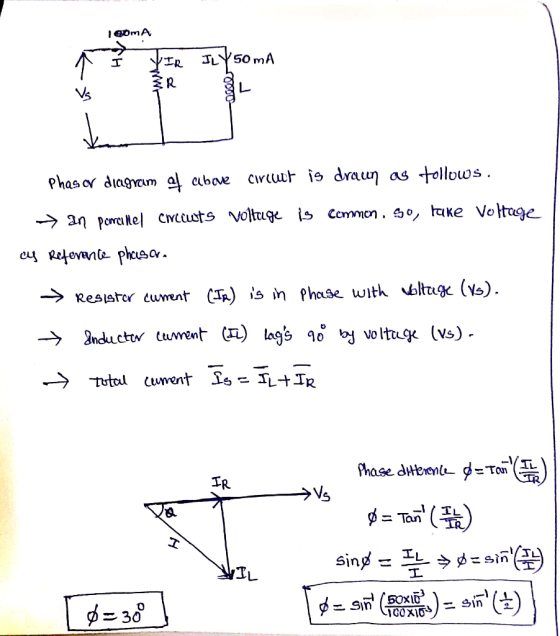

A resistor connected in parallel with an inductor draws 50mA from the supply. Calculate the phase difference if the total current drawn from the supply is 100mA.

engineering   Electrical-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

0 0
Add a comment
Know the answer?
Add Answer to:
A resistor connected in parallel with an inductor draws 50mA from the supply. Calculate the phase...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • a) define complex power in terms of the supply current i and v b) draw separately...

    a) define complex power in terms of the supply current i and v b) draw separately the current and power phasor relations for the case of a load consisting of a series connection of a resistor and an inductor across the voltage supply c) A single phase load connected to a 230V, 50Hz source draws is rated 1.84kVA at a phase angle of 40,lagging, determine the current drawn from the supply and load power factor, calculate the active and reactive...

  • Problem 7 Three three-phase wye-connected loads are in parallel across a three-phase supply. The first load draws a cur...

    Problem 7 Three three-phase wye-connected loads are in parallel across a three-phase supply. The first load draws a current of 10 A at pf- 0.93 (leading), and the second and third loads (each) draw a current of 20 A at pf= 0.85 (lagging). Suppose the line-to-line voltage is 240 V. Compute the following: a) The transmission line current b) The load power factor c) The complex power supplied by the source Problem 7 Three three-phase wye-connected loads are in parallel...

  • Problem 8. Each phase of a balanced three-phase A-connected load consists of a 10mH inductor is...

    Problem 8. Each phase of a balanced three-phase A-connected load consists of a 10mH inductor is series with the parallel combination of a 25μF capacitor and a 50Ω resistor. Assume zero line resistance and a phase voltage of 300V at 400 rad/sec. 1n Calculate the magnitude of the phase current, the line current and the total power absorbed by the load. Ip

  • An ideal inductor of inductance 7.7 mH is connected in parallel with a resistor of resistance...

    An ideal inductor of inductance 7.7 mH is connected in parallel with a resistor of resistance 141 Ω. This parallel combination is then connected in series with a second ideal inductor of inductance 4.5 mH. The sinusoidal voltage source for the circuit is 102 V, 71.6 Hz. Sketch the circuit and find the magnitude of the current, I, flowing through the resistor.

  • A 400 ohm resistor, a 25 mH inductor and a 10 microfarad capacitor are connected in...

    A 400 ohm resistor, a 25 mH inductor and a 10 microfarad capacitor are connected in series to a 10 V sinusoidal supply. At what frequency is maximum current drawn from the supply and what is the current at this frequency?

  • An 75.0 resistor and a 200 mH inductor are connected in parallel across a 105 V...

    An 75.0 resistor and a 200 mH inductor are connected in parallel across a 105 V (rms), 60.0 Hz source. (a) What is the rms current in the resistor? Find in Amps (b) By what angle does the total current lead or lag behind the voltage? The current lags the voltage by (find degrees)

  • A 10–mH inductor and a 25?F capacitor are connected in parallel. The combination is in series...

    A 10–mH inductor and a 25?F capacitor are connected in parallel. The combination is in series with a 15? resistor and a 10V , 160Hz emf. (a) What is the current through the resistor? (b) What is the phase angle ??

  • A 56.6-? resistor is connected in parallel with a 95.98-? resistor. This parallel group is connected...

    A 56.6-? resistor is connected in parallel with a 95.98-? resistor. This parallel group is connected in series with a 28.9-? resistor. The total combination is connected across a 12.7-V battery. Find (a) the current and (b) the power dissipated in the 95.98-? resistor. Why is A is not 0.1968A Chapter 20, Problem 062 Incorrect. A 56.6-Ω resistor is connected in parallel with a 95.98-Ω resistor. This parallel group is connected in series with a 28.9-Ω resistor. The total combination...

  • A balanced A-connected load contains a 12.522 resistor in parallel with the series com- bination of...

    A balanced A-connected load contains a 12.522 resistor in parallel with the series com- bination of a 10mH inductor and a 22uF capacitor in each phase. The a phase voltage is 120/40°VRMs at w = 1 rad/s. Assuming a positive phase sequence find the line AB current.

  • A resistor, an inductor, and a capacitor are connected in series to an AC source. The...

    A resistor, an inductor, and a capacitor are connected in series to an AC source. The AC source is operating at the resonance frequency. Which of the following statements are true? Check all that apply. The current is in phase with the driving voltage. The total voltage across the inductor and the capacitor at any instant is equal to zero. The peak voltage across the capacitor is greater than the peak voltage across the inductor. The peak voltage across the...

ADVERTISEMENT
Free Homework Help App
Download From Google Play
Scan Your Homework
to Get Instant Free Answers
Need Online Homework Help?
Ask a Question
Get Answers For Free
Most questions answered within 3 hours.
ADVERTISEMENT
ADVERTISEMENT
