Cyclotrons are electrostatic accelerator used in place of linear accelerator to save space. These accelerators are...

Cyclotrons are electrostatic accelerator used in place of linear accelerator to save space. These accelerators are used in research and to produce medial isotopes. Is a photon of 25 MeV is moving in a cyclotron in a magnetic field of 2.0 Tesla.

  1. Find its orbital radius.
  2. Calculate the time taken for it to move through one semicircle.
  3. Determine the cyclotron frequency.
engineering   Electrical-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

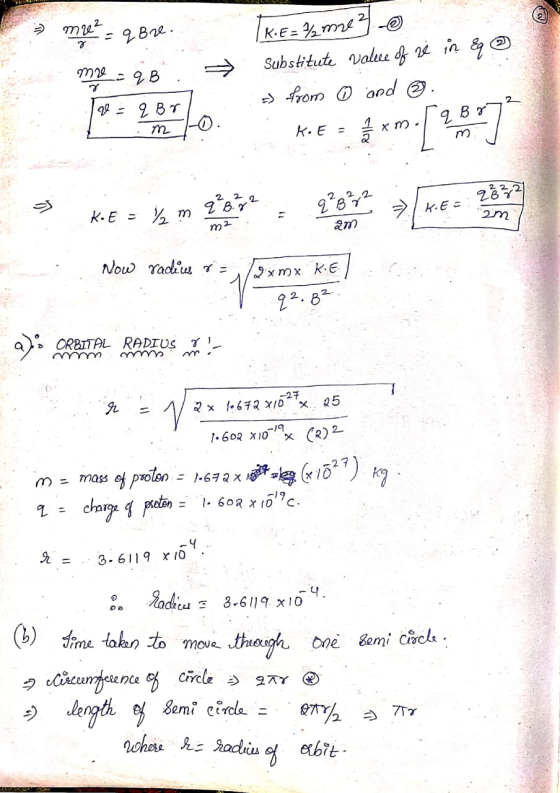

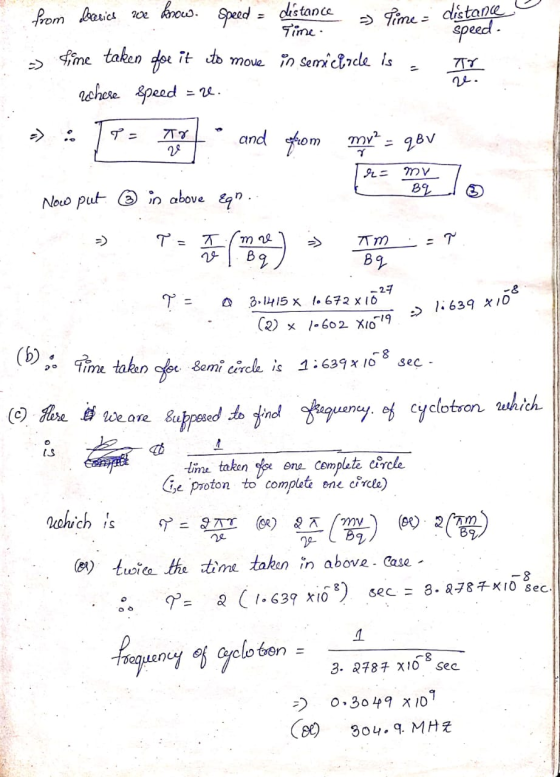

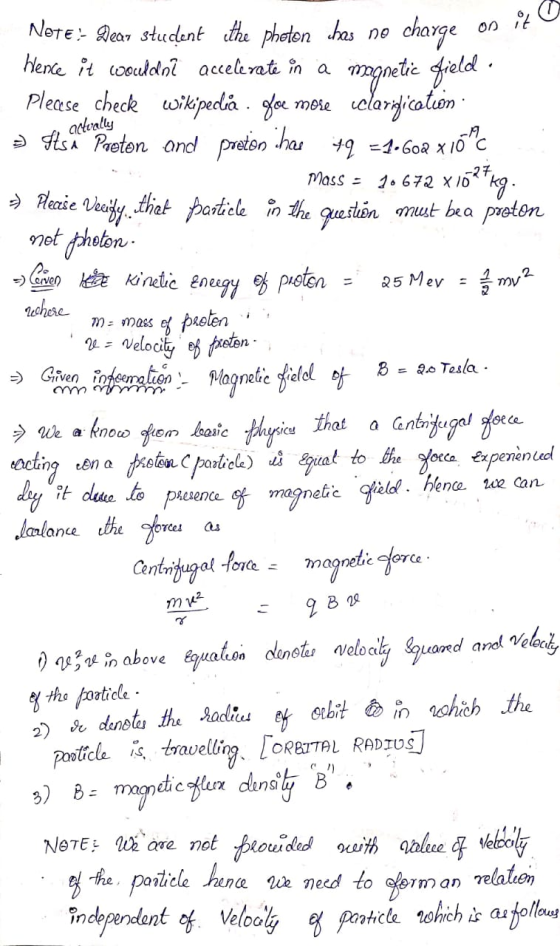

Answer #1

Please note in image no3 : magnitude of speed and velocity are one and the same. Hence in speed = distance /time I have used velocity instead of speed .speed is a scalar where as velocity is a vector and magnitude wise Both are same.

0 0
