1. (a) Consider a line charge distribution with constant linear charge density 'λ'. What is the...

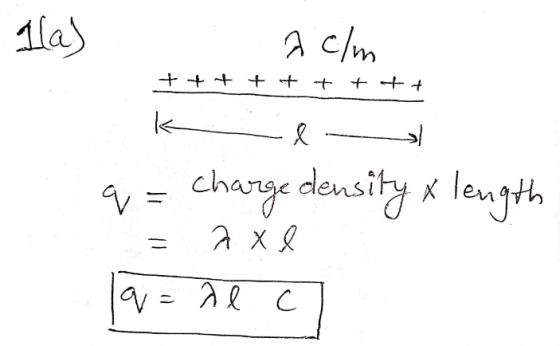

1. (a) Consider a line charge distribution with constant linear charge density 'λ'. What is the total charge in a length 'l' of this line?

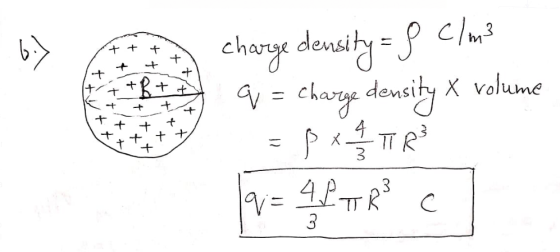

(b) Consider a spherical charge distribution with constant charge densityρ. What is the total charge in this sphere if it has radius 'R' ?
(c) Consider a surface charge distribution with charge density σ(r,θ) =σ0e−rsin2θ.(In this problem,r and θ are the normal polar coordinates.) This charge distribution is spread over a disk of radius 'a' . What is the total charge on the disk?
(d) You are told that in a cubical region of space the electric flux density is given by: D= ˆx2(x+y) + ˆy2(3x−2y). What is the total charge in this region of space?
Homework Answers
