A negative point charge is fixed at the origin. A positive charge q is placed at...

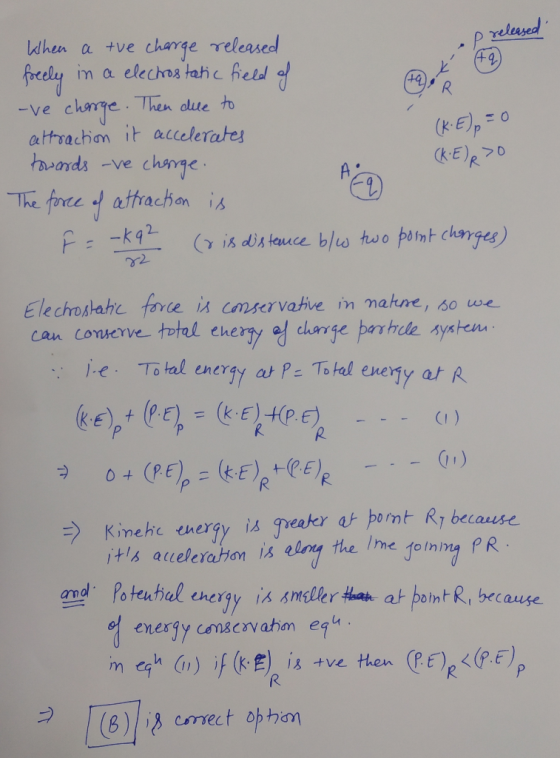

A negative point charge is fixed at the origin. A positive charge q is placed at point P, initially at rest. After it is released and allowed to move freely, it passes through point R. Which of the following is true about the charge q:
A. Its kinetic energy is larger at R than at P, and its potential energy is also larger at R than at P
B. Its kinetic energy is larger at R than at P, but its potential energy is smaller at R than at P.
C. Its kinetic energy is smaller at R than at P, and its potential energy is also smaller at R than at P.
D. Its kinetic energy is smaller at R than at P, but its potential energy is larger at R than at P.
E. Both its kinetic energy and its potential energy are the same at R as they are at P.
Homework Answers
