A refrigeration system, which can be modelled as being reversible, is to be used to cool...

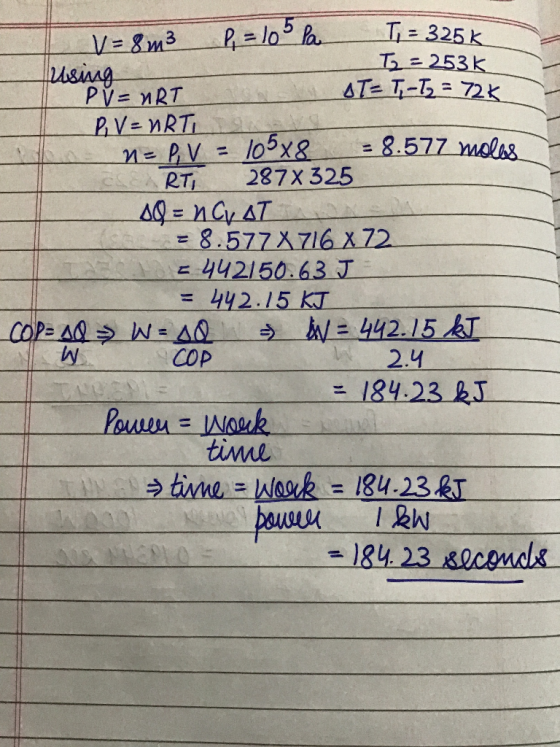

A refrigeration system, which can be modelled as being reversible, is to be used to cool an air-tight, air-filled cold-room from T1 = 325 K to T2 = 253 K. The volume of air in the room is V = 8 m3, its initial pressure is P1 = 105 Pa, its specific heat capacity at constant volume is cv = 716 J/kgK, and its gas constant is R = 287 J/kgK. Assume that the walls of the room are completely rigid and that there is no heat transfer between the air and the walls. The rate of work transfer INTO the refrigerator is 1 kW and its COP is fixed at a value of 2.4. Calculate the time taken to cool the room from T1 to T2. Give your answer in seconds.
Homework Answers
