Problem 10: The potassium bromide (KBr) molecule has an electric dipole moment of 3.50 × 10...
Problem 10: The potassium bromide (KBr) molecule has an electric
dipole moment of 3.50 × 10
-29
C⋅m. The molecule has a dipole moment because the lone 4s electron
of the potassium atom spends much of its time orbiting the bromine
nucleus (and thereby filling the 4p shell of bromine) – leaving the
potassium atom positively charged and the bromine atom negatively
charged (this is called “ionic bonding”).

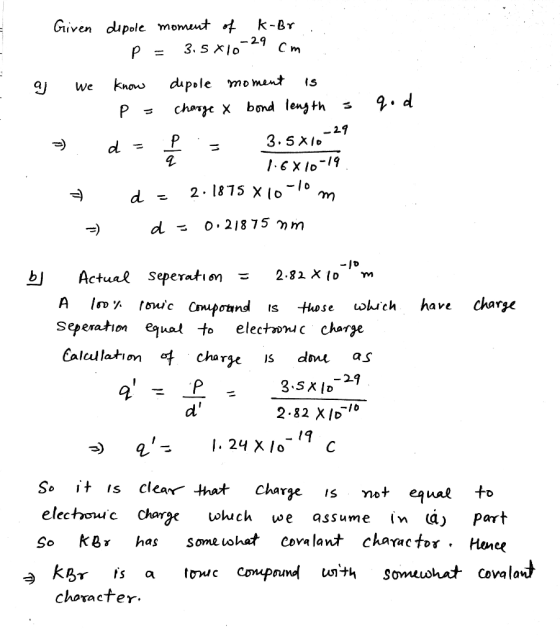

(a) Assuming for the moment that the potassium 4s electron spends
all of its time orbiting the bromine nucleus, use the known dipole
moment to calculate the physical separation between the potassium
and bromine nuclei in the molecule.
(b) The actual separation between the potassium and bromine nuclei
is 0.282 nm (2.82 × 10 -10 m). Use this value to describe the
nature of the ionic bond between the atoms – what are the effective
charges of the potassium and bromine atoms in the molecule, and how
do these compare with the assumption made in (a)?
Homework Answers
Add Answer to:
Problem 10: The potassium bromide (KBr) molecule has an electric
dipole moment of 3.50 × 10...
The dipole moment of the water molecule (H2O) is 6.17×10−30C⋅m. Consider a water molecule located at...
The dipole moment of the water molecule (H2O) is 6.17×10−30C⋅m. Consider a water molecule located at the origin whose dipole moment p⃗ points in the +x-direction. A chlorine ion (Cl−), of charge −1.60×10−19C, is located at x=3.00×10−9m. Assume that x is much larger than the separation d between the charges in the dipole, so that the approximate expression for the electric field along the dipole axis can be used. Find the magnitude of the electric force that the water molecule...
Question 8 of 10 > A particular organic molecule forms an electric dipole by possessing an...
Question 8 of 10 > A particular organic molecule forms an electric dipole by possessing an effective charge separation of 0.173 nm for a pair of +1.60 x 10 C charges. What is the magnitude of the molecule's electric dipole moment? electric dipole moment: Find the magnitude of the torque that acts on the molecule when it is immersed in a uniform electric field of 1.67 x 10 N/C with its electric dipole vector at an angle of 58.1" from...
1 Dipole Forces Water is a polar molecule. It has an electric dipole strength of p-6-10-30...
1 Dipole Forces Water is a polar molecule. It has an electric dipole strength of p-6-10-30 С . m. This is roughly equivalent to a proton and an electron separated by a distance of d- 4 10-11 m (about the radius of a hydrogen atom) In this problem, we will use Coulomb's law to compare the force between two protons, a proton and a water molecule, and two water molecules. Use the arrangement of the charges shown in the figure...
A sample of diamon has a density of 3.5 x 103 kg/m3 and a polarization of 10-7 C/m2 (a) What is the average dipole moment per atom? (b) What is the average separation between the centers of (+) and (...
A sample of diamon has a density of 3.5 x 103 kg/m3 and a polarization of 10-7 C/m2 (a) What is the average dipole moment per atom? (b) What is the average separation between the centers of (+) and (-) charge? The carbon nucleus has a charge +6lel and is surrounded by six electrons. Assume that the diameter of an atom is of the order of 10-10 m In.
A sample of diamon has a density of 3.5 x 103...
1 Dipole Forces Water is a polar molecule. It has an electric dipole strength of p...
1 Dipole Forces Water is a polar molecule. It has an electric dipole strength of p 6-10-30 C-n This is roughly equivalent to a proton and an electron separated by a distance of d 4.101 m (about the radius of a hydrogen atom) In this problem, we will use Coulomb's law to compare the force between two protons, a proton and a water molecule, and two water molecules. Use the arrangement of the charges shown in the figure for your...
Water is a polar molecule. It has an electric dipole strength of p-6-10 30 C-n. This...
Water is a polar molecule. It has an electric dipole strength of p-6-10 30 C-n. This is roughly equivalent to a proton and an electron separated by a distance of d 4-10-11 m (about the radius of a hydrogen atom) In this problem, we will use Coulomb's law to compare the force between two protons, a proton and a water molecule, and two water molecules. Use the arrangement of the charges shown in the figure for your calculations. (a) What...
The dipole moment of the water molecule (H2O) is 6.17×10−30 C.m. Consider a water molecule located...
The dipole moment of the water molecule (H2O) is 6.17×10−30 C.m. Consider a water molecule located at the origin whose dipole moment p? points in the +x-direction. A chlorine ion (Cl-), of charge −1.60 × 10−19 C, is located at x = 3 nm. Assume that x is much larger than the separation d between the charges in the dipole, so that the approximate expression for the electric field along the dipole axis can be used. (a) Find the magnitude...
The dipole moment of the water molecule (H2O)is 6.17 x 10-30 C- m. Consider a water...
The dipole moment of the water molecule (H2O)is 6.17 x 10-30 C- m. Consider a water molecule located at the origin whose dipole moment p points in the +X-direction. A chlorine ion (Cl), of charge 1.60 x 10-19 C, is located at 3.00 x 10-9m. Assume that ac is much larger than the separation d between the charges in the dipole, so that the approximate expression for the electric field along the dipole axis can be used. Find the magnitude...
The ammonia molecule has an electric dipole moment of 5 x 10-30Cm. It is placed in...
The ammonia molecule has an electric dipole moment of 5 x 10-30Cm. It is placed in a uniform electric field of magnitude 1.6 x 106N/C. What is the change in potential energy when the orientation of the molecule is changed so that the dipole moment goes from being perpendicular to being parallel with the electric field? Give your answer in units of 10-24 J with two digits after the decimal point. [Hint: Be careful with the sign of the change]
22 Unit 1 The Body as a Whole EXERCISE 2-2: Parts of the Atom, Molecule of Water (Text Figs. 2-2 and 2-6) Oxygen 1....
22 Unit 1 The Body as a Whole EXERCISE 2-2: Parts of the Atom, Molecule of Water (Text Figs. 2-2 and 2-6) Oxygen 1. This figure illustrates two hydrogen atoms and one oxygen atom. Write the names of the parts of the atom (electron, proton, neutron) on the appropriate lines in different, darker colors. 2. Color the electrons, protons, and neutrons on the figure in the appropriate colors. You should find 10 electrons, 10 protons, 0 and 8 neutrons in...
Question 8 of 10 > A particular organic molecule forms an electric dipole by possessing an effective charge separation of 0.173 nm for a pair of +1.60 x 10 C charges. What is the magnitude of the molecule's electric dipole moment? electric dipole moment: Find the magnitude of the torque that acts on the molecule when it is immersed in a uniform electric field of 1.67 x 10 N/C with its electric dipole vector at an angle of 58.1" from...
1 Dipole Forces Water is a polar molecule. It has an electric dipole strength of p-6-10-30 С . m. This is roughly equivalent to a proton and an electron separated by a distance of d- 4 10-11 m (about the radius of a hydrogen atom) In this problem, we will use Coulomb's law to compare the force between two protons, a proton and a water molecule, and two water molecules. Use the arrangement of the charges shown in the figure...
A sample of diamon has a density of 3.5 x 103 kg/m3 and a polarization of 10-7 C/m2 (a) What is the average dipole moment per atom? (b) What is the average separation between the centers of (+) and (-) charge? The carbon nucleus has a charge +6lel and is surrounded by six electrons. Assume that the diameter of an atom is of the order of 10-10 m In.
A sample of diamon has a density of 3.5 x 103...
1 Dipole Forces Water is a polar molecule. It has an electric dipole strength of p 6-10-30 C-n This is roughly equivalent to a proton and an electron separated by a distance of d 4.101 m (about the radius of a hydrogen atom) In this problem, we will use Coulomb's law to compare the force between two protons, a proton and a water molecule, and two water molecules. Use the arrangement of the charges shown in the figure for your...
Water is a polar molecule. It has an electric dipole strength of p-6-10 30 C-n. This is roughly equivalent to a proton and an electron separated by a distance of d 4-10-11 m (about the radius of a hydrogen atom) In this problem, we will use Coulomb's law to compare the force between two protons, a proton and a water molecule, and two water molecules. Use the arrangement of the charges shown in the figure for your calculations. (a) What...
The dipole moment of the water molecule (H2O)is 6.17 x 10-30 C- m. Consider a water molecule located at the origin whose dipole moment p points in the +X-direction. A chlorine ion (Cl), of charge 1.60 x 10-19 C, is located at 3.00 x 10-9m. Assume that ac is much larger than the separation d between the charges in the dipole, so that the approximate expression for the electric field along the dipole axis can be used. Find the magnitude...
22 Unit 1 The Body as a Whole EXERCISE 2-2: Parts of the Atom, Molecule of Water (Text Figs. 2-2 and 2-6) Oxygen 1. This figure illustrates two hydrogen atoms and one oxygen atom. Write the names of the parts of the atom (electron, proton, neutron) on the appropriate lines in different, darker colors. 2. Color the electrons, protons, and neutrons on the figure in the appropriate colors. You should find 10 electrons, 10 protons, 0 and 8 neutrons in...
