Problem 2 (5 pts): There is a square ring of positive charge (i.e., line charge of...

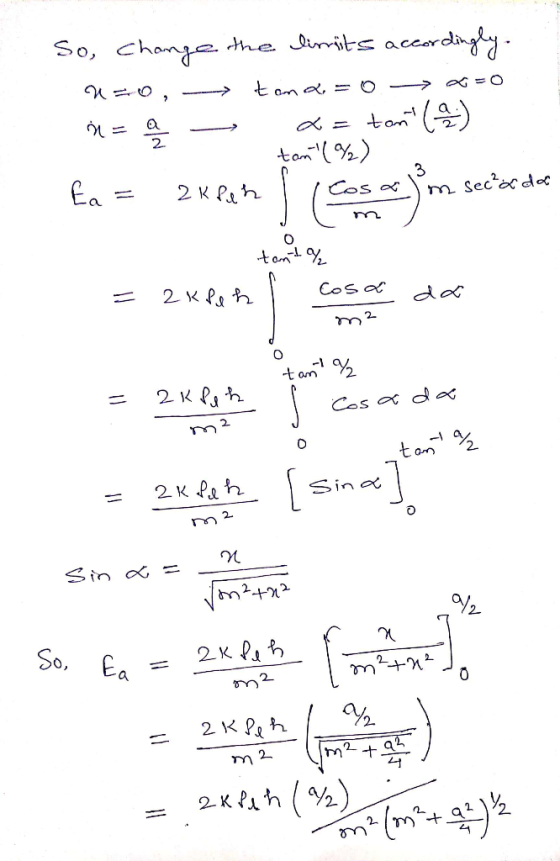

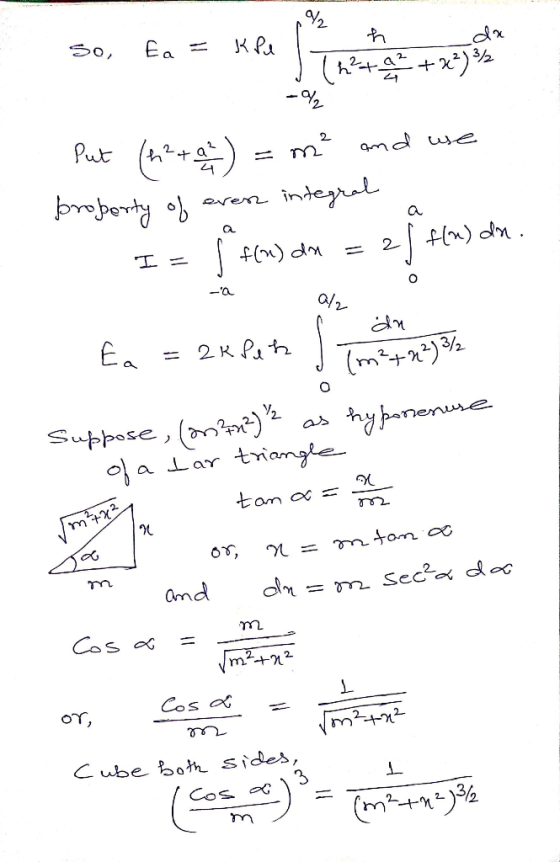

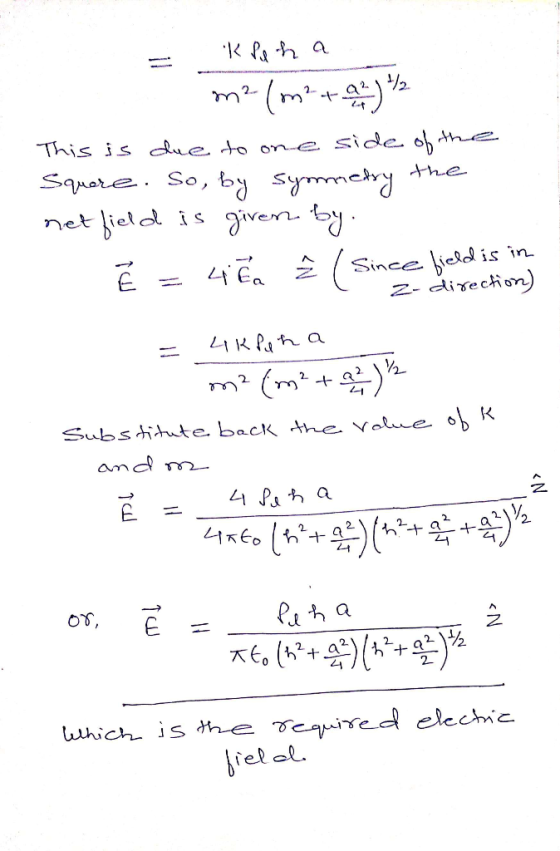

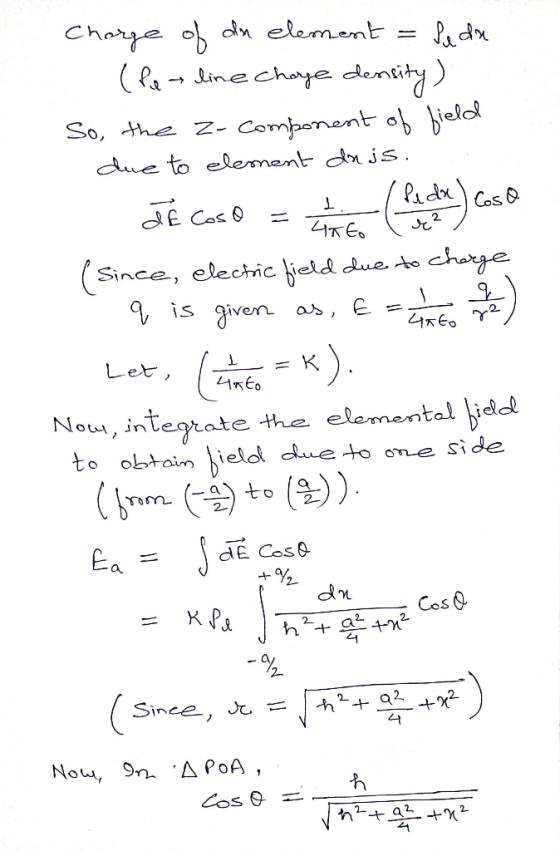

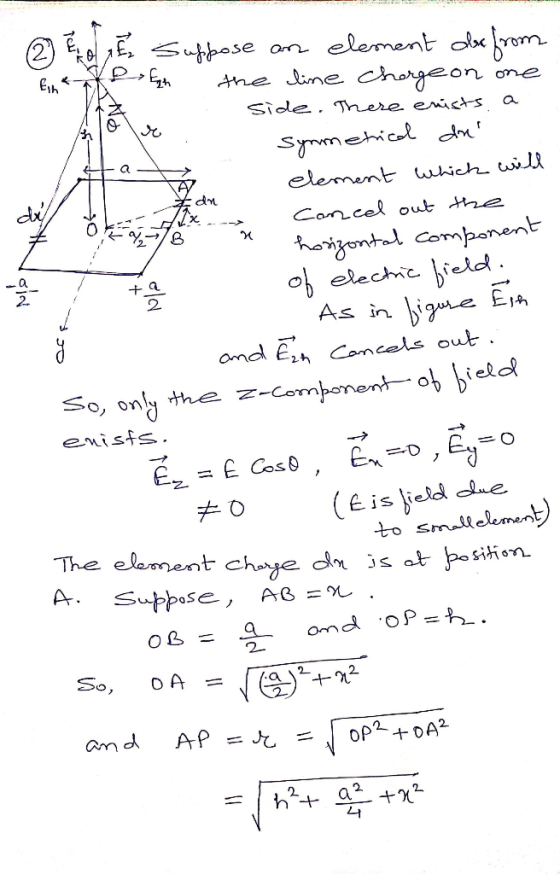

Problem 2 (5 pts): There is a square ring of positive charge (i.e., line charge of uniform density ρl) with side length of a located in the xy-plane with its center at the origin. Calculate the electric field E at a height of h on the z-axis.
Homework Answers
Add Answer to:
Problem 2 (5 pts): There is a square ring of positive charge
(i.e., line charge of...
Consider a wide, nearly flat square with uniform charge density p. The square is centered at...
Consider a wide, nearly flat square with uniform charge density p.
The square is centered at the origin and is lying parallel to the
xy plane. It has side length a and thickness h h<<a, so the
top surface of the square is at z=h/2 and the bottom is at z=-h/2.
Find a simple approximate (monomial) expression for the magnitude
of the electric field on the z-axis for
(1). 0 < z < h/2
(2). h/2 < z << a...
Problem 4 A point charge -q is located at the origin. The point charge is surrounded...
Problem 4 A point charge -q is located at the origin. The point charge is surrounded by a ring with uniform line charge density and radius a. The charged ring sits in the x-y plane and is centered on the origin. a) Calculate the electric potential along the z-axis using a reference point at o using Coulomb's law for V. (i.e. do not find the electric field first.) b) Use E= -VV to calculate the electric field along the z-axis....
A point charge -q is located at the origin. The point charge is surrounded by a...
A point charge -q is located at the origin. The point charge is surrounded by a ring with uniform line charge density λ and radius a. The charged ring sits in the x-y plane and is centered on the origin. a) Calculate the electric potential along the z-axis using a reference point at ∞ using Coulomb’s law for V. (i.e. do not find the electric field first.) b) Use E = −∇V to calculate the electric field along the z-axis....
Problem 2. (10 pts.) A continuous line of charge lies along the x axis, extending from...
Problem 2. (10 pts.) A continuous line of charge lies along the x axis, extending from +a to positive infinity. The line carries positive charge with a uniform linear charge density io. What is the magnitude of the electric field at the origin?
1. An infinite line of uniform positive charge runs along the x axis and has a...
1. An infinite line of uniform positive charge runs along the x axis and has a line charge density of λ=20.8 m nC . Consider the point (0 m, 2.00 m) which is located 2.00 meters above the infinite line. What is the magnitude of the electric field at this point? 2. An infinite horizontal plane of uniform negative charge sits at a height ofz=0. For a point at a height of z=−3m (i.e., 3 meters below the infinite plane),...
A charged disk and a charged ring are centered at the origin in the free space...
A charged disk and a charged ring are centered at the origin in the free space as shown in figure 4. Bothe changed elements exists in the xy plane. The disk has a radius a and carries a uniform surface charge density of Ps. The ring has a radius 2a and carries a uniform line charge density Pe. Find the following: a) The electric field intensity on z-axis and determine where the electric field is zero b) The electric potential...
Ring of Charge A uniform circular ring of charge Q =-5.70 C and radius R centered...
Ring of Charge A uniform circular ring of charge Q =-5.70 C and radius R centered on the origin as shown in the figure. 1.28 cm is located in the x-y plane, Part A What is the magnitude of the electric field, E at the origin? The direction of the electric field, E at the origin? -Y Some other direction -Z The electric field is zero -X +Z +X +Y Submit Answer Tries 0/5
Consider a charged ring with radius R and uniform line charge density +λ.
Consider a charged ring with radius R and uniform line charge density +λ.(a) Find the electric field at the center O of the ring. (b) What is the electric field at a field point P which is on the central axis with a distance z above the center? (c) Show that in the limit when z » R, the electric field reduces to the form Does this result physically make sense? Explain. (d) Using binomial approximation, , find the electric field at points along the...
PROBLEM S: A line charge has a uniform charge Q distributed along a square of side...
PROBLEM S: A line charge has a uniform charge Q distributed along a square of side a. Find the electric field above the center of the square at a distance a from each vertex of the square
Chapter 22, Problem 024 A thin nonconducting rod with a uniform distribution of positive charge Q...
Chapter 22, Problem 024 A thin nonconducting rod with a uniform distribution of positive charge Q is bent into a circde of radius R (see the figure). The central p with the origin at the center of the ring. What is the magnitude of the electric field due to the rod at (a) 2-0 and (b)z- axis through the ring is a z axis, (c) In terms of R, at what positive value of t is that magnitude maximum? (d)...
Consider a wide, nearly flat square with uniform charge density p.
The square is centered at the origin and is lying parallel to the
xy plane. It has side length a and thickness h h<<a, so the
top surface of the square is at z=h/2 and the bottom is at z=-h/2.
Find a simple approximate (monomial) expression for the magnitude
of the electric field on the z-axis for
(1). 0 < z < h/2
(2). h/2 < z << a...
Problem 4 A point charge -q is located at the origin. The point charge is surrounded by a ring with uniform line charge density and radius a. The charged ring sits in the x-y plane and is centered on the origin. a) Calculate the electric potential along the z-axis using a reference point at o using Coulomb's law for V. (i.e. do not find the electric field first.) b) Use E= -VV to calculate the electric field along the z-axis....
Problem 2. (10 pts.) A continuous line of charge lies along the x axis, extending from +a to positive infinity. The line carries positive charge with a uniform linear charge density io. What is the magnitude of the electric field at the origin?
A charged disk and a charged ring are centered at the origin in the free space as shown in figure 4. Bothe changed elements exists in the xy plane. The disk has a radius a and carries a uniform surface charge density of Ps. The ring has a radius 2a and carries a uniform line charge density Pe. Find the following: a) The electric field intensity on z-axis and determine where the electric field is zero b) The electric potential...
Ring of Charge A uniform circular ring of charge Q =-5.70 C and radius R centered on the origin as shown in the figure. 1.28 cm is located in the x-y plane, Part A What is the magnitude of the electric field, E at the origin? The direction of the electric field, E at the origin? -Y Some other direction -Z The electric field is zero -X +Z +X +Y Submit Answer Tries 0/5
PROBLEM S: A line charge has a uniform charge Q distributed along a square of side a. Find the electric field above the center of the square at a distance a from each vertex of the square
Chapter 22, Problem 024 A thin nonconducting rod with a uniform distribution of positive charge Q is bent into a circde of radius R (see the figure). The central p with the origin at the center of the ring. What is the magnitude of the electric field due to the rod at (a) 2-0 and (b)z- axis through the ring is a z axis, (c) In terms of R, at what positive value of t is that magnitude maximum? (d)...
