Question

A wire is formed into a circle having a diameter of 10.0 cm and is placed...

A wire is formed into a circle having a diameter of 10.0 cm
and is placed in a uniform magnetic field of 2.00 mT. The wire carries a
current of 4.00 A. Find the maximum torque on the wire.

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

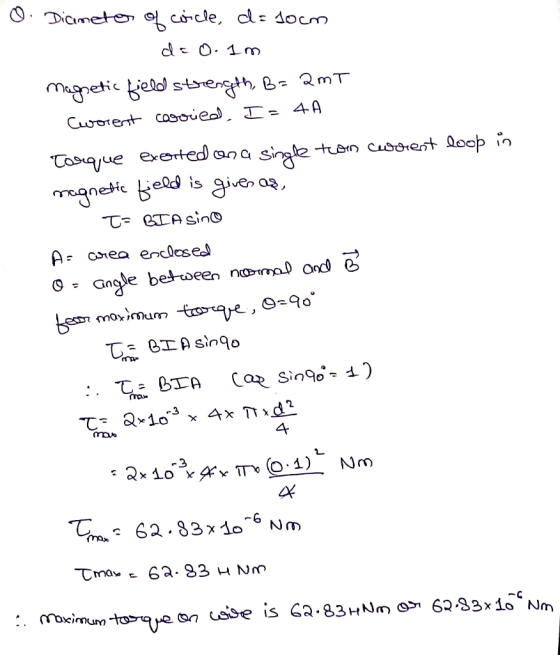

Answer #1


0 0
Add a comment
Know the answer?
Add Answer to:
A wire is formed into a circle having a diameter of 10.0 cm and is placed...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • A wire is formed into a circle having a diameter of 10.0 cm and placed in...

    A wire is formed into a circle having a diameter of 10.0 cm and placed in a uniform magnetic field of 4.80 mT. The wire carries a current of 7.50 A. Find the minimum potential energy of the wire-field system. (Your result must be in uj's and without decimals. Maximum of 2% of error is accepted in your answer. Take n = 3.14.)

  • I need help answering 18, 19, and 20. Thanks! A wire is formed into a circle...

    I need help answering 18, 19, and 20. Thanks! A wire is formed into a circle having a diameter of 18.0 cm and placed in a uniform magnetic field of 3.10 mT. The wire carries a current of 5.00 A. Find the maximum torque on the wire. Find the range of potential energies of the wire-field system for different orientations of the circle A long solenoid that has 1,180 turns uniformly distributed over a length of 0.440 m produces a...

  • A 150-turn rectangular coil having dimensions of 10.0 cm by 5.0 cm is placed in a...

    A 150-turn rectangular coil having dimensions of 10.0 cm by 5.0 cm is placed in a uniform magnetic field of magnitude of 0.8 T. Assume the max torque exerted on the wire by the magnetic field is 0.12N*m . Find the magnitude of the torque on the coil when the magnetic field makes an angle of 31º with the normal to the plane of the coil .06180457 0.13597005 1.23609138 .61804569

  • A single-turn wire loop 10 cm in diameter carries a 14 A current. It experiences a...

    A single-turn wire loop 10 cm in diameter carries a 14 A current. It experiences a torque of 2.5×10−2 N⋅m when the normal to the loop plane makes a 37 ∘ angle with a uniform magnetic field. What is the magnetic field strength? B = ____________ mT

  • A circular coil of wire of 200 turns and diameter 2.0 cm carries a current of...

    A circular coil of wire of 200 turns and diameter 2.0 cm carries a current of 5.0 A. It is placed in a magnetic field of 0.9T with the plane of the coil making an angle of 30° with the magnetic field. What is the magnetic torque on the coil? A circular coil of wire of 200 turns and diameter 2.0 cm carries a current of 5.0 A. It is placed in a magnetic field of with the plane of...

  • A 60 cm long wire is bent into a circle. The circle of wire is placed...

    A 60 cm long wire is bent into a circle. The circle of wire is placed flat on a table and a uniform magnetic field is applied to the whole table which points upwards. The magnetic field has strength which varies with time t as B=0.025 t^2 T/s^2. The wire has a resistance of 45 ohms. what is the current induced in the circuit at t= 1.5s? In which direction does it flow?

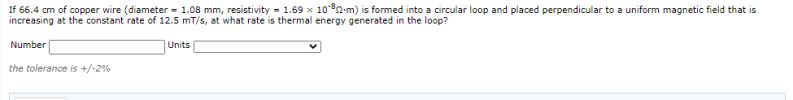

  • If 66.4 cm of copper wire (diameter = 1.08 mm, resistivity = 1.69 10-82.m) is formed...

    If 66.4 cm of copper wire (diameter = 1.08 mm, resistivity = 1.69 10-82.m) is formed into a circular loop and placed perpendicular to a uniform magnetic field that is increasing at the constant rate of 12.5 mT/s, at what rate is thermal energy generated in the loop? Number Units the tolerance is +/-2%

  • Question 14 3 pts A 150-turn rectangular coll having dimensions of 10.0 cm by 5.0 cm...

    Question 14 3 pts A 150-turn rectangular coll having dimensions of 10.0 cm by 5.0 cm is placed in a uniform magnetic field of magnitude of 0.8 T. Assume the max torque exerted on the wire by the magnetic field is 0.12 N-m. Find the magnitude of the torque on the coil when the magnetic field makes an angle of 31' with the normal to the plane of the coil. 0.06180457.mc014-2.ips 0.61804569.mc014-3 123609138mc014-410 0.13597005 014-5.108 None of the above

  • A 19.4 cm diameter circular loop of wire is placed with the plane of the loop...

    A 19.4 cm diameter circular loop of wire is placed with the plane of the loop parallel to the uniform magnetic field between the pole pieces of a large magnet. When 3.50 A flows in the coil, the torque on it is 0.145 mN. What is the magnetic field strength?

  • A 18.0 cm -diameter circular loop of wire is placed with the plane of the loop...

    A 18.0 cm -diameter circular loop of wire is placed with the plane of the loop parallel to the uniform magnetic field between the pole pieces of a large magnet. When 5.60 A flows in the coil, the torque on it is 0.120 m⋅N . What is the magnetic field strength?
