Modify the structures (if necessary) to show the predominant form of the amino acid tyrosine at each pH. Be sure to include the proper number of hydrogen atoms on heteroatoms and the correct formal charges on atoms.
At pH 2.5 =
At pH 12.0 =

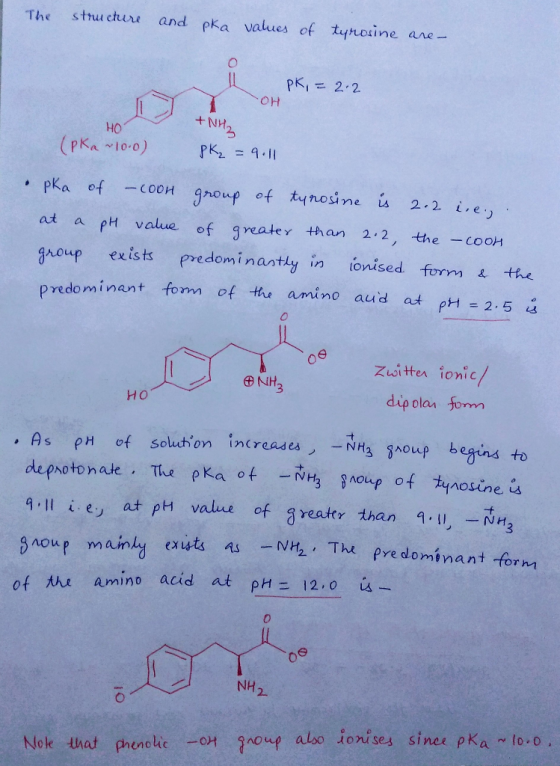

ANSWER:
Amino acids contain both -COOH and -NH2 groups and can exist in aqueous solution in cationic form(-NH3+ group), Anionic form(-COO-) form or zwitterionic/dipolar form. The predominant form of an amino acid depends upon the pH of solution and on the nature of the amino acid.
At very low pH(~0) i.e., in very strongly acidic solutions, all amino acids exist primarily in cationic form, and in strongly basic solutions they are present as anions.

Modify the structures (if necessary) to show the predominant form of the amino acid tyrosine at...
Attempt 2 Modify the structures (if necessary) to show the predominant form of the amino acid tyrosine at each pH. Be sure to include the proper number of hydrogen atoms on heteroatoms and the correct formal charges on atoms. At PH 2.9 At pH 13.8 Select Draw Rings wore Select Draw Rings More Erase CHNO - Qlala ca - Qala
modify the amino acid-adding or removing atoms or
bonds and adding charges to
(lysine) to show the predominant form at pH 7
N - H H - f- f_ f _ —; C --- II
1. The amino acid structures as shown in lecture are the predominant forms at physiological pH (7.4). a. Draw the predominant form of valine when the pH = 7.4 b. Draw the predominant form of valine when the pH = 1.0 c. Draw the predominant form of valine when the pH = 12.0 d. What is the total charge of the predominant form of valine when the pH = 7.4? e. What is the total charge of the predominant form...
Modify methionine, below, to show its zwitterion form. Modify the amino acid by adding or removing atoms or bonds, and by adding charges where appropriate. If you make a mistake or wish to reset the image, click on the red arrows in the molecule menu.
1. Add curved arrows to both structures
to show the delocalization of electron pairs needed to form the
other resonance contributor.
2a.) Draw the predominant resonance
contributor for the following compound; include lone pairs of
electrons, formal charges, and hydrogen atoms.
b) Add curved arrows to both structures
to show the delocalization of electron pairs.
Consider the same amino acid, but with the carbon atoms labeled Identify the a-carbon. O I +7 H +/ O I O H- N- H H Modify the structure to show the predominant form of the amino acid at pH 1. Select Draw Rings More Eras O = N OH
What is the predominant form of pyruvic acid (pKa =2.50) and lactic acid (pKa = 3.86) at physiological pH (7.4)? Draw the predominant structure of each. In which amino acid does the R group bond to the amino group?
The amino acid Tyrosine (H3Tyr) has pK1 = 2.41, pK2 = 8.67, and pK3 = 11.01. (a) What is the principal form of Tyrosine at pH 9.5 and why? (b) What is the second prominent species at pH 6.5 and pH 10.8? *Please show all work! Thank you!!
Which is the predominant form of the amino acid serine at pH =1 ? А HOCH, CHCO *NH çao B 9. COCH=CHCOH NH HOCH, CHČO NH sçues D носненсон NH ОА Ос OD
Question B1 The zwitterionic structure for the amino acid phenylalanine is shown below (pKai = 2.0, pka2 = 8.8). + NH3 phenylalanine (a) On the graph below, draw an accurate speciation diagram for this amino acid over the pH range from 1-12. [4 marks] fraction mole 1.0 2.0 3.0 4.0 5.0 8.0 9.0 10.0 11.0 12.0 6.0 7.0 pH (b) Draw accurate chemical structures below (showing correct formal charges) for the forms of phenylalanine that are dominant at each pH....
