11. 2. A 16F873A microcontroller is supplied with 5 V. Its ADC is connected so that...

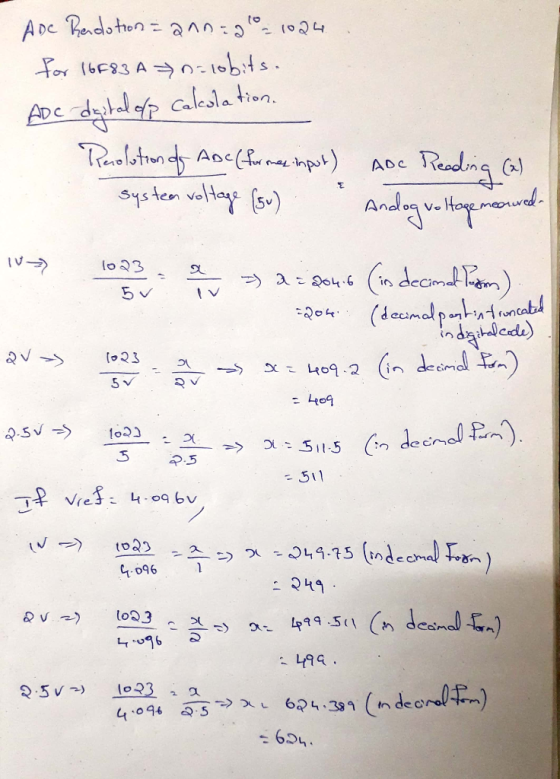

11. 2. A 16F873A microcontroller is supplied with 5 V. Its ADC is connected so that the voltage reference is taken from its supply voltage and ground. (a) What is the ADC resolution, and what is the value of the ADC digital output, for each of 1.000 V, 2.000 V and 2.500 V? (b) Repeat (a) for if the voltage reference has been changed to an external one, of value 4.096 V.
Homework Answers
Add Answer to:
11. 2. A 16F873A microcontroller is supplied with 5 V. Its ADC
is connected so that...
11.5 A temperature sensor is connected to a 16F873A ADC input. The sensor has an output...
11.5 A temperature sensor is connected to a 16F873A ADC input. The sensor has an output of 40 mV/?C. The ADC operates with a 4.096 V reference. (a) For a certain temperature value, the ADC output reads 1010011100. What is the equivalent temperature for this reading? (b) The measured temperature is to be displayed on a digital display, showing values in the range 00.0?C to 99.9?C. Describe what data manipulation steps can be taken to achieve this, using fixed-point arithmetic...
(a) We have an analogue to digital converter (ADC) described as 8 bit, with a 3V reference and 0V offset. What is the resolution, expressed in millivolts? [2] (b) For an input voltage of 0.6V, what i...
(a) We have an analogue to digital converter (ADC) described as
8 bit, with a 3V reference and 0V offset. What is the resolution,
expressed in millivolts? [2]
(b) For an input voltage of 0.6V, what is the digital output
value of the ADC described in (a)? Express your answer in both
binary and hexadecimal. [3]
(c) An industrial oven has a thermometer that outputs a voltage
from 0 to 1V for a corresponding range of temperatures of 0 to...
a. An 8-bit successive approximation ADC has a reference voltage of 10 V. Calculate the resolution...
a. An 8-bit successive approximation ADC has a reference voltage of 10 V. Calculate the resolution of this ADC. b. The analog input voltage to the ADC in part a is 6 V. Can this input voltage be represented exactly? What digital code represents the closest value to 6 V? What exact analog value does this represent? Calculate the percent error of this conversion.
