Simplify the expression to get a (SOP) sum of product result with 3 terms. F =...

Question

Question

Simplify the expression to get a (SOP) sum of product result with 3 terms.

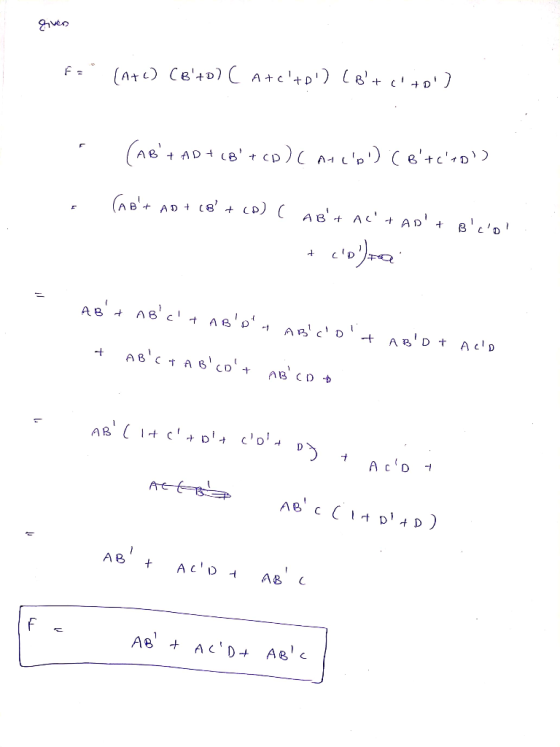

F = (A + C)(B’ + D)(A + C’ + D’)(B’ + C’ + D’)

engineering Electrical-Engineering

Answer 1

Answer #1

Answer 2

Answer #1

Answer 3
