Problem (3): Huffman Coding
A message contains n = 5 symbols (A, B, C, D, E) with probabilities P = (1/2, 1/4, 1/8, 1/16, 1/16), respectively.
• Find a variable length Huffman coding for the 5
symbols
• Find the average code length < L > for the obtained
codes

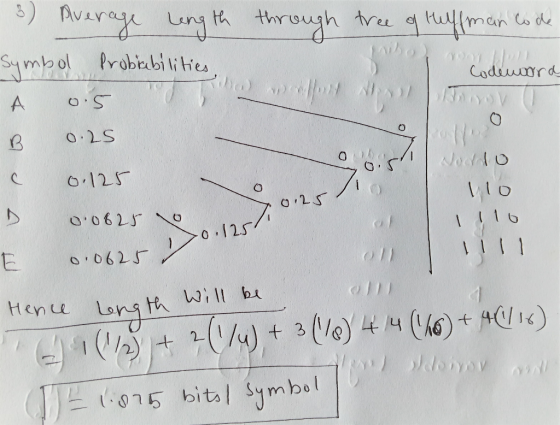

• Show that < L > can also be obtained by summing the
probabilities of the internal nodes in the Huffman tree.
• Find the coding efficiency for the obtained code
words.
Homework Answers
The Average Length Calculation and Variable Length Hufman Code Length Calculation
