Using three vibrations for water (C2v). For each of these three vibrations, propose analogous vibrations for...

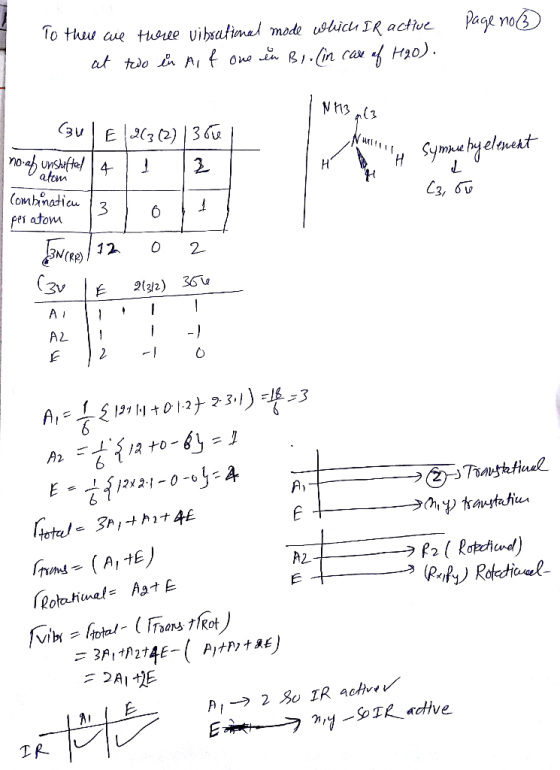

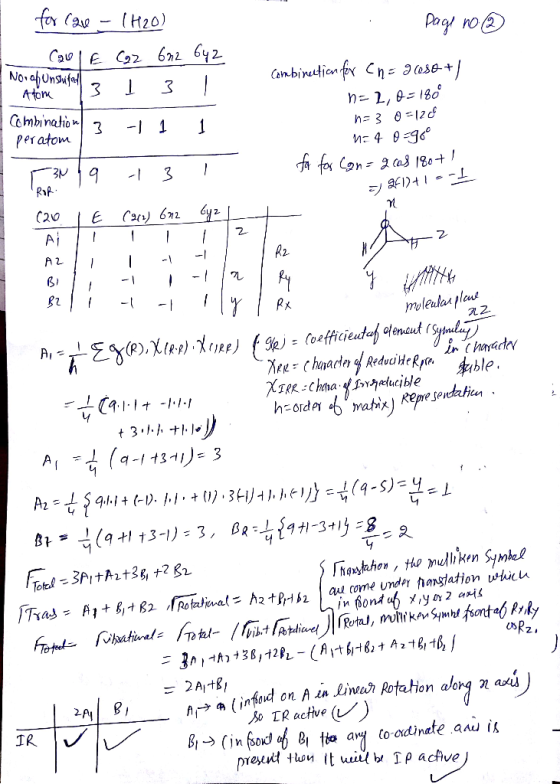

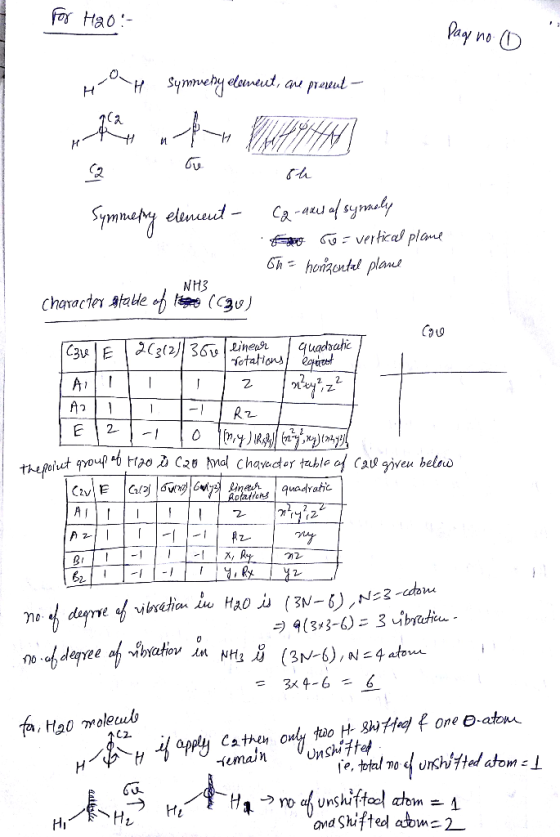

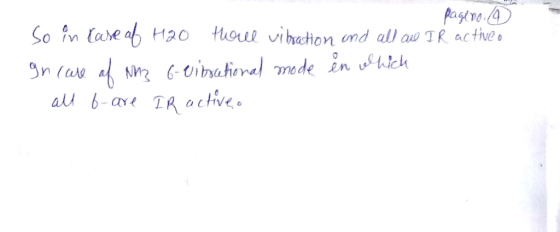

Using three vibrations for water (C2v). For each of these three vibrations, propose analogous vibrations for NH3 (C3v) and determine if they are IR active.

science chemistry

Add a comment Improve this question Transcribed image text

Answer 1

Answer #1

Add a comment

Answer 2
