I need help with a physics problem my teach gave me. The question she gave us...
I need help with a physics problem my teach gave me. The question she gave us is as follows:

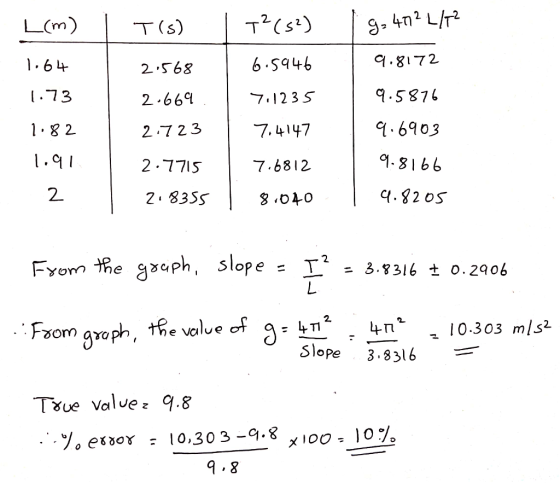

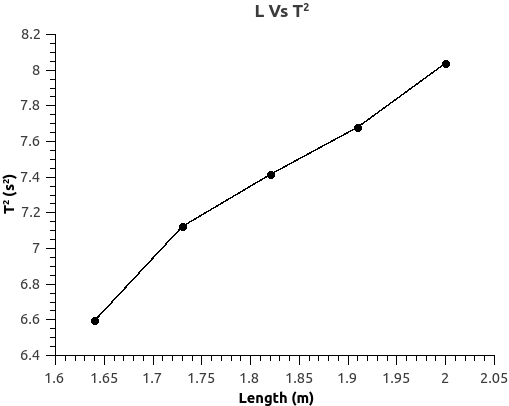

Using Newton's laws, the period T is related to the length L and gravitational acceleration g by T= 2π √(L/g). Using your Period vs. Length data(shown below), produce a graph of T2 vs. L.
Follow up question : What relationship appears to exist to between T2 and L? From this graph, determine the value and uncertainty for the gravitational acceleration. Compare your experimental value of g to the theoretically accepted value.
| Length (m) | T (s) |
| 2m | 2.8355 |
| 1.91m | 2.7715 |
| 1.82m | 2.723 |
| 1.73m | 2.669 |
| 1.64m | 2.568 |
