Question

How to get this formula about projectile launch angle using maximum height and range? θ =...

How to get this formula about projectile launch angle using maximum height and range?

θ = arctan(4h/R)

where h is the max height and R is the range

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

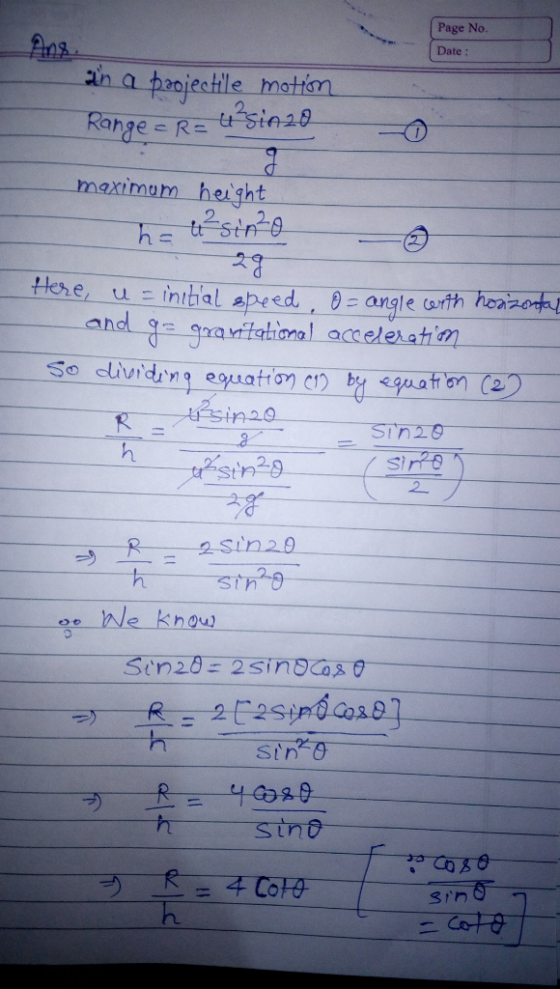

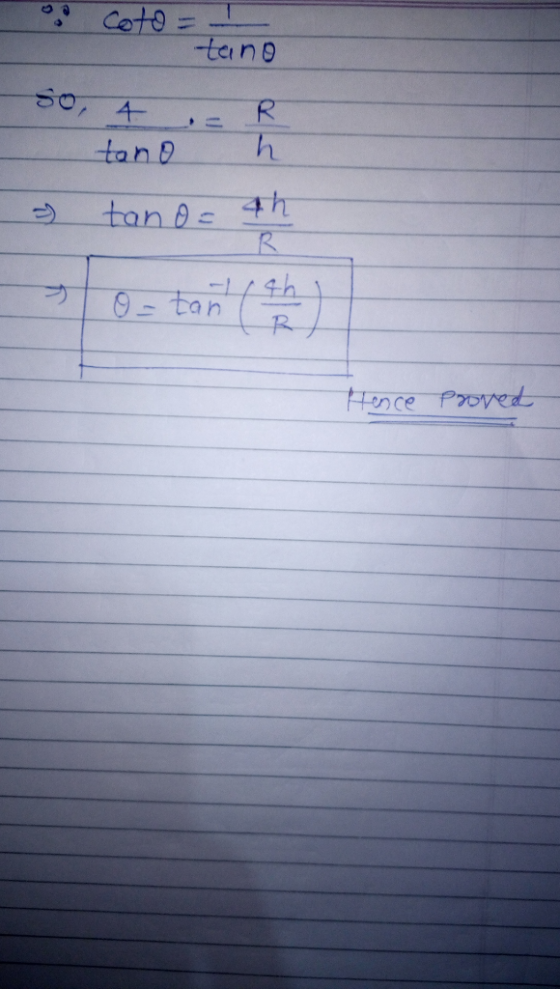

Answer #1

0 0
Add a comment
