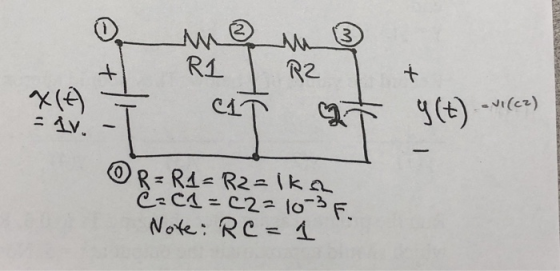

R1R2 七 七
Homework Answers
Add Answer to:

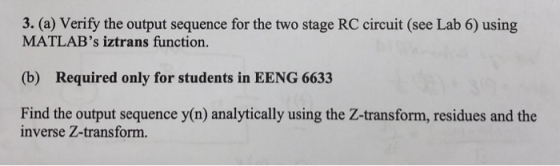

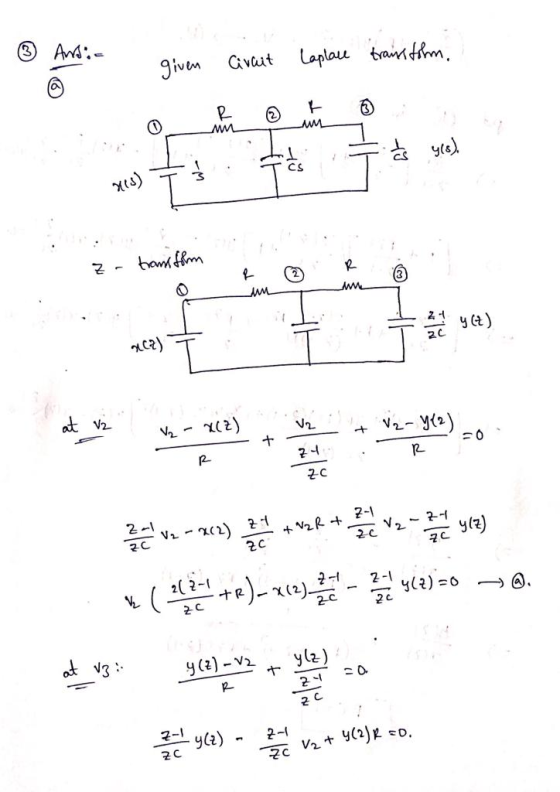

3. (a) Verify the output sequence for the two stage RC circuit (see Lab 6) using MATLAB's iztrans...
