For the shown loaded Frame, and given Reactions

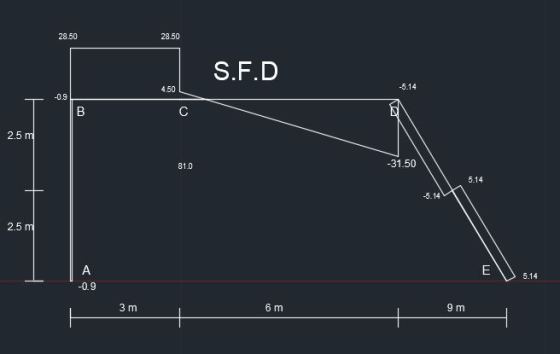

1- Draw the S.F.D

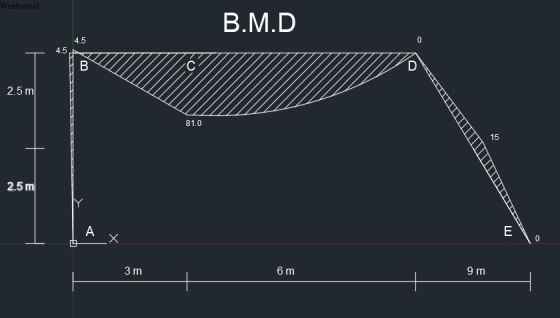

2- Draw the B.M.D
Show all values on diagrams with a neat and a reasonable scale of drawing

Determine the magnitudes of all pin reactions for the frame loaded as shown. 880 N 355 705 31° 61° Answers: A-

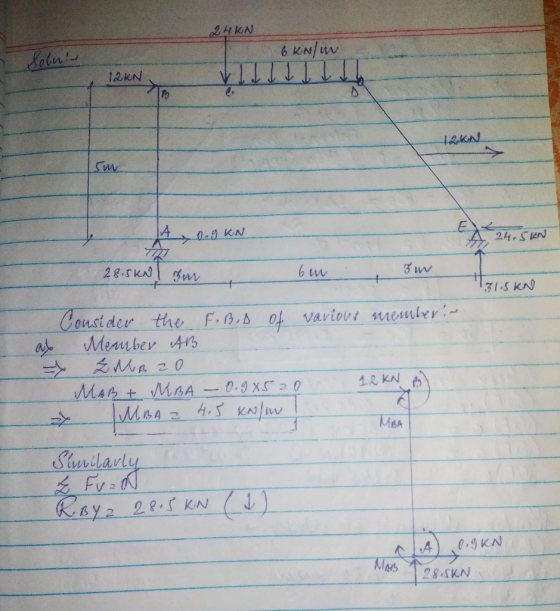

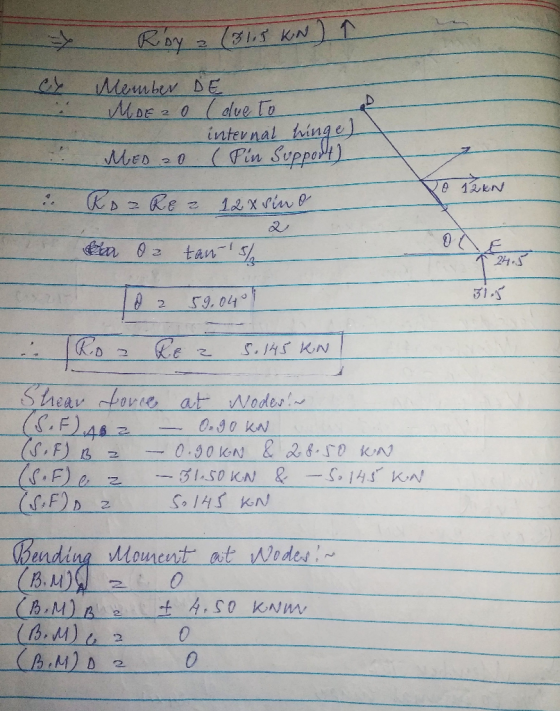

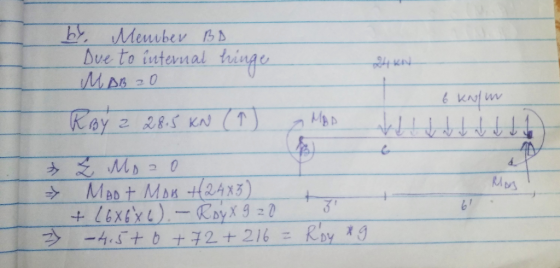

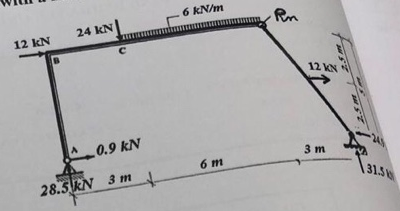

For the frame shown below:1- Calculate the reactions at the supports.2- Draw the Normal force, the Shear force and the Bending moment
diagrams. Indicate all critical values3- Show the equilibrium at node B.4- Develop the analytical expression for the normal force, the
shear force and the bending moment diagram for memberBC.The 4 Kips/ft load is applied perpendicular to member
AB.
The cantilever beam below is loaded as shown. The complete FBD with support reaction is given as the first step of the solution. MA-17.75 kN-m 0.5 kN/m 4 kN-m A-O 1 A-1.5 KN 2 m 3 m 2 m 5 m ND: a) Draw the shear (V) and moment (M) diagrams. b) Label all significant values on the shear and moment diagrams (i.e. at Om, 2m, 5m, 7m)
The cantilever beam below is loaded as shown. The complete FBD with support reaction is given as the first step of the solution. MA-17.75 kN-m 0.5 kN/m 4 kN-m A-O 1 A-1.5 KN 2 m 3 m 2 m 5 m ND: a) Draw the shear (V) and moment (M) diagrams. b) Label all significant values on the shear and moment diagrams (i.e. at Om, 2m, 5m, 7m)
make sure not to copy previous work
For the frame shown below: 1- Calculate the reactions at the supports 2- Show the equilibrium at nodes B and C 3- Draw the normal force, the shear force and the bending moment diagrams 2 KN 3 KN 2 m 2 m 3 m 4 m
For the frame shown below: 1- Calculate the reactions at the supports 2- Show the equilibrium at nodes B and C 3- Draw the normal force, the...
7) A beam is supported and loaded as shown below. Find the reactions, maximum shear, maximum moment, maximum slope, maximum bending stress, and maximum deflection for the data given. Draw loading, shear, moment, slope, and deflection diagrams. Page 2 of 3 Givens: 0.70 m a 0.10 m b 0.60 m w 80 N/m F 500 N 2.1 x 10- m c 6.5 x 10-3m E=207 GPa
7) A beam is supported and loaded as shown below. Find the reactions, maximum...
A compound frame is subjected to a set of loads as shown in Figure 4 20 kips w= 5 kips/ft OTO Behinge Figure 4: Compound frame with UDL and point load Draw the shear and moment diagrams for each member of the frame. Hints: (1) Break the frame at hinge B to solve for all the reactions (2) Treat segment BCD as a single member
Problem 3.(4 points) For the determinate frame shown below calculate the reactions and draw the final shear, moment, and deflected shape diagrams /y HiNGe
Q4: Using slope-deflection method, determine the
reactions of the supports for the frame shown in Figure (4). Then
draw shear and bending moment diagrams for the frame . E is
constant.
I need it in 30min or 1 h
SA E DI 10 ft B-10 k 5 ft A 20 ft +5 Sft E = constant E
Statics
Given: A truss is loaded as shown Drawing is to scale SOOON 47.67 3000N using method of sections Find Forces in elements 34
