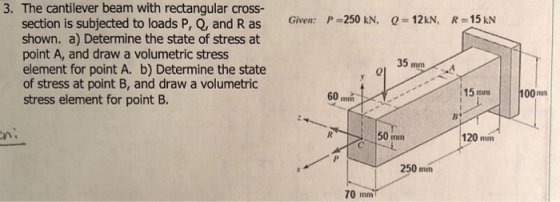

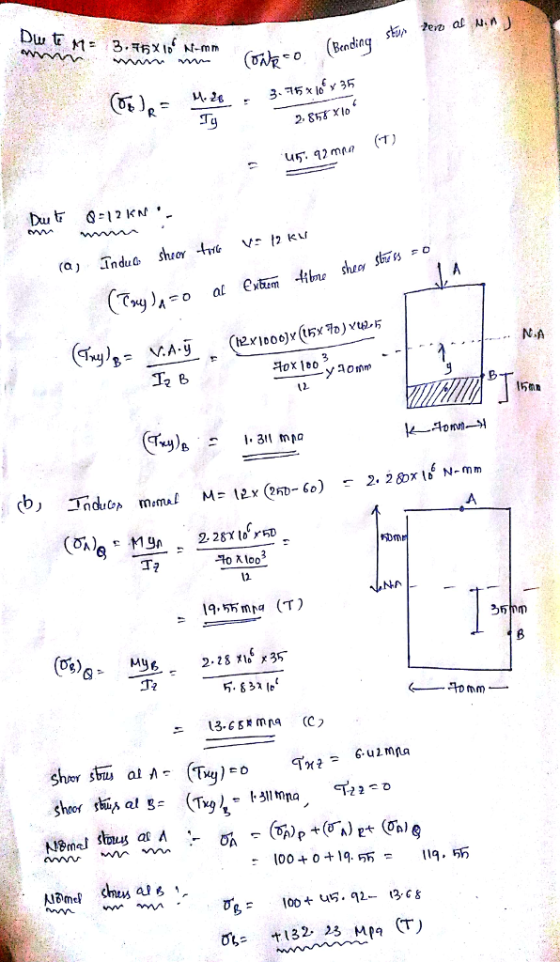

3. The cantilever beam with rectangular cross- 12k Given: P-250 kN, 0 section is subjected to loads P, Q, and R as...
A cantilever beam, with a rectangular cross section, is subjected to loads P, Q and R, as illustrated in the figure below. Given, P 100 kN, Q 15 kN and R 10 kN, determine the principal stresses and the maximum in-plane shearing stress at point B. Also, determine the planes on which the principal stresses act, and the planes on which the maximum in-plane shear stress acts. The vertical dimension (depth) of the beam is 120 mm. 40 mmA 2...
The cantilever beam is subjected to the point loads
P1=3kN and P2=6kN
The cantilever beam is subjected to the point loads P 3 kN and P 6 kN 250 mm250mm-+ -300 mm 20m.m 70 mm 20 mm 50 mm Part A Determine the maximum shear stress acting at section a a of the cantilevered strut Express your answer to three significant figures and include appropriate units. x2.65 MPa max Submit Previous Answers Request Answer
The cantilever beam is subjected to the point loads Pi = 1 kN and P2 = 3 kN. 250 mm 250 mm - - 300 mm- 20 mm 70 mm 20 mm 50 mm Part A Determine the maximum shear stress acting at section a-a of the cantilevered strut. Express your answer to three significant figures and include appropriate units. Å 2 ? O MPa Tmax = 2.04 Submit Previous Answers Request Answer * Incorrect; Try Again
A rectangular beam is subjected to the loadings shown in Figure Q.16(a) has cross section of 100 mm x 300 mm as shown in Figure Q.16(b). An axial load of 5 kN is applied along the centroid of the cross-section at one end of the beam. Compute the normal stress and shear stress at point P through the cut-section of P in the beam. [15 marks] у 10 kN/m P Ž 5 KN --- 00 P k 3 m -...
Problem 7.25 : max shear stress
41 of 94 Problem 7.25 5 kN The cantilever beam is subjected to the point loads P1-1 kN and P2 250 mm 250 mm 300 mm 20 mm 20 mm 50 mm Part A Determine the maximum shear stress acting at section a a of the cantilevered strut.
Z = 13*100mm
PROBLEM: A thin-walled cantilever beam of unsymmetrical cross-section is subjected to a uniform distributed load was shown in the figure below. The wall thickness t can be assumed to be very small in comparison with hin calculating the sectional properties. Determine the stress distribution on the cross section and the position of the neutral axis. Find the deflection of the beam at the cross section. Use:w=0.8N/mm: L = 1500 mm; h = 80 mm: t= 2 mm:...
If a cantilever beam is subjected to the following loading, and a cross section of the beam is provided. a. determine the maximum bending stress in the beam. b Determine the absolute maximum shear stress in the beam.
3) (40 pts) The EXTERNAL 35 kN force P is applied to the end of a 2 m long cantilever beam with the given cross section. The force acts through the shear center, forming an angle of 35 with the horizontal axis. The x, y axes pass through the centroid C. The y-axis can be assumed to coincide with the right- hand edge of the vertical section. Determine (a) the normal bending stress at Point A, (b) normal bending stress...
The beam shown below is loaded with three forces, P - 100 KN, Q-200 KN, and S 200 KN acting at the free end of the cantilever beam. Determine (a) the maximum tensile and compressive stress of the bar if the depth, d of the rectangular bar is 70 mm, and the maximum torsional stress 200 Kw b-40 mm a 20 mm 20 mm
The beam shown below is loaded with three forces, P - 100 KN, Q-200 KN, and...
60 mm A 2 m long cantilever beam with an asymmetric cross-section is subjected to a tip load of 3 kN, as shown. The y- and z-axes pass through the centroid of the cross-section. (a) Show that moments of inertia for the cross-section are 1.33x106 mm4, Iy - 0.917x106 mm4 and Iy-0.03x106 mm4, (b) Find the inclination of the neutral axis and (c) Find the magnitude and location of maximum tensile and compressive stresses in the C.S 10 0° -28...
