![НС) 8 Сob +Go] В) + so3 H0t х(+) - 3С03 (2пх000 -g) t sos(пXSol uhot Pg yliu) at тadlee ятх l000 91 106- (3соп)+] (cодн] -tо](http://img.homeworklib.com/images/b2a092f0-3208-419f-8a55-5e08ef0cf09f.png?x-oss-process=image/resize,w_560)
Add Answer to:

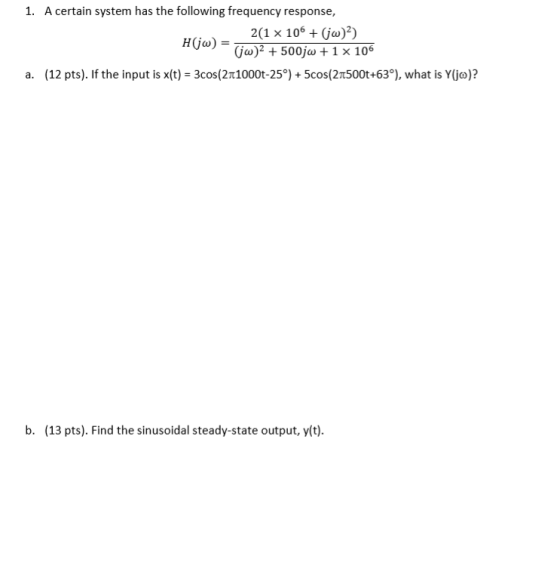

1. A certain system has the following frequency response, 2(1 x 106(ja)2) H(ja)i2 + 500jw +...
B Frequency Response Modeling Frequency response modeling of a linear system is based on the prem...
Please explain every step as clearly and detailed as
possible.
B Frequency Response Modeling Frequency response modeling of a linear system is based on the premise that the dynamics of a linear system can be recovered from a knowledge of how the system responds to sinusoidal inputs. (This will be made mathematically precise in Theorem 13.) In other words, to determine (or iden- tify) a linear system, all one has to do is observe how the system reacts to sinusoidal...
5 pts D Question 1 A system has the following impulse response: .2 Sample number, n From the choices below, select the frequency response of this system. H (eju)-e(1.5 ) (2 sin( 1.5ώ) +...
5 pts D Question 1 A system has the following impulse response: .2 Sample number, n From the choices below, select the frequency response of this system. H (eju)-e(1.5 ) (2 sin( 1.5ώ) + 4 sin(0.δώ)) H (ee) = e-j(1.5e-5) (cos( 1.5 ) +2 cos(0.54)) @ H (ee)-e-n1.si) (sin( 1.54) t. 2 sin(0.δώ)) (sin(l.50) +4sin(0.0) H (ee)-e-j(1.5i) (2 cos( 1.5ώ) + 4 cos(0.5a)) H (efo)-e-n1.5u) (cos( 1.50) + 2 cos(0.50)) https://rmitinstructure.comcoursesy 5 pts DQuestion 2 A system has the following...
Consider a causal LTI system with frequency response H(jw) = 1 2 + jw For a...
Consider a causal LTI system with frequency response H(jw) = 1 2 + jw For a particular input x(t) this system is observed to produce the output y(t) = e-ºut) - e-stutt) i) Determine x(t). ii) Is this system stable? Explain your reasoning. iii) Plot the magnitude and phase responses of H (jw).
(e) Consider an LTI system with impulse response h(t) = π8ǐnc(2(t-1). i. (5 pts) Find the frequency response H(jw). Hint: Use the FT properties and pairs tables. ii. (5 pts) Find the output y(t) when...
(e) Consider an LTI system with impulse response h(t) = π8ǐnc(2(t-1). i. (5 pts) Find the frequency response H(jw). Hint: Use the FT properties and pairs tables. ii. (5 pts) Find the output y(t) when the input is (tsin(t) by using the Fourier Transform method. 3. Fourier Transforms: LTI Systems Described by LCCDE (35 pts) (a) Consider a causal (meaning zero initial conditions) LTI system represented by its input-output relationship in the form of a differential equation:-p +3讐+ 2y(t)--r(t). i....
Question 3 A filter has a unit-impulse response h(t)=0.5e-2'u(t). an (i) Find the frequency response H(jo)....
Question 3 A filter has a unit-impulse response h(t)=0.5e-2'u(t). an (i) Find the frequency response H(jo). (ii) Determine an expression for the steady-state response of the filter to v> 02 sáng)
An LTI system has the frequency response H(o) Tja,+3)(jo+41 Τω+5) Compute the output if the input...
An LTI system has the frequency response H(o) Tja,+3)(jo+41 Τω+5) Compute the output if the input is x()-2cos (5t). 2
A continuous time system H has the frequency response H(jω) = 4π / (4π + jω)...
A continuous time system H has the frequency response H(jω) = 4π / (4π + jω) . a) Find and plot the magnitude as a function of radial frequency. b) Find and plot the phase as a function of radial frequency. c) Using H(jω), find the output y(t) for the input x(t) = 4cos(4πt) + 4cos(12πt)
s -3 +4i s 4+3i 1+0.707 1 b) What is the gain, K, associated with that point? Ans: Problem 3: A system is characteri...
s -3 +4i s 4+3i 1+0.707 1 b) What is the gain, K, associated with that point? Ans: Problem 3: A system is characterized by the following differential equation: If the input is x sinSt, use the frequency response method to determine the steady-state response of the output, yss(t). In showing your work, clearly identify expressions for G(s) Y(s)/X(s), G(jo), [G(jo) l and ф(co).
s -3 +4i s 4+3i 1+0.707 1 b) What is the gain, K, associated with that...
The Bode diagram below relates the input u(t) to the output y(t): Bode Diagram 20 2...
The Bode diagram below relates the input u(t) to the output y(t): Bode Diagram 20 2 -40 -60 o-45 2 -90 O-135 -180 10 10 10 Frequency (rad/s) Find the steady state response of the system y$s (t), results from the sinusoidal input as: u(t) -2 sin(3t) Find the steady state response of the system yss (t), results from the sinusoidal input as: u(t) - 5 sin(10t) a) b) c) Find the input u(t) that results into a sinusoidal steady...
1. An LTI system has the transfer function (or frequency response) H(u)- a) What is the...
1. An LTI system has the transfer function (or frequency response) H(u)- a) What is the magnitude of H()? b) What is the phase of H(u)? c) Determine the impulse response of this system. d) Find the differential equation between the input and output of this system. e) What is the output of the system to the input x()c
Please explain every step as clearly and detailed as
possible.
B Frequency Response Modeling Frequency response modeling of a linear system is based on the premise that the dynamics of a linear system can be recovered from a knowledge of how the system responds to sinusoidal inputs. (This will be made mathematically precise in Theorem 13.) In other words, to determine (or iden- tify) a linear system, all one has to do is observe how the system reacts to sinusoidal...
5 pts D Question 1 A system has the following impulse response: .2 Sample number, n From the choices below, select the frequency response of this system. H (eju)-e(1.5 ) (2 sin( 1.5ώ) + 4 sin(0.δώ)) H (ee) = e-j(1.5e-5) (cos( 1.5 ) +2 cos(0.54)) @ H (ee)-e-n1.si) (sin( 1.54) t. 2 sin(0.δώ)) (sin(l.50) +4sin(0.0) H (ee)-e-j(1.5i) (2 cos( 1.5ώ) + 4 cos(0.5a)) H (efo)-e-n1.5u) (cos( 1.50) + 2 cos(0.50)) https://rmitinstructure.comcoursesy 5 pts DQuestion 2 A system has the following...
Consider a causal LTI system with frequency response H(jw) = 1 2 + jw For a particular input x(t) this system is observed to produce the output y(t) = e-ºut) - e-stutt) i) Determine x(t). ii) Is this system stable? Explain your reasoning. iii) Plot the magnitude and phase responses of H (jw).
(e) Consider an LTI system with impulse response h(t) = π8ǐnc(2(t-1). i. (5 pts) Find the frequency response H(jw). Hint: Use the FT properties and pairs tables. ii. (5 pts) Find the output y(t) when the input is (tsin(t) by using the Fourier Transform method. 3. Fourier Transforms: LTI Systems Described by LCCDE (35 pts) (a) Consider a causal (meaning zero initial conditions) LTI system represented by its input-output relationship in the form of a differential equation:-p +3讐+ 2y(t)--r(t). i....
Question 3 A filter has a unit-impulse response h(t)=0.5e-2'u(t). an (i) Find the frequency response H(jo). (ii) Determine an expression for the steady-state response of the filter to v> 02 sáng)
An LTI system has the frequency response H(o) Tja,+3)(jo+41 Τω+5) Compute the output if the input is x()-2cos (5t). 2
s -3 +4i s 4+3i 1+0.707 1 b) What is the gain, K, associated with that point? Ans: Problem 3: A system is characterized by the following differential equation: If the input is x sinSt, use the frequency response method to determine the steady-state response of the output, yss(t). In showing your work, clearly identify expressions for G(s) Y(s)/X(s), G(jo), [G(jo) l and ф(co).
s -3 +4i s 4+3i 1+0.707 1 b) What is the gain, K, associated with that...
The Bode diagram below relates the input u(t) to the output y(t): Bode Diagram 20 2 -40 -60 o-45 2 -90 O-135 -180 10 10 10 Frequency (rad/s) Find the steady state response of the system y$s (t), results from the sinusoidal input as: u(t) -2 sin(3t) Find the steady state response of the system yss (t), results from the sinusoidal input as: u(t) - 5 sin(10t) a) b) c) Find the input u(t) that results into a sinusoidal steady...
1. An LTI system has the transfer function (or frequency response) H(u)- a) What is the magnitude of H()? b) What is the phase of H(u)? c) Determine the impulse response of this system. d) Find the differential equation between the input and output of this system. e) What is the output of the system to the input x()c
