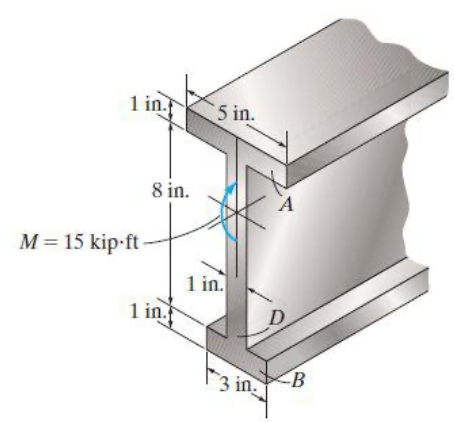

The beam is subjected to a moment of 15 kip*ft. Determine the percentage of this moment that is resisted by the web D of the beam.
