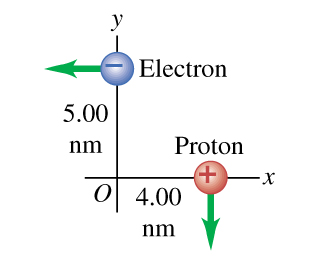

An electron and a proton are each moving at 845 km/s in perpendicular paths as shown in the figure(Figure 1)
An electron and a proton are each moving at 845 km/s in perpendicular paths as shown in the figure(Figure 1) . At the instant they are at the positions shown in the figure.

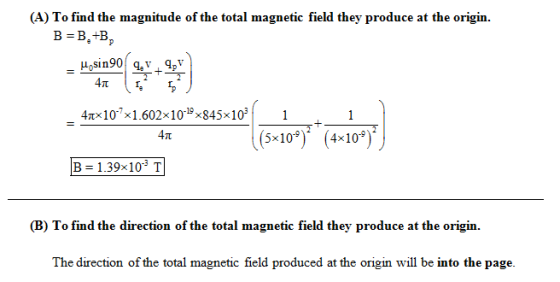

(A) Find the magnitude of the total magnetic field they produce at the origin.
(B) Find the direction of the total magnetic field they produce at the origin.

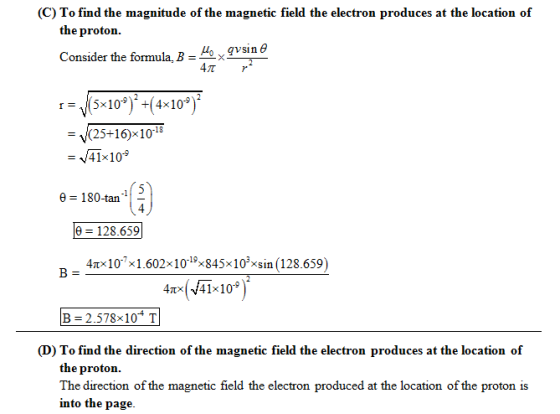

(C) Find the magnitude of the magnetic field the electron produces at the location of the proton.
(D)Find the direction of the magnetic field the electron produces at the location of the proton.

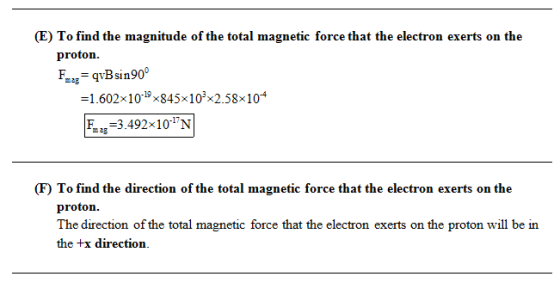

(E) Find the magnitude of the total magnetic force that the electron exerts on the proton.
(F) Find the direction of the total magnetic force that the electron exerts on the proton.

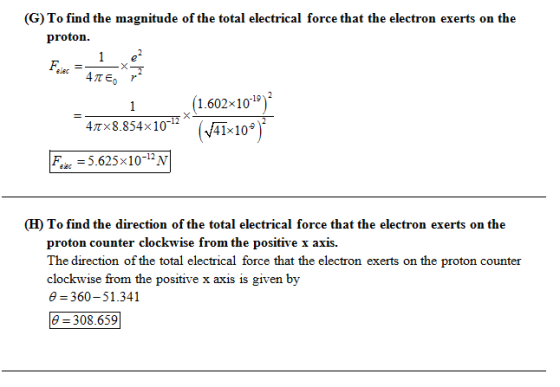

(G) Find the magnitude of the total electrical force that the electron exerts on the proton.
(H) Find the direction of the total electrical force that the electron exerts on the proton counter clockwise from the positive x axis.
Homework Answers
Add Answer to:
An electron and a proton are each moving at 845 km/s in perpendicular paths as shown in the figure(Figure 1)
Can you still work out part A? I need another view of working that problem out...
Can you still work out part A? I need another view of working
that problem out
Thanks
