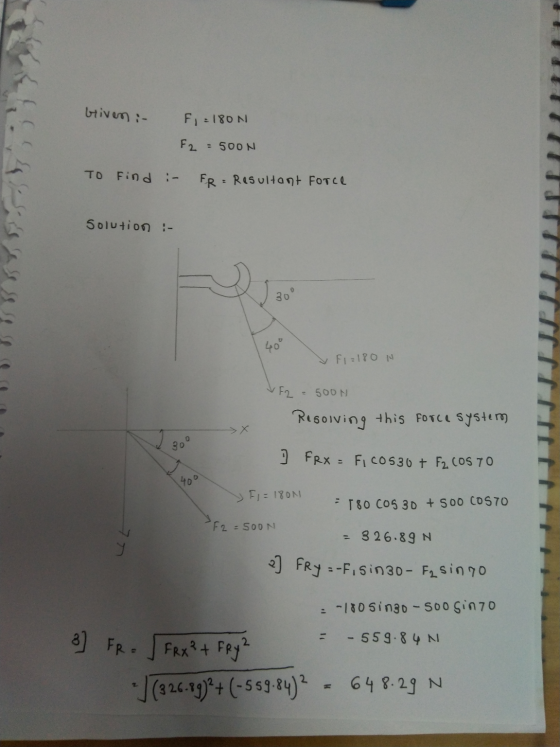

Determine the magnitude of the resultant force, if F1 = 180 N. F2 = 500 N

Question

Question

Two forces act on the hook (Figure 1)

Part A

engineering Civil-Engineering

Answer 1

Answer #1

Answer 2

Similar Homework Help Questions

Two forces F1 & F2 act on hook Fi-600N as shown in the figure. Determine the resultant force & the angle (θ) between the two forces.

Two forces F1 & F2 act on hook Fi-600N as shown in the figure. Determine the resultant force & the angle (θ) between the two forces.
Suppose that F1 = 400 N. Part A Determine the magnitude of the resultant F'=F1 + F2.

Suppose that F1 = 400 N.Part A Determine the magnitude of the resultant F'=F1 + F2. Part B Determine the direction of the resultant force F'=F1 + F2, measured counterclockwise from the positive x axis. Part C Determine the magnitude of the resultant force FR = F1 + F2 + F3. Part D Determine the direction of the resultant force FR = F1 + F2 + F3. measured counterclockwise from the positive x axis.
If F1 = 850 N , F2 = 640 N , determine the magnitude of the resultant force.

If F1 = 850 N , F2 = 640 N , determine the magnitude of the resultant force.Determine the direction of the resultant force measured counterclockwise from the positive x axis.

Replace the loading on the frame by a single resultant force. Suppose that F1 = 450 N, F2 = 550 N, F3 = 950 N, and F4 = 500 N.

Replace the loading on the frame by a single resultant force. Suppose that F1 = 450 N, F2 = 550 N, F3 = 950 N, and F4 = 500 N.Part ADetermine the magnitude (Figure 1) the resultant force Part B Determine the angle between the resultant force and the x axis.Part C Specify where the line of action of the resultant force intersects a horizontal line along member CB, measured from end C.
1) Calculate the magnitude of the resultant force given that F1 = 30 N at an...

1) Calculate the magnitude of the resultant force given that F1 = 30 N at an angle of 75 degrees, and F2= 40 N at an angle of 30 degrees. 2) Calculate the resultant force caused by the following 3 forces acting simultaneously on an object: F1 = (144 N, 180 deg) F2 = (120 N, 53.13 deg) F3 = (120 N, -53.13 deg) (Round the answer to the nearest whole number)
Two forces, F1 of magnitude 35 newtons (N) and F2 of magnitude 55 newtons

Solve the problem. Two forces, F1 of magnitude 35 newtons (N) and F2 of magnitude 55 newtons, act on an object at angles of 45° and -60° (respectively) with the positive x-axis. Find the direction and magnitude of the resultant force; that is, find F1+F2. Round the direction and magnitude to two decimal places.

If F1 = 730 lb . F2 = 420 lb. F3 = 600 lb, determine the magnitude of the resultant force acting on the corbel

Part A If F1 = 730 lb . F2 = 420 lb. F3 = 600 lb, determine the magnitude of the resultant force acting on the corbel (Figure 1) Part B Determine the direction of the resultant force acting on the corbel measured counterclockwise from the x axis.
Forces with magnitudes of F1 = 174 newtons and F2 = 260 newtons act on a...

Forces with magnitudes of F1 = 174 newtons and F2 = 260 newtons act on a hook (see figure). The angle between the two forces is θ degrees. (a) When θ = 30°, find the direction and magnitude of the resultant force. (Round your answers to three decimal places.) direction ° magnitude (b) Write the magnitude M and direction α of the resultant force as functions of θ, where 0° ≤ θ ≤ 180°. M = α = (c) Use...
The two forces F1 and F2 shown in figure 1 act on a 23.0kg object on a frictionless tabletop. Suppose that F1 = 12.0 N and F2 = 18.8 N.

The two forces F1 and F2 shown in figure 1 act on a 23.0kg object on a frictionless tabletop. Suppose that F1 = 12.0 N and F2 = 18.8 N.Determine the magnitude of the net force on the object for the diagram (a) in the figure.

The three forces F1, F2 and F3 act on a hook at the angles α1, α2...

The three forces F1, F2 and F3 act on a hook at the angles α1, α2 and α3 as shown in the figure. 1.) Find the x component of the resultant force in pounds: 2.) Find the y component of the resultant force in pounds(Fr): The three forces F1, F2 and Fs act on a hook at the angles a1, a2 and a3 as shown in the figure. F2 F3 a3 COLLAPSE IMAGES F1-103 lb F2-227 lb F3-286 lb ai-38...
