1.) Find the moment of inertia (in mm4) of the shadedarea with respect to the...

Question

Question

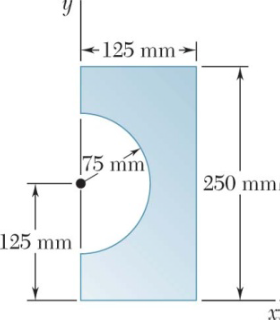

1.) Find the moment of inertia (in mm⁴) of the shaded area with respect to the y axis.

-125 mm 75 mm 250 mm 125 mm 1

2.) Find the moment of inertia (in in⁴) of the shaded area with respect to the x axis.

-6 in. 6 in. 4 in.

engineering Civil-Engineering

Answer 1

Answer #1

Solution:

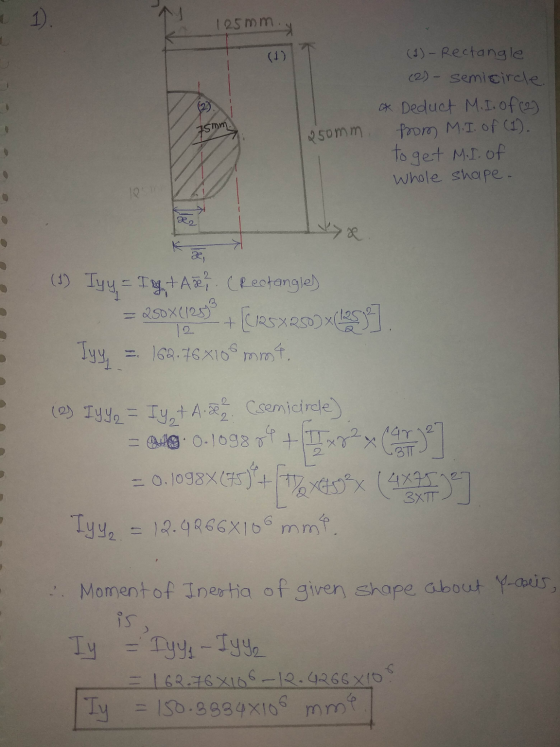

About Y- axis:-

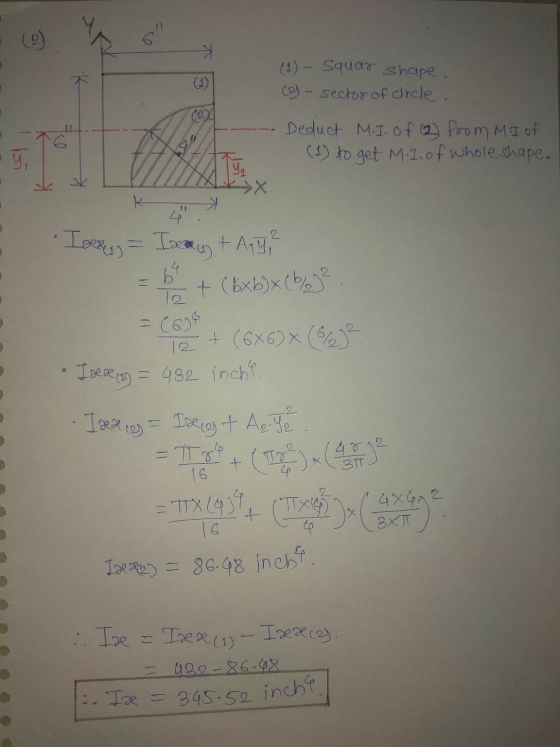

2) about X- axis:-

Answer 2
