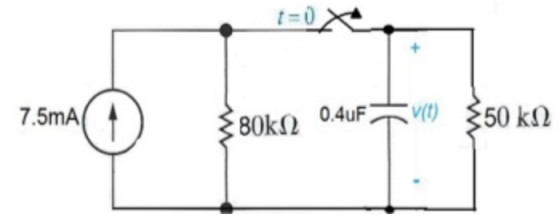

The switch in the circuit shown has been closed for a long time and is opened at t = 0. Find

Question

Question

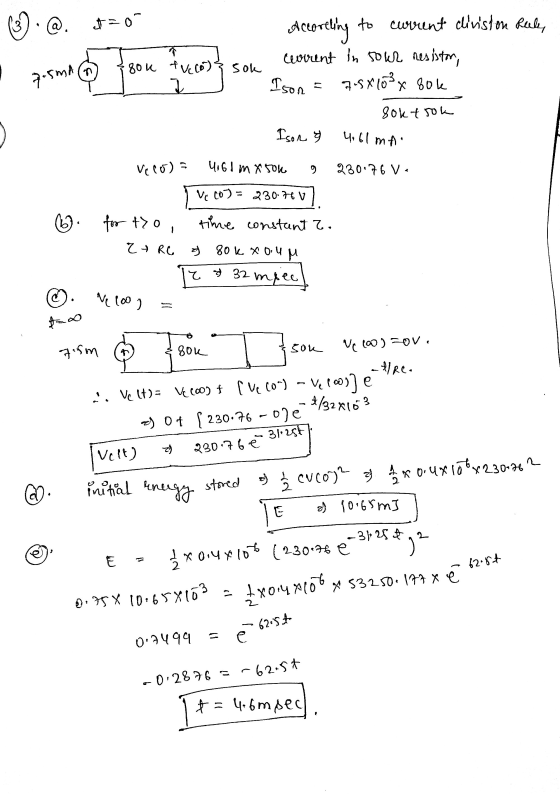

a) The initial value of v(t),

b) The time constant for t>0.

c) The numerical expression for v(t) after the switch has been opened,

d) The initial energy stored in the capacitor, and

e) The length of time required to dissipate 75% of the initially stored energy.

engineering Electrical-Engineering

Answer 1

Answer #1

Answer 2

Similar Homework Help Questions

The switch in the circuit has been closed for a long time and is opened at t = 0.

The switch in the circuit has been closed for a long time and is opened at t = 0. a. Calculate the initial value of I b. Calculate the initial energy stored in the inductor. c. What is the time constant of the circuit for t ≥ 0? d. What is the numerical expression for i() for t20? e. What percentage of the initial energy stored has been dissipated in the 4 Ω resistor 5ms after the switch has been opened?
In the circuit shown below, switch S has been closed for a very long time and it is opened at t = 0

Q3. In the circuit shown below, switch S has been closed for a very long time and it is opened at t = 0. Find the solution for the current i(t) passing through the inductor. Q4. In the circuit shown, the initial capacitor voltage is v(0) =5 V. (a) Find the capacitor voltage v(r) for t > 0. (b) Find the current io(t).
do not use s domain method ,use only differential equation 3. In the circuit shown, switch 1 has been closed for a long time before it is opened at t 0, and switch 2 has been opened for a long time b...

do not use s domain method ,use only differential equation 3. In the circuit shown, switch 1 has been closed for a long time before it is opened at t 0, and switch 2 has been opened for a long time before it is closed at t = 0. SW2 sw, 0.5Ω R2 1(2 A, 20 A i(t) 0.5 H a. Find the initial voltage v(O)- Vo across the capacitor and initial current through the inductor (0) lo at t...

The switch in the circuit has been closed for a long time before it is opened at t = 0

The switch in the circuit has been closed for a long time before it is opened at t = 0a) io(t) for t ≥ 0+b) vo(t) for t ≥ 0+, where vo is the voltage drop across the 54 Ω resistor.c) The total energy stored in the 0.5 H inductor that is dissipated in the 26 Ω resistor
First-order circuits For the circuit shown below, the switch has been closed for a long time...

First-order circuits For the circuit shown below, the switch has been closed for a long time and it is opened at t = 0. Calculate the capacitor voltage, v(t) for all t. 6.2 30V V 2F !
The switch in the circuit shown below has been closed for a long time until t=0...

The switch in the circuit shown below has been closed for a long time until t=0 when it is opened. What is the circuit time constant for t> 0? It=0 RS SR2 = 3R OT=[(R3 + RA)//R2 + R1]//R,C OT=R.C OT=RiC OT=R2C None of the above

1.(20 pts) The switch in the circuit shown below has been closed for a long time...

1.(20 pts) The switch in the circuit shown below has been closed for a long time before it is opened at -0. (a) Is this RL or RC switching circuit. (b) Is this Natural or Step Response for t0? (c) Find veo'). (d) What is the time constant t of the circuit for t0? (e) Find Vco). (1) Write the expression for vct) fort >0. (g) Write the expression for ict) fort >0. (h) Write the expression for i(t) fort...
The switch A in the circuit has been open for a long time. Calculate the voltage...

The switch A in the circuit has been open for a long time. Calculate the voltage u_2(t) after the switch is closed at t=0. The capacitor C_1 has a initial voltage of u_1=100 V at t<0. Capacitor C_2 lacks initial energy. Rz = 200 kN2 R2 = 120 k12 + + C
Q2. The switch in the circuit shown has been closed for a long time. It is...

Q2. The switch in the circuit shown has been closed for a long time. It is opened at - 0. a) Find the voltage w) and the current 1,() for all : (Assume that the circuit reaches steady-state long before it is opened) (40 pts) b) Find the total energy dissipated in the 150-2 resistor for />0. (20 pts) 1509 250 Ion 01 F 10 3 250 0 50 V

The switch is closed at time t = 0. The battery, shown in the figure has...

The switch is closed at time t = 0. The battery, shown in the figure has a voltage of 3.21 Volts. The capacitor is initially uncharged. For the circuit below, with Resistance 8.95 Ohms and Capacitance 5.65 Farads, what is the energy in Joule stored in the capacitor at time t= 4.09 seconds?
