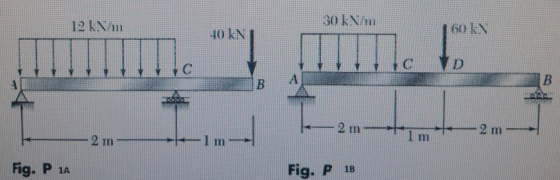

Draw the shear and bending moment diagrams for the beam and loading shown, and hence determine the maximum absolute values of the shear load and the bending moment.

Question

Question

engineering Mechanical-Engineering

Answer 1

✔ Recommended Answer

Answer #1

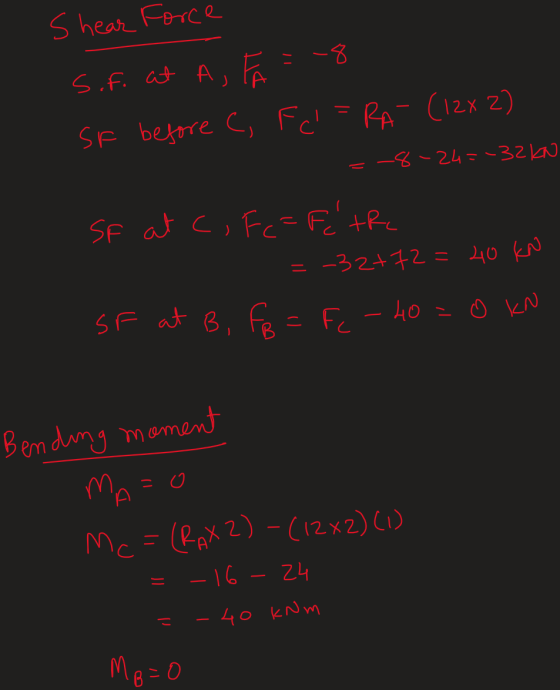

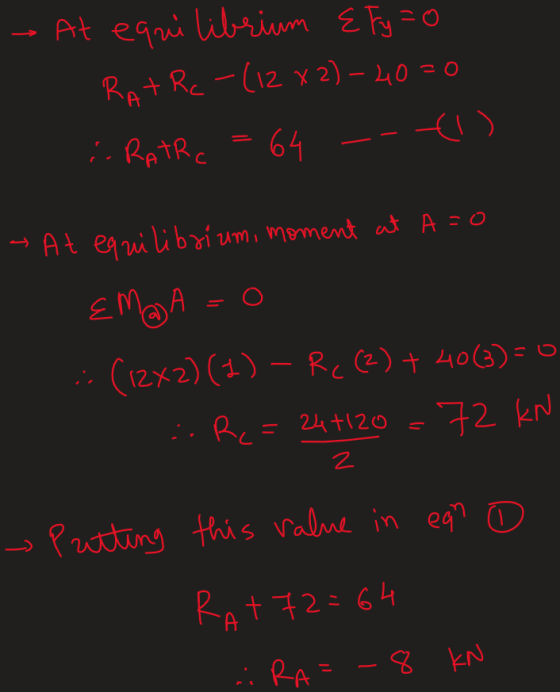

Maximum shear load = 40 kN

Maximum bending moment = 40 kN/m

Q-2

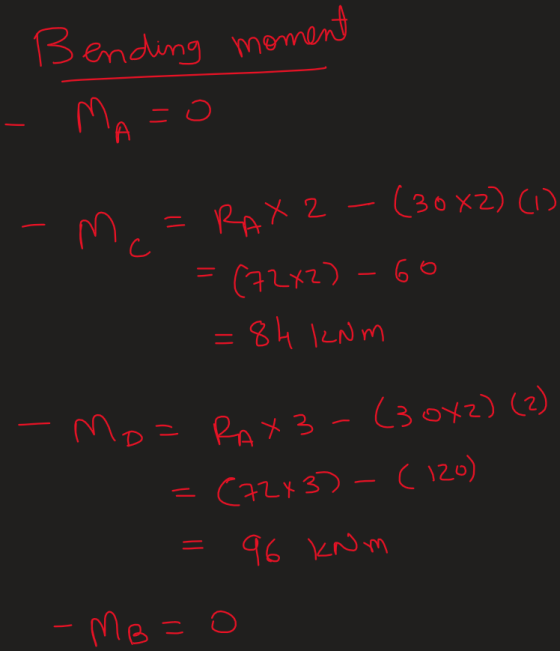

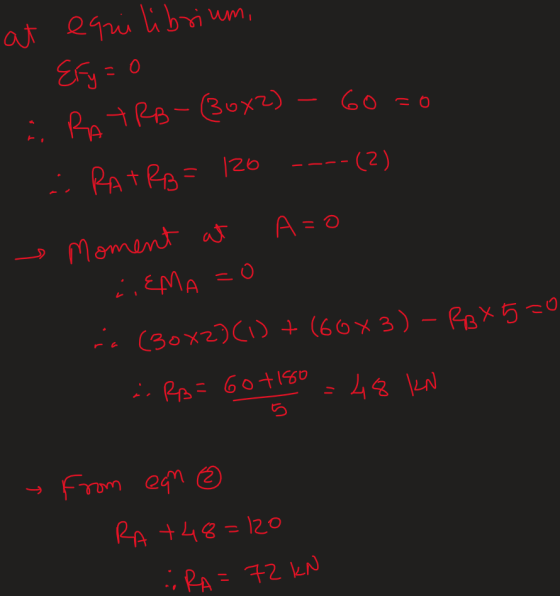

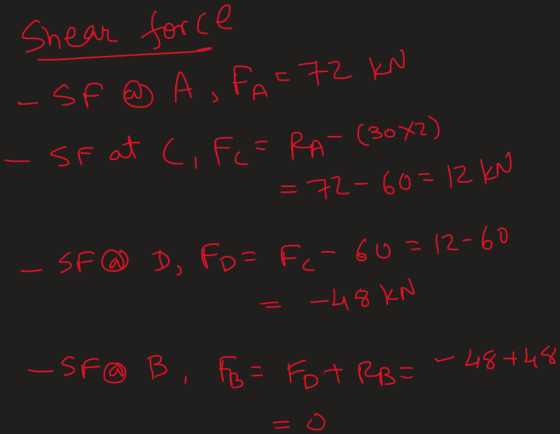

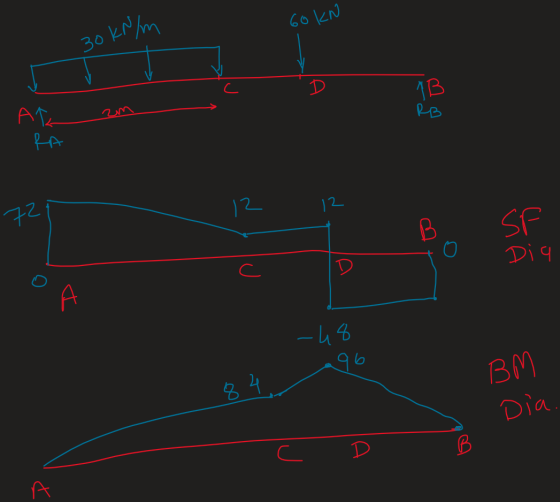

Maximum shear load = 72 kN

Maximum bending moment = 96 kN/m
