Draw the shear force and bending moment diagrams for the following three beams using the graphical method

Question

Question

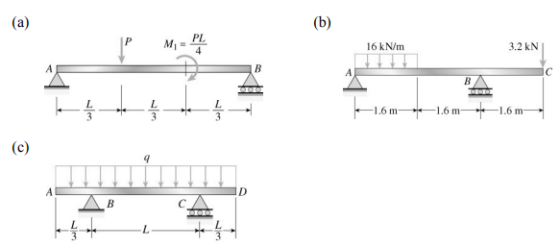

1. Draw the shear force and bending moment diagrams for the following three beams using the graphical method

2. For beams (a) and (b) in problem 1, find the shear and moment functions using the method of sections.

engineering Mechanical-Engineering

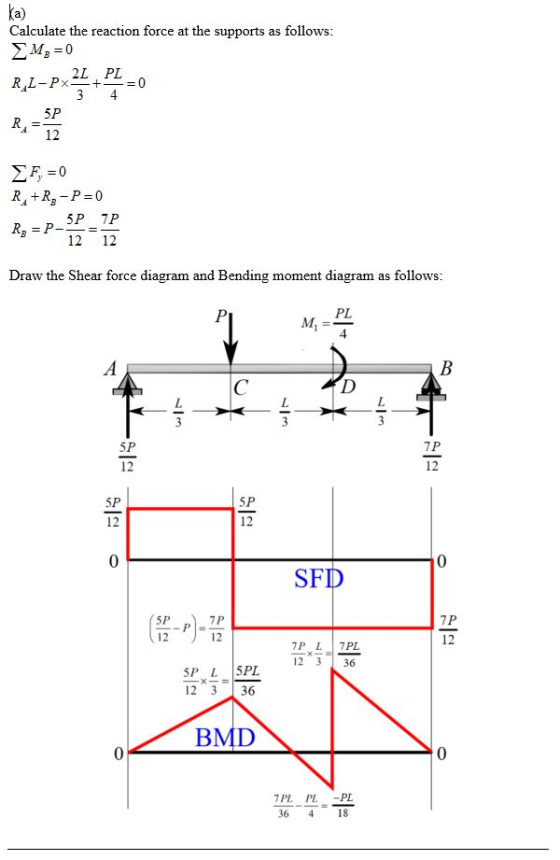

Answer 1

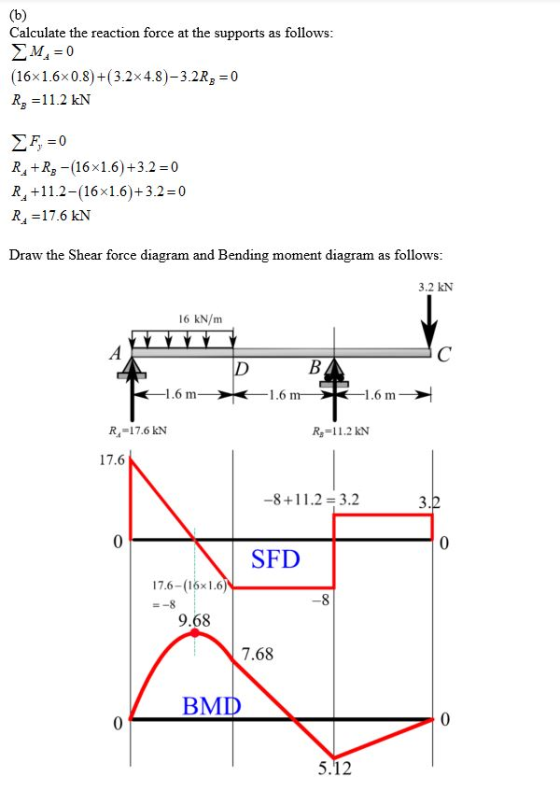

Answer #1

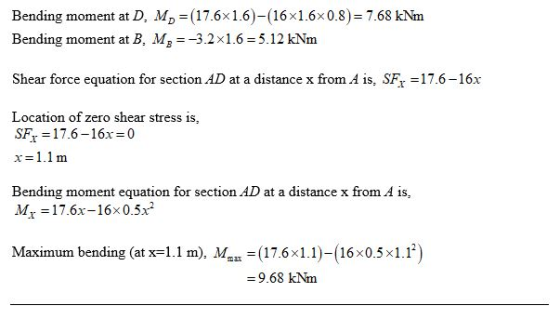

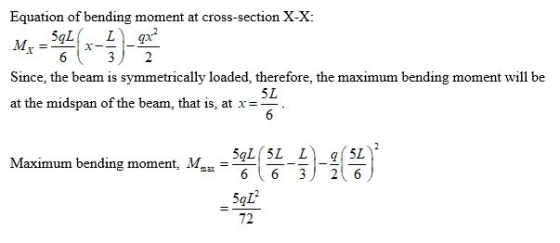

Answer 2
