Air enters a 10-m-long section of a rectangular duct of cross section 15 cm X 20 cm made of commercial steel at an average velocity of 7 m/s
Air enters a 10-m-long section of a rectangular duct of cross section 15 cm X 20 cm made of commercial steel at an average velocity of 7 m/s.(p = 1.145kg/m3 ,μ = 1.895x10-5kg/ms) and e=0.000045 m). For this pipe determine

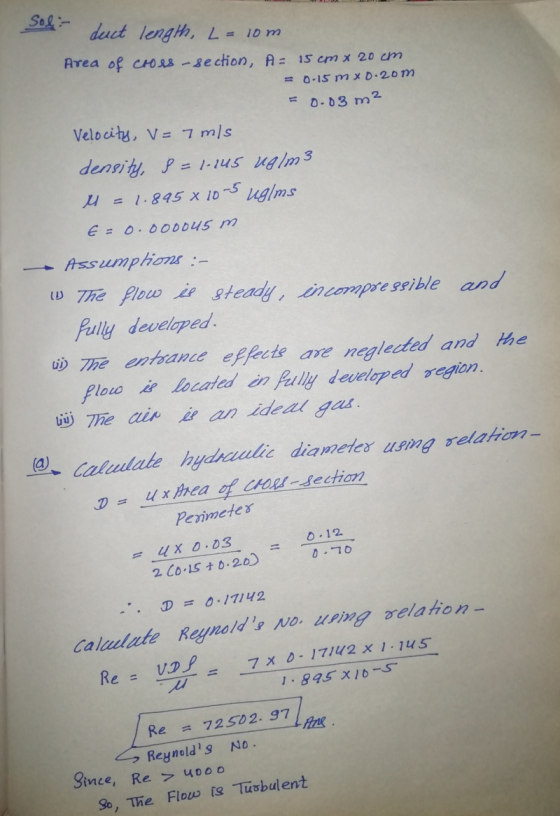

(a)the Reynolds number and decide weather the flow is laminar or turbulent

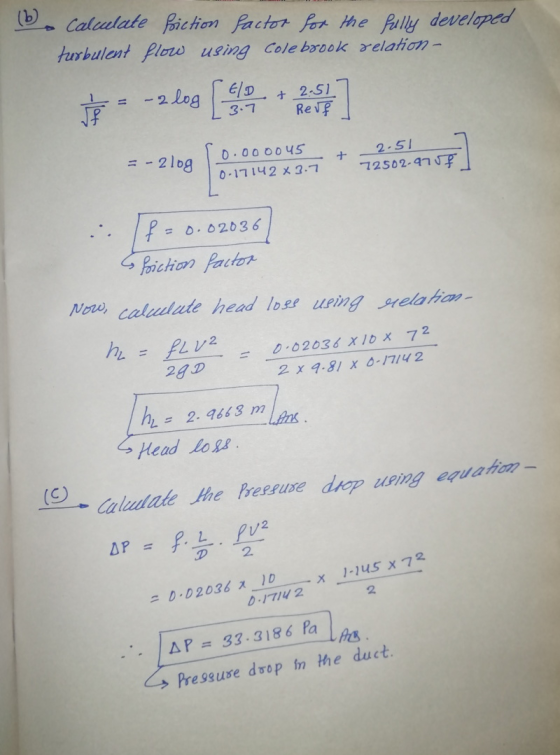

(b) the head loss,
(c) the pressure drop, and

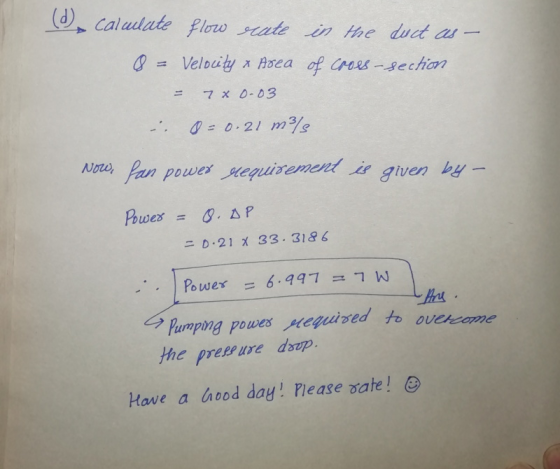

(d) the pumping power requirement to overcome this pressure drop.
Homework Answers
Add Answer to:
Air enters a 10-m-long section of a rectangular duct of cross section 15 cm X 20 cm made of commercial steel at an average velocity of 7 m/s
Water at 10 °C (p = 999.7kg/m3 and μ = 1.307×10-3kg/ms) is flowing steadily in a 0.12-cm-diameter, 15-m-long pipe at an average velocity of 0.9 m/s. Determine
Water at 10 °C (p = 999.7kg/m3 and μ = 1.307×10-3kg/ms) is flowing steadily in a 0.12-cm-diameter, 15-m-long pipe at an average velocity of 0.9 m/s. Determine (a) the Reynolds number and decide weather the flow is laminar or turbulent (b) the head loss, (c) the pressure drop, and (d) the pumping power requirement to overcome this pressure drop.
16. (10p) Air in a heating system is distributed through a rectangular duct (0.2m x 0.3...
16. (10p) Air in a heating system is distributed through a rectangular duct (0.2m x 0.3 m) made of commercial steel (average roughness height = 0.000045 m) at a rate of 0.5 m/s. Calculate the pressure drop and head loss in the 40 m length part of this duct and the needed pumping power to overcome the losses. Pair 1.169 kg/m3, Hair = 1.918x10-5kg/ms
AIR ENTER A 5-M-LONG SECTION OF A RECTANGULAR DUCT OF CROSS SECTION 12*18 CM MADE OF...
AIR ENTER A 5-M-LONG SECTION OF A RECTANGULAR DUCT OF CROSS SECTION 12*18 CM MADE OF COMMERCIAL STEEL AT 1 ATM AND 35ºc AT AN AVERAGE VEL OF 6M/S. DISGREGARDING THE ENTRANCE EFFECTS, DETERMINE THE FAN POWER NEEDED TO OVERCOME THE PRESSURE LOSSES IN THIS SECTION OF THE DUCT.
Water at 10°C (p = 999.7 kg/m3 and μ = 1.307 × 10-3 kg/m.s) is flowing steadily in a 0.20-cm-diameter, 15-m-long pipe at an average velocity of 1.2 m/s
8-31 Water at 10°C (p = 999.7 kg/m3 and μ = 1.307 × 10-3 kg/m.s) is flowing steadily in a 0.20-cm-diameter, 15-m-long pipe at an average velocity of 1.2 m/s. Determine (a) the pressure drop, (b) the head loss, and (c) the pumping power requirement to overcome this pressure drop. Answers: (a) 188 kPa, (b) 19.2 m, (c) 0.71 W 8-32 Water at 15°C (p = 999.1 kg/m3 and μ = 1.138 × 10-3 kg/m . s) is flowing steadily in a 30-m-long...
Water at 15°C (ρ = 999.1 kg/m3 and μ = 1.138 × 10−3 kg/m·s) is flowing steadily in a 34-m-long and 6-cm-diameter horizontal pipe made of stainless steel at a rate of 10 L/s. Determine the pressure d...
Water at 15°C (ρ = 999.1 kg/m3and μ = 1.138 × 10−3 kg/m·s) is flowing
steadily in a 34-m-long and 6-cm-diameter horizontal pipe made of
stainless steel at a rate of 10 L/s. Determine the pressure drop,
the head loss, and the pumping power requirement to overcome this
pressure drop. The roughness of stainless steel is 0.002 mm.Determine the following:A)The pressure drop in _______ kPa.B)The head loss in _______ m.C)The pumping power requirement in _______ kW.
3) Water at 15°C (p- 999.7 kg/m3 and u 1.307 x 10-3 kg/m-s) is flowing steadily...
3) Water at 15°C (p- 999.7 kg/m3 and u 1.307 x 10-3 kg/m-s) is flowing steadily in a 0.25-cm diameter, 35-m-long pipe at an average velocity of 1.2 m/s. Determine (a) the pressure drop, (b) the head loss, and (c) the pumping power requirement to overcome this pressure drop.
Q2 A main trunk duct of air-conditioning system shown in Figure 2 is rectangular in cross-section...
Q2 A main trunk duct of air-conditioning system shown in Figure 2 is rectangular in cross-section (40 cm x 80 cm). Air at atmospheric pressure and temperature of 20c flows inside the duct with velocity of 7 m/s. The cross sectional srea snd definition of characteristic length for the duct are given in Figure 2. The duct is assumed to be m long. The flow inside the duct is assumed fully developed. (a)Find properties of air using suitable value of...
3) A rectangular HVAC duct of cross-section 20 cm X 20 cm and 12 m long...
3) A rectangular HVAC duct of cross-section 20 cm X 20 cm and 12 m long is made of 3.5 mm thick sheet metal that is used to deliver hot air at 60°C with an average velocity of 4 m/s. The thermal resistance of the duct is negligible, and the outer surface of the duct, whose emissivity is 0.305, is exposed to the cold air at 10 C in the room, with a convection heat transfer coefficient of 10 W/m²....
5.16. Water is flowing in a 3-cm-diameter pipe at an average velocity of Uav 2 m/s....
5.16. Water is flowing in a 3-cm-diameter pipe at an average velocity of Uav 2 m/s. Assuming water density of ρ-1000 kg/m 3 and viscosity μ-10-3 N s'm2, calculate the velocity at the center of the pipe, the shear τ at the wall, and the Reynolds number. Assuming laminar flow, calculate friction coefficient C and pressure drop dp/dx.
DON’T disregard the thermal conductivity of the pipe 3.) Oil at 200 C flows in a pipeline. The pipe has a 30-cm diameter and the flow is at an average velocity of 2 m/s. A 200-m-long section of t...
DON’T disregard the thermal conductivity of the pipe
3.) Oil at 200 C flows in a pipeline. The pipe has a 30-cm diameter and the flow is at an average velocity of 2 m/s. A 200-m-long section of the pipeline passes through icy waters of a lake at 0° C. The pipe is uncoated carbon steel with a thermal conductivity of 61 W/m o C. Determine (a) the temperature of the oil when the pipe leaves the lake, (b) the...
16. (10p) Air in a heating system is distributed through a rectangular duct (0.2m x 0.3 m) made of commercial steel (average roughness height = 0.000045 m) at a rate of 0.5 m/s. Calculate the pressure drop and head loss in the 40 m length part of this duct and the needed pumping power to overcome the losses. Pair 1.169 kg/m3, Hair = 1.918x10-5kg/ms
3) Water at 15°C (p- 999.7 kg/m3 and u 1.307 x 10-3 kg/m-s) is flowing steadily in a 0.25-cm diameter, 35-m-long pipe at an average velocity of 1.2 m/s. Determine (a) the pressure drop, (b) the head loss, and (c) the pumping power requirement to overcome this pressure drop.
Q2 A main trunk duct of air-conditioning system shown in Figure 2 is rectangular in cross-section (40 cm x 80 cm). Air at atmospheric pressure and temperature of 20c flows inside the duct with velocity of 7 m/s. The cross sectional srea snd definition of characteristic length for the duct are given in Figure 2. The duct is assumed to be m long. The flow inside the duct is assumed fully developed. (a)Find properties of air using suitable value of...
3) A rectangular HVAC duct of cross-section 20 cm X 20 cm and 12 m long is made of 3.5 mm thick sheet metal that is used to deliver hot air at 60°C with an average velocity of 4 m/s. The thermal resistance of the duct is negligible, and the outer surface of the duct, whose emissivity is 0.305, is exposed to the cold air at 10 C in the room, with a convection heat transfer coefficient of 10 W/m²....
5.16. Water is flowing in a 3-cm-diameter pipe at an average velocity of Uav 2 m/s. Assuming water density of ρ-1000 kg/m 3 and viscosity μ-10-3 N s'm2, calculate the velocity at the center of the pipe, the shear τ at the wall, and the Reynolds number. Assuming laminar flow, calculate friction coefficient C and pressure drop dp/dx.
DON’T disregard the thermal conductivity of the pipe
3.) Oil at 200 C flows in a pipeline. The pipe has a 30-cm diameter and the flow is at an average velocity of 2 m/s. A 200-m-long section of the pipeline passes through icy waters of a lake at 0° C. The pipe is uncoated carbon steel with a thermal conductivity of 61 W/m o C. Determine (a) the temperature of the oil when the pipe leaves the lake, (b) the...
