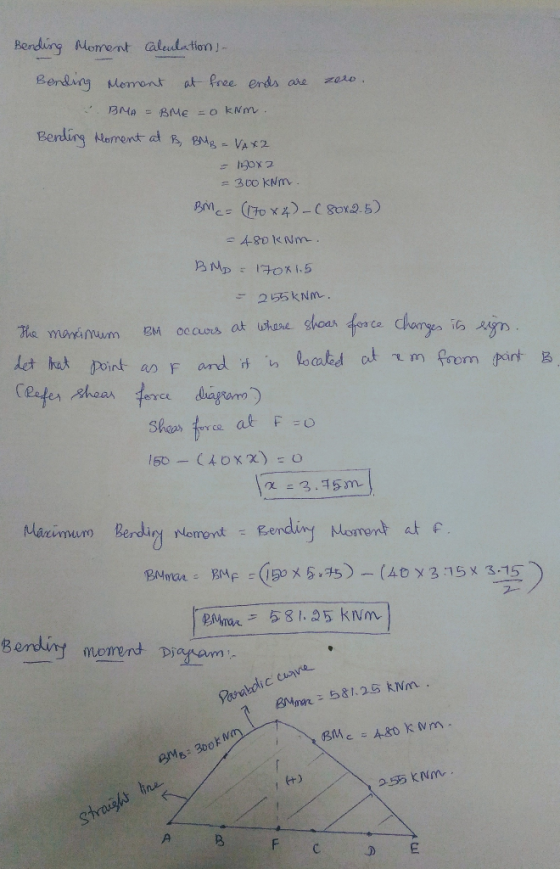

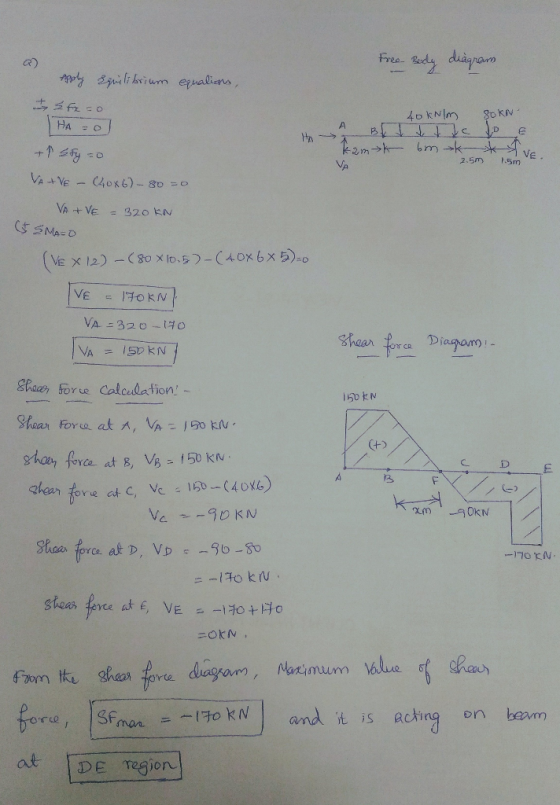

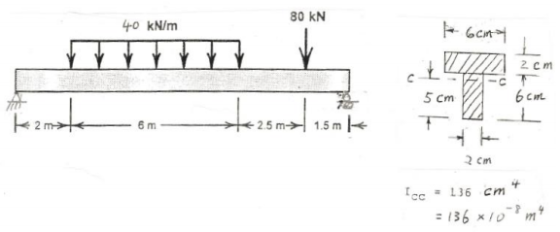

(a) Sketch the shear force and bending moment diagram for the beam shown. Indicate the values and locations of maximum shear and moment.

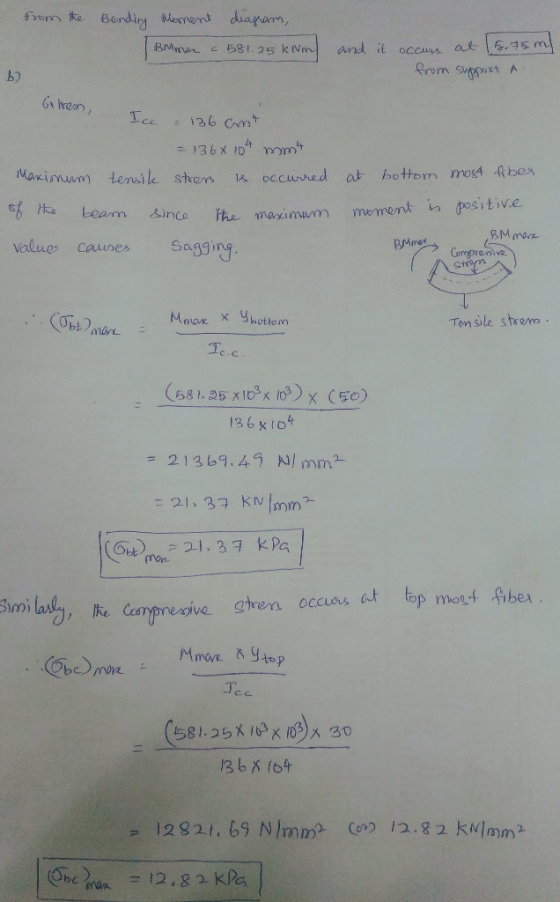

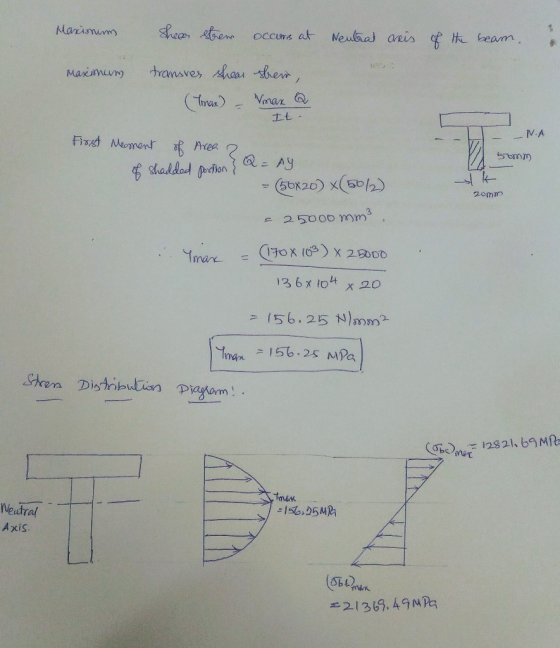

(b) With the beam cross section shown, determine the maximum tensile stress, maximum compressive stress, and maximum transverse shear stress in the beam.

(a) Sketch the shear force and bending moment diagram for the beam shown. Indicate the values and locations of maximum shear and moment.
2. Draw Shear Force and Bending Moment Diagram (use your preferred method). Determine Maximum Tensile and Compressive Stresses due to bending, state where on the beam these occur. For the mid-point between A and B, determine shear stress at neutral axis; 2" from the top of the flange; at the junction between web and flange and on the top of the flange for the cross-section. Plot of the bending stress and shear stress distribution diagram across the cross section of...
Problem 1: Draw the shear force and bending moment diagram for the beam shown below. (10) Estimate the maximum bending stress located at section C (shown below). (10) Clearly identify the location on the cross section where the maximum bending stress is located. Is it tensile or compressive? Explain your answer.
6. Determine the maximum positive and maximum negative shear forces and their locations. 7. Determine the maximum positive and maximum negative bending moments and their locations 8. Determine the maximum tensile and compressive bending stresses associated with the maximum positive moment 9. Determine the maximum tensile and compressive bending stresses associated with the maximum negative moment 10. Determine the absolute maximum tensile stress in the beam and the location. 11. Determine the absolute maximum compressive stress in the beam and the location 12. Determine the maximum...
a. Determine the maximum tensile and compressive bending
stresses associated with the maximum positive moment.b. Determine the maximum tensile and compressive bending
stresses associated with the maximum negative moment.c. Determine the absolute maximum tensile stress in the beam and
the location.d. Determine the absolute maximum compressive stress in the beam
and the location.e. Determine the maximum shear stress associated with maximum
positive shear force.f. Determine the maximum shear stress associated with maximum
negative shear force.g. Determine the absolute maximum shear...
For the beam shown in the figure below a. Draw the shear and moment diagrams for this beam b. Calculate the maximum bending stress, maximum axial stress, and maximum shear stress acting on the beam cross section c. Sketch the distributions of shear stresses and bending stresses acting on the beam cross section at the locations where these stresses are maximum.
The member shown above has a W - shape cross séction. FINDa) draw the shear, moment and normal force diagramb) determine the absolute maximum bending stress in the beam and
draw the stress distribution over the cross section at this
location.c) draw the transverse shear stress distribution over the cross
section just to the right of point B.d) determine the state of stress that the loading produces at
point E and point F.e) Draw mohr's circle for state of stress at...
For the beam shown below, find the maximum bending stress and maximum transverse shear stress. That is, carry out load and stress analyses in the following order. Load Analysis Draw the load diagram or free body diagram (FBD) and determine the support reactions. Show your calculations. • Draw the shear force diagram (SFD). Show your calculations. Draw the bending moment diagram (BMD). Show your calculations. Stress Analysis Identify the critical section(s) and determine the maximum normal (bending) stress at the...
A beam having a T-Section is loaded as shown in figure below. a. Draw the Shear Force & Bending Moment Diagram b. Locate the Nuetral Axis c. Find the maximum tensile and compressive bending stress d. Find the maximum shear stress e Find the Bending Stress and Shear Stress at the points marked on the cross section
4. For the beam and loading shown, draw the shear force and bending moment diagrams and determine the maximum bending and shear force and their locations. 20 KN 40 KN B D 250 mm |--2.5 m- 3m-4-2 m 80 mm 5. For the beam and loading shown, draw the shear force and bending moment diagrams and determine the maximum bending and shear force and their locations. 50 KN
