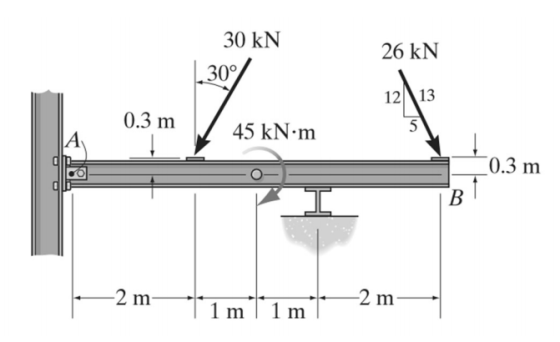

Replace the force and couple moment system acting on the cantilever beam by a resultant force and specify its location along AB measured from point A.

Question

Question

Replace the force and couple moment system acting on the cantilever beam by a resultant force and specify its location along AB measured from point A.

Problem 3: Replace the force and couple moment system acting on the cantilever beam by a resultant force and specify its location along AB measured from point A.

engineering Mechanical-Engineering

Add a comment Improve this question Transcribed image text

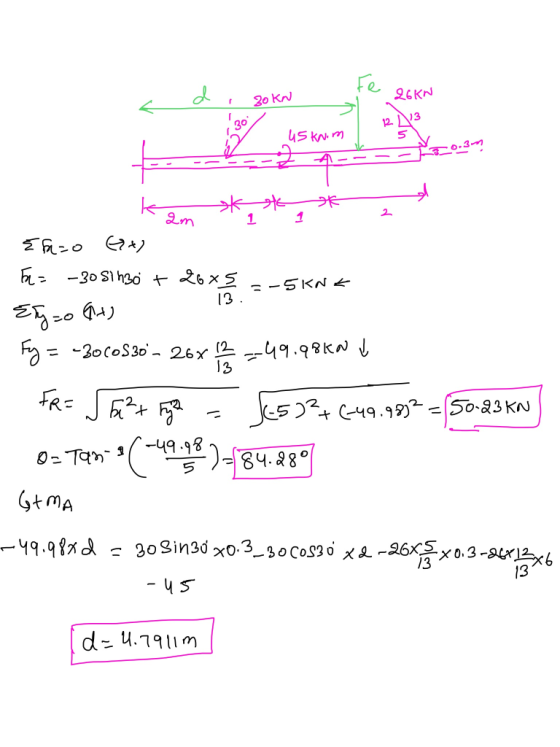

Answer 1

Answer #1

Add a comment

Answer 2
