The 2-in.-diameter rod is subjected to the loads Shown. Determine the state of stress at...

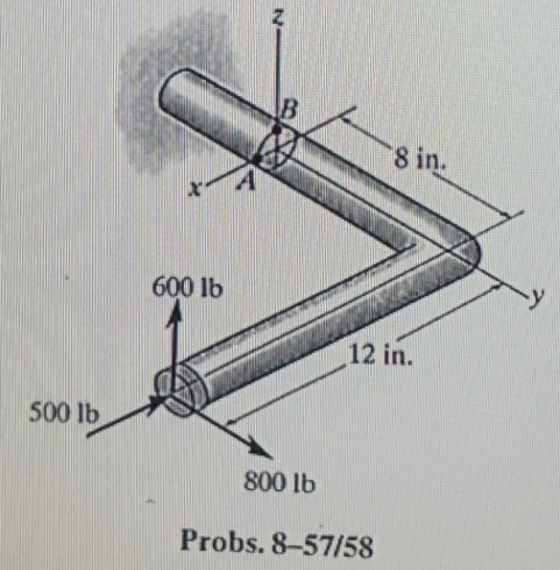

The 2-in.-diameter rod is subjected to the loads Shown. Determine the state of stress at point B, and show the results on a differential element located at this point.


engineering   Mechanical-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

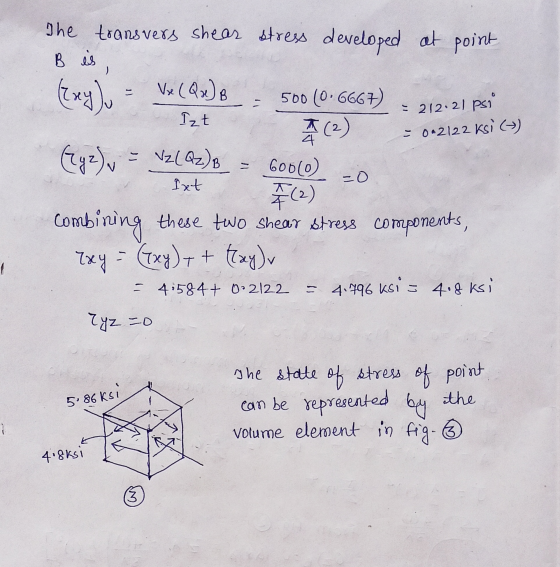

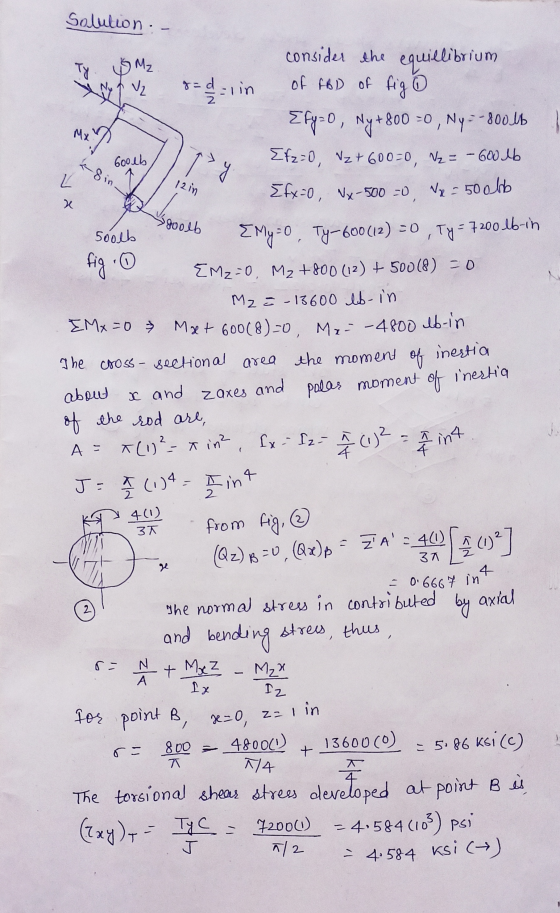

Answer #1

1 0
Add a comment
Know the answer?
Add Answer to:
The 2-in.-diameter rod is subjected to the loads Shown. Determine the state of stress at...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • *8-56. The 1-in.-diameter rod is subjected to the loads shown. Determine the state of stress at...

    *8-56. The 1-in.-diameter rod is subjected to the loads shown. Determine the state of stress at point B, and show the results on a differential volume element located at this point.

  • The 1.04-in.-diameter rod in (Figure 1) is subjected to the loads shown. Determine the state of...

    The 1.04-in.-diameter rod in (Figure 1) is subjected to the loads shown. Determine the state of stress at point A. The 1.04-in. diameter rod in (Figure 1) is subjected to the loads shown. Part A Determine the state of stress at point A Express your answers, separated by commas, to three significant figures. ƠA-, (Tr.),-. (Tw),-114.887, _ 8.908,0 ksi (C), ksi, ksi Submit Previous Answers Request Answer Incorrect; One attempt remaining: Try Again Figure < 1 of 1 > 300...

  • The solid rod is subjected to the loading shown

     *8-48. The solid rod is subjected to the loading shown. Determine the state of stress at point B, and show the results on a differential volume element at this point. 8-49. The solid rod is subjected to the loading shown. Determine the state of stress at point C, and show the results on a differential volume element at this point.

  • Figure 2: The bar has a diameter of 40 mm. Determine the state of stress at...

    Figure 2: The bar has a diameter of 40 mm. Determine the state of stress at point B and show the results on a differential volume element located at this point Determine the shear stress (T.xy) B? 16.2 MPa O 0.509 MPa -0.679 (MPa Figure 2 200 mm Y 200 mm AB 1200 N* 1200 N 800 N The bar has a diameter of 40 mm. Determine the state of stress at point B and show the results on a...

  • The 1.25" diameter steel rod is subjected to the load shown. Determine the state of stress...

    The 1.25" diameter steel rod is subjected to the load shown. Determine the state of stress at point D (located at the top of the rod and on the z-axis), determine the associated strains. Let F = 12 lb and 0 = 45°. The force F is acting in a plane parallel to the x-y plane. Shear modulus of elasticity: G = 11.2 x 106 psi Young's modulus: E = 29.0 x 106 psi 1.25 in 3 in.

  • Problem 8.56 Review Part A The 1.14-in.-diameter rod in (Figure 1) is subjected to the loads...

    Problem 8.56 Review Part A The 1.14-in.-diameter rod in (Figure 1) is subjected to the loads shown. Determine the state of stress at point B Express your answers, separated by commas, to three igure K1 of1 > Submit 200 lb in 300 lb Provide Feedback 1200 lb 3 in. O Type here to search n.

  • The 0.89-in.-diameter rod in (Figure 1) is subjected to the loads shown. Figure 1 of 1...

    The 0.89-in.-diameter rod in (Figure 1) is subjected to the loads shown. Figure 1 of 1 > 200 lb 300 lb 1200 lb - Part A Determine the state of stress at point B. Express your answers, separated by commas, to three significant figures. ΤΟΙ ΑΣΦvec ? B=, (Tzy)=, (Tx2)B ksi (C), ksi, ksi Submit Previous Answers Request Answer * Incorrect: Try Again; 7 attempts remaining < Return to Assignment Provide Feedback

  • Question 1 [Stress analysis and transformation] (10 Marks) The solid rod shown in the figure has...

    Question 1 [Stress analysis and transformation] (10 Marks) The solid rod shown in the figure has a radius of 0.75 cm. If it is subjected to the combined loading shown, (a) determine the state of stress at point A, (6 marks) (b) show the results on a stress element located at point A, (1 mark), and (c) determine the principal stresses acting at point A. (3 marks) teainsew 80XI N ketteisih 14 cm 500 N

  • For the pipe assembly shown below, a) determine the internal loads in section a-a b) identify...

    For the pipe assembly shown below, a) determine the internal loads in section a-a b) identify the types of loads (axial, bending, torsion, etc...) c) determine the state of stress at point A d) show the results in a differential volumetric element at A. 400 mm 200 mm 1500 N 20 mm 1000 N Section a-a

  • A L-Shaped solid bar of 50-mm diameter is subjected to a 13 kN force as shown below

     A L-Shaped solid bar of 50-mm diameter is subjected to a 13 kN force as shown below. At point H (a)Determine the state of stresses and show the results on a stress-element. (b)Determine the Principal stresses, the principal planes and the maximum shear stress
