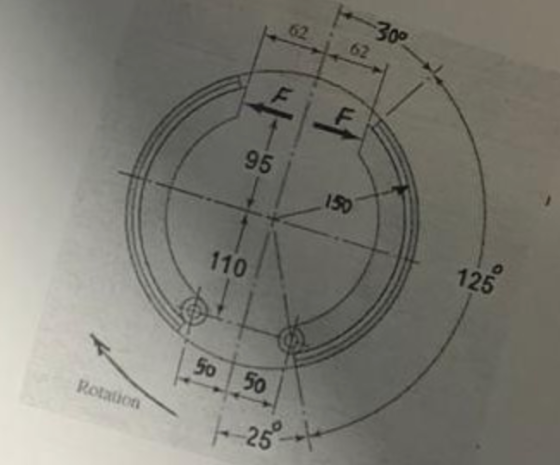

The brake, shown in figure below, is 300 mm in diameter and is actuated by a mechanism that exerts the same force F on each shoe
The brake, shown in figure below, is 300 mm in diameter and is actuated by a mechanism that exerts the same force F on each shoe. The shoes are identical an have a face width of 30 mm. The lining is a of ceramic type having a coefficient friction of 0.35 and a pressure limitation of 1.1 MPa. Find the following:
(a) Actuating force F.
(b) Braking torque capacity
Homework Answers
Add Answer to:
The brake, shown in figure below, is 300 mm in diameter and is actuated by a mechanism that exerts the same force F on each shoe
The double internal long shoe drum brake as shown in Figure 3 has a shoe outer diameter 420 mm and shoe width of 65 mm
Figure 3: Double internal long shoe drum brake The double internal long shoe drum brake as shown in Figure 3 has a shoe outer diameter 420 mm and shoe width of 65 mm. Each shoe is actuated by a force of 4500N. The coefficient of friction for the brake lining is 0.30. Find the magnitude of the maximum pressure and the braking torque.
A double external long shoe drum brake is illustrated inFigure 10.37 . The face width...
A double external long shoe drum brake is illustrated in
Figure 10.37 . The face width of the shoes is 50 mm and the maximum
permissible lining pressure is 1 MPa . If the coefficient of
friction is 0.32 determine the limiting actuating force and the
torque capacity .
The figure shows an internal rim type brake having an inside rim diameter of 12 in and a dimension R = 5 in
The figure shows an internal rim type brake having an inside rim diameter of 12 in and a dimension R = 5 in. The shoes have a face width of 1.5 in and are both actuated by a force of 500 lbf. The mean coefficient of friction is 0.28. a) Find the maximum pressure and indicate the shoe on which it occurs b) Estimate the braking torque effected by each shoe, and find the total braking torque c) Estimate the resulting hinge-pin reaction
The figure shows a 400-mmidiameter brake drum with four internally expanding shoes. Vach of the hinge...
The figure shows a 400-mmidiameter brake drum with four internally expanding shoes. Vach of the hinge pins 4 and 8 sapports a pair of shoes. The sctuating mechanism is to be aranged to produce the same force F on each shoe. The face width of the shoes is 75 mm The material unel permits a coefficient of friction of 0.24 and a maximum pressure of 100o kPa.) (a) Determine the actuating force. (b) Estimate the brake capacity (c) Notingg that...
In the brake shown in Figure 10.7, the coefficient of friction between the brake shoe and...
In the brake shown in Figure 10.7, the coefficient of friction
between the brake shoe and the drum is 0.45. Find the smallest
value of force F required to prevent rotation of the drum against
an applied torque of 75 N.m.
10.8 In the brake shown in Figure 10.7, the coefficient of friction between the brake shoe an the drum is 0.45. Find the smallest value of force F required to prevent rotation of the drum against an applied torque...
Problem#2 16-3 In the figure for Prob. 16-1, the inside rim diameter is 11 in and...
Problem#2 16-3 In the figure for Prob. 16-1, the inside rim diameter is 11 in and the dimension R is 3.5 in. The shoes have a face width of 1.25 in. Find the braking torque and the maximum pressure for each shoe if the actuating force is 225 lbf, the drum rotation is counterclockwise, and f 0.30.
The symmetric brake shown in the figure has a width of 30 mm with a mean friction coefficient of 0.25. Note that L 150 mm 1 = , L 200 mm 2 = , L 200 mm 3 = and radius of the drum is 150 mm. For an...
The symmetric brake shown in the figure has a width of
30 mm with a mean friction coefficient of 0.25.
Note that
L 150 mm 1
= , L 200 mm 2
= , L 200 mm 3
=
and radius of the drum is 150 mm. For an estimated
actuating force of F=500 N for each brake, determine:
a) The maximum pressure on each shoe
b) The total brake
torque capacity
c) Comment on the self – energizing behavior...
Question 1 [25 marks] Figure 1 shows a brake drum 325 mm internal diameter, acted on...
Question 1 [25 marks] Figure 1 shows a brake drum 325 mm internal diameter, acted on by two brake shoes which are mounted on a pin A, and pushed apart by two hydraulically operated pistons at B, each exerting a force of P on the shoe on which it makes contact. The blocks are centred on the horizontal centre line as shown in the figure. The coefficient of friction is 0.25. Find the value of P to produce a brake...
6. The following band brake system as shown in figure 6, has the braking capacity of...
6. The following band brake system as shown in figure 6, has the braking capacity of 180 Nm when the drum is rotating in clockwise direction. The coefficient of friction between the drum and the band is 0.2. Determine (a) The value and the position of the maximum pressure in the band (b) The value of acting force F (c) Calculate the braking capacity of this system if the drum is rotating in counter clockwise direction and the maximum band...
Need answer asap thankyou A hydraulically operated disk brake (as shown in Figure 18.4) uses a double calliper. Each half has 65 mm diameter round pad on each side of the disk. The centre of contact...
Need answer asap thankyou
A hydraulically operated disk brake (as shown in Figure 18.4) uses a double calliper. Each half has 65 mm diameter round pad on each side of the disk. The centre of contact of each of the four pads is at a radius of 104 mm. The outside diameter of the disk is 320mm and the disk has a woven ining that provides a friction coefficient of 0.4. The average pressure on the pads is to be...
A double external long shoe drum brake is illustrated in
Figure 10.37 . The face width of the shoes is 50 mm and the maximum
permissible lining pressure is 1 MPa . If the coefficient of
friction is 0.32 determine the limiting actuating force and the
torque capacity .
The figure shows a 400-mmidiameter brake drum with four internally expanding shoes. Vach of the hinge pins 4 and 8 sapports a pair of shoes. The sctuating mechanism is to be aranged to produce the same force F on each shoe. The face width of the shoes is 75 mm The material unel permits a coefficient of friction of 0.24 and a maximum pressure of 100o kPa.) (a) Determine the actuating force. (b) Estimate the brake capacity (c) Notingg that...
In the brake shown in Figure 10.7, the coefficient of friction
between the brake shoe and the drum is 0.45. Find the smallest
value of force F required to prevent rotation of the drum against
an applied torque of 75 N.m.
10.8 In the brake shown in Figure 10.7, the coefficient of friction between the brake shoe an the drum is 0.45. Find the smallest value of force F required to prevent rotation of the drum against an applied torque...
Problem#2 16-3 In the figure for Prob. 16-1, the inside rim diameter is 11 in and the dimension R is 3.5 in. The shoes have a face width of 1.25 in. Find the braking torque and the maximum pressure for each shoe if the actuating force is 225 lbf, the drum rotation is counterclockwise, and f 0.30.
The symmetric brake shown in the figure has a width of
30 mm with a mean friction coefficient of 0.25.
Note that
L 150 mm 1
= , L 200 mm 2
= , L 200 mm 3
=
and radius of the drum is 150 mm. For an estimated
actuating force of F=500 N for each brake, determine:
a) The maximum pressure on each shoe
b) The total brake
torque capacity
c) Comment on the self – energizing behavior...
Question 1 [25 marks] Figure 1 shows a brake drum 325 mm internal diameter, acted on by two brake shoes which are mounted on a pin A, and pushed apart by two hydraulically operated pistons at B, each exerting a force of P on the shoe on which it makes contact. The blocks are centred on the horizontal centre line as shown in the figure. The coefficient of friction is 0.25. Find the value of P to produce a brake...
6. The following band brake system as shown in figure 6, has the braking capacity of 180 Nm when the drum is rotating in clockwise direction. The coefficient of friction between the drum and the band is 0.2. Determine (a) The value and the position of the maximum pressure in the band (b) The value of acting force F (c) Calculate the braking capacity of this system if the drum is rotating in counter clockwise direction and the maximum band...
Need answer asap thankyou
A hydraulically operated disk brake (as shown in Figure 18.4) uses a double calliper. Each half has 65 mm diameter round pad on each side of the disk. The centre of contact of each of the four pads is at a radius of 104 mm. The outside diameter of the disk is 320mm and the disk has a woven ining that provides a friction coefficient of 0.4. The average pressure on the pads is to be...
