Determine the equations of the elastic curve for the beam using the x1 and x3 coordinates.

Question

Question

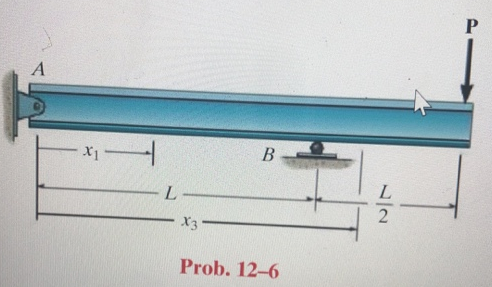

Determine the equations of the elastic curve for the beam using the x1 and x3 coordinates. Specify the beam's maximum deflection. EI is constant.

engineering Mechanical-Engineering

Answer 1

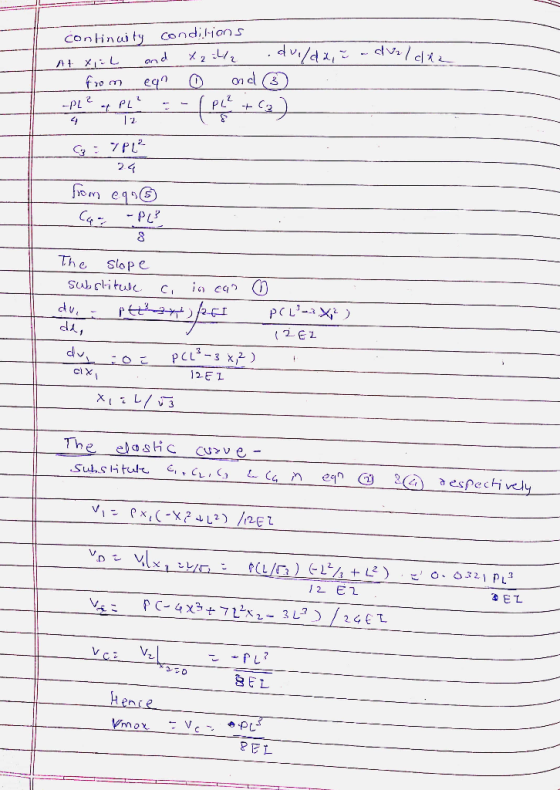

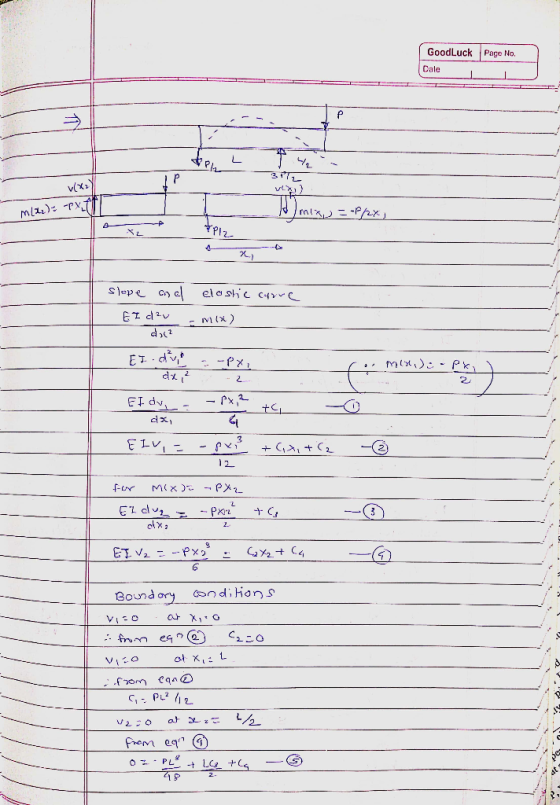

Answer #1

Answer 2

Similar Homework Help Questions

Problem 5: Determine the equations of the elastic curve, v(x), for the beam using the xi...

Problem 5: Determine the equations of the elastic curve, v(x), for the beam using the xi and x2 coordinates Specify the beam's maximum deflection. El is constant. x1 2 2a
Question (50 pts Determine the elastic curve equation of the elastic curve for the beam using...

Question (50 pts Determine the elastic curve equation of the elastic curve for the beam using the x1 and x2 coordinates specify the slope at A and the maximum deflection. Use TWO METHODS. EI is constant. R12-4
double integration method Q2 Determine the equations of the elastic curve using the coordinates x, and...

double integration method Q2 Determine the equations of the elastic curve using the coordinates x, and x2, specify the slope and deflection at B. EI is constant. W To A B -X147 a - X2 |--X3 L

QUESTION 2, Determine the equations of the elastic curve using the coordinates the x1 and X2,...

QUESTION 2, Determine the equations of the elastic curve using the coordinates the x1 and X2, specify the slope and deflection at B. El is constant w A B a X2 L o
3. (25%) Determine the equations of elastic curve for the cantilever beam of bending rigidity El...

3. (25%) Determine the equations of elastic curve for the cantilever beam of bending rigidity El using the coordinates X1 and x3, and find the slope and deflection at the free end B. B 3. (25%) Determine the equations of elastic curve for the cantilever beam of bending rigidity El using the coordinates X1 and x3, and find the slope and deflection at the free end B. B
Problem 12.17 (Fiet) Part A Determine the equations of the elastic curve for the beam using...

Problem 12.17 (Fiet) Part A Determine the equations of the elastic curve for the beam using them and my coordinates 7 is constant Express your answer as an expression in terms of the variables P. 2.). L, and El and any necessary constants. 190 AED vec ? , Figure 1 of 1 Submit Request Answer Part 8 Specify the beam's maximum deflection El is constant Express your answer as an expression in terms of the variables P. L and El...

Q2: (12-4) Determine the equation of the elastic curve for the beam using the x coordinate that i...

Q2: (12-4) Determine the equation of the elastic curve for the beam using the x coordinate that is valid for osx< L/2. Specify the slope at A and the beam's maximum deflection. El is constant. Q2: (12-4) Determine the equation of the elastic curve for the beam using the x coordinate that is valid for osx
Also 5) Determine the elastic curve for the cantilevered beam using the x coordinate. compute the...

Also 5) Determine the elastic curve for the cantilevered beam using the x coordinate. compute the maximum slope and deflection. El is constant. 0
the EI F8-8. Determine the equation of the elastic curve for the beam using the x...

the EI F8-8. Determine the equation of the elastic curve for the beam using the x coordinate that is valid for 0 <x < L. EI is constant F8-8

1. Determine the equations for displacement of the beam under the loading conditions shown as a function of x, L, E, I, and P. Specify the beam's maximum deflection. Assume x<L 1. Det...

1. Determine the equations for displacement of the beam under the loading conditions shown as a function of x, L, E, I, and P. Specify the beam's maximum deflection. Assume x<L 1. Determine the equations for displacement of the beam under the loading conditions shown as a function of x, L, E, I, and P. Specify the beam's maximum deflection. Assume x
